FreeMASTER运行时调试工具

滚动图片以放大

框图

选择框图:

桌面版FreeMASTER连接选项框图

Connectivity Options for Desktop FreeMASTER Block Diagram

FreeMASTER Lite连接选项框图

Connectivity Options for FreeMASTER Lite Block Diagram

汽车通用框图

 Automotive General Block Diagram

特性

实时数据监测

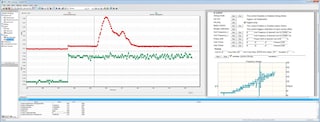

  • 实时示波器/波形,同时具有上升/下降沿触发器
  • 多通道高速数据记录(板载存储器示波器)

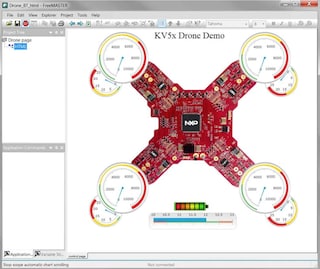

  • 用户定义的仪表板,用于数据显示
  • 仪表、滑块和按钮小工具
  • 文本(名称、值、最小值、最大值和枚举标签等)
  • 易于合并图形图像

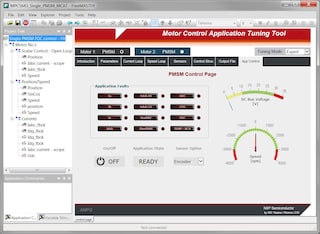

控制面板

  • 通过监视对话框直接设置变量值
  • 变量值的时间表驱动
  • 用户命令/消息控制
  • JavaScript的HTML表单(带按钮、指示灯和滑块)或自定义HTML5小工具
  • 由Excel、MATLAB或其它支持通过ActiveX嵌入或JSON-RPC协议编写脚本的外部应用控制
  • Microsoft Edge WebView2浏览器组件,可用于呈现仪表板和其它嵌入在FreeMASTER主应用窗口运行的控制应用

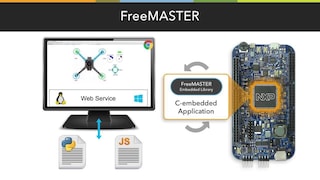

主机通信选项

  • UART、USB/CDC串行通信外设
  • CAN通信
  • TCP和UDP网络通信
  • SWD/JTAG调试连接
  • Segger RTT高速JTAG通信

开发平台整合

  • MCUXpresso SDK和MCUXpresso配置工具
  • 与MCUXpresso IDE和MCUXpresso for Visual Studio Code兼容
  • Node-RED framework  ,用于图形化编程
  • GUI Guider设计工具集成,快速设计人机界面

支持的器件

系统需求

下载

快速参考恩智浦 软件类型.

1-5 / 10 下载

  • BSP及设备驱动

    FreeMASTER Communication Driver 3.0 for S32M2

  • 调试及视觉化工具

    FreeMASTER tool 3.2 (includes Lite 1.3) – Windows installer亮点

    请登录
  • 开发IDE和生成工具

    FreeMASTER Lite 1.3 – Windows and Linux Installer

  • HMI设计软件

    Host IO Driver for FreeMaster GUI

    请登录
  • 样品及快速入门软件

    FreeMASTER Communication Driver 3.0 for i.MX, LPC, Kinetis and DSC亮点

展开

注意: 推荐在电脑端下载软件,体验更佳。
