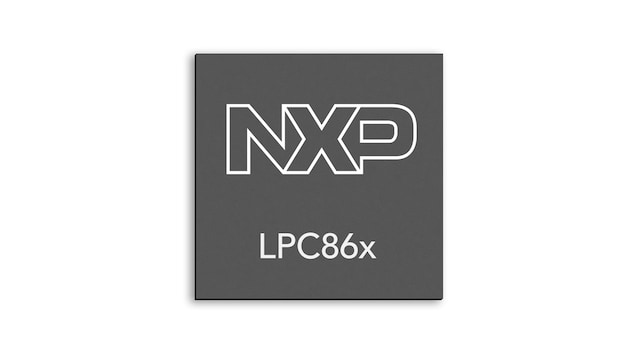

LPC860: 基于Arm® Cortex®-M0+的低成本32位MCU，带有一个I3C接口

LPC86X
正常供应

滚动图片以放大

LPC860是一款基于Arm Cortex-M0+的低成本32位MCU，专为工业和物联网应用设计。LPC860工作频率高达60MHz，提供64KB Flash存储器和8KB SRAM。该系列配备功耗优化的内核，采用流行的小规格封装，单独的电源轨可支持电平移动。

LPC860的配套外设包括一个CRC引擎、I2C总线接口、I3C总线接口、多达三个USART、两个SPI接口、一个多速率定时器、自唤醒定时器、两个具有硬件死区时间插入和正交解码的FlexTimer、一个12位ADC、一个模拟比较器、功能可通过开关矩阵配置的I/O端口、一个输入模式匹配引擎和多达54个通用I/O引脚。

LPC860受到MCUXpresso生态系统的支持，其中包括SDK、IDE选项以及安全配置和配置工具，可帮助加快开发速度。

产品详情

框图

LPC86xMCU

LPC86x MCUs
获取框图PDF

特性

系统

  • Arm Cortex-M0+ 处理器(版本 r0p1)，运行时频率高达60MHz，集成了单周期乘法器和快速单周期 I/O 端口
  • Arm Cortex-M0+内置可嵌套矢量中断控制器(NVIC)
  • 系统节拍定时器
  • AHB多层矩阵
  • 带四个断点和两个观察点的串行线调试(SWD)

存储器

  • 64kB Flash，最小分配单元64B，适用于模拟EEPROM
  • 8 kB RAM(面向跨所有SRAM位段操作逻辑)

在将FRO用作时钟源的低电流模式下具备卓越的功率效率。

  • 自由运行振荡器 (FRO)
  • 4种电源模式
  • 面向简单运行时功耗优化的电源配置API

FAIM用于在启动时配置部件

  • 引脚配置包括方向和上拉或下拉
  • 面向低功耗启动的时钟和PMU

从基础到高级的全范围定时功能

  • FlexTimer，共有10个通道。硬件死区时间插入和正交解码，用于电机控制
  • 多速率定时器(MRT)，能够以多达4种可编程固定速率生成重复中断
  • 自唤醒定时器(WKT)，采用自由运行振荡器 (FRO)，低功耗、低频率内部振荡器，或外部时钟输入作为时钟输入
  • 窗口化看门狗定时器(WWDT)

Accurate 1.9-Msps ADC: 12 ch, 12-bit

  • 非常适合过采样，用于改进转换精度
  • 灵活的触发器，用于优化功耗使用

更多串行连接

  • 1个I3C(支持>10MHz)，与I²C兼容
  • 1个I²C
  • 2 x SPI, 3 x UART
  • 54 GPIO，带有开关矩阵，支持输入模式匹配引擎

更多

购买/参数

3 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

运行频率[最高]（MHz）

Flash (kB)

RAM (kB)

Serial Communication

ADC

ADC通道

ADC位数

FlexTimer

GPIO

输入电压[最小到最大]（V）

PWM

封装类型

LPC865M201JBD64
数据手册

正常供应

10K @ CNY7.68

60

64

8

1 x I3C, 1 x I²C, 2 x SPI, 3 x UART

1.9 Msps

12

12

2

54

1.8 to 3.6

10

LQFP64

LPC865M201JHI33
数据手册

正常供应

10K @ CNY5.82

60

64

8

1 x I3C, 1 x I²C, 2 x SPI, 3 x UART

1.9 Msps

12

12

2

29

1.8 to 3.6

10

HVQFN32

LPC865M201JHI48
数据手册

正常供应

10K @ CNY6.53

60

64

8

1 x I3C, 1 x I²C, 2 x SPI, 3 x UART

1.9 Msps

12

12

2

42

1.8 to 3.6

10

HVQFN48
