采用MC56F8xxxx的LLC谐振转换器设计[DRM172]
紧凑列表

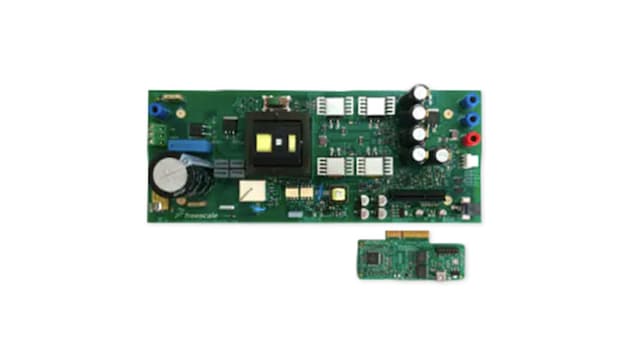

LLC Resonant Converter with Sync Rectifier
This reference design demonstrates the implementation of a LLC resonant converter using MC56F83783, MC56F81xxx or MC56F82748 digital signal controllers (DSC).
产品详情
支持的器件
处理器和微控制器
32位56F8xxxx系列
- MC56F81xxx: 高达100MHz的数字信号控制器，带DSASS和运算放大器
- MC56F83xxx: 性能级数字信号控制器, USB FS OTG, CAN-FD
Features
- Flash updating
- 12 V/240 W output with universal mains input
- 120mVp-p output ripple; Overshoot < 5%@0 to 65% load step; Hold up time 20ms@50% load, 15ms@100% load
- Over-current, over-/under-voltage, voltage brown-in, over-temperature, power limit protection functions
- Modular software and hardware design for convenient internal reuse and customer evaluation
-
Components
- Half-bridge LLC with synchronous rectifier
-
Interfaces
- Isolated USB interface for FreeMASTER connection
- Isolated SCI communication between primary side and secondary side; IIC interface is reserved for PMBus communication
设计资源
软件
快速参考恩智浦 软件类型.
5 软件文件
-
调试及视觉化工具
电机控制应用优化(MCAT)工具
-
调试及视觉化工具
FreeMASTER运行时调试工具
-
开发IDE和生成工具
DSC快速初始化和开发工具
