S32K324三相永磁同步电机控制(PMSM)参考设计板

MCTPTX1AK324

滚动图片以放大

MCTPTX1AK324是一款参考设计板，专为开箱即用的汽车多永磁同步电机(PMSM)而设计，适用于电动泵、电动动力、eTurbo或热管理系统控制器应用。

MCTPTX1AK324基于32位Arm® Cortex®-M7 S32K3 微控制器和GD3000 预驱动器，在低CPU负载下控制三个无传感器的永磁同步电机、一个直流(DC)电机和四个阀门。

汽车厂商、供应商和软件生态体系合作伙伴可以直接使用MCTPTX1AK324来加快开发速度，加速产品面市。

框图

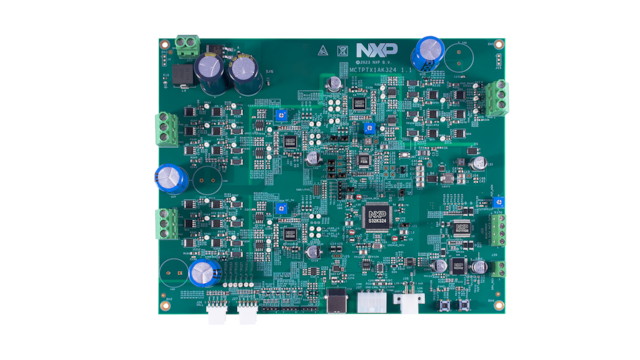

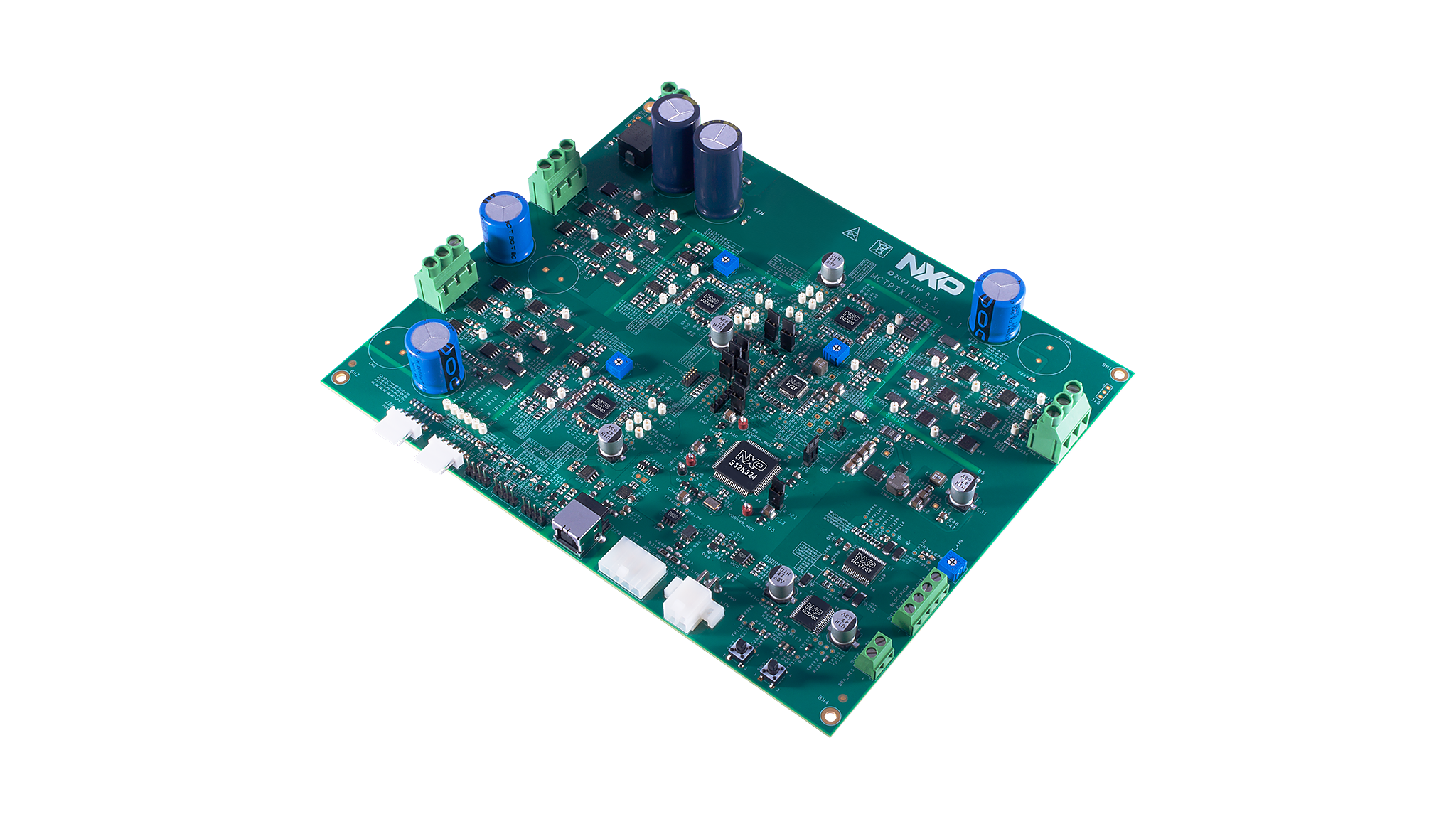

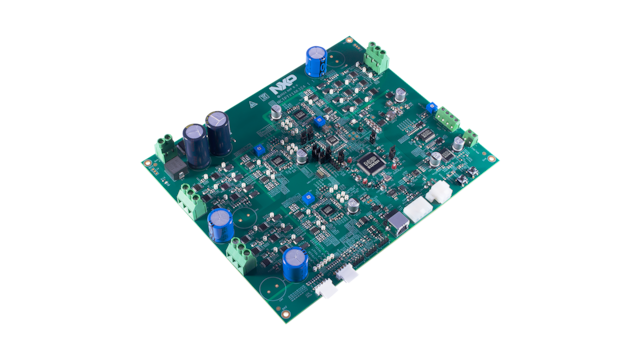

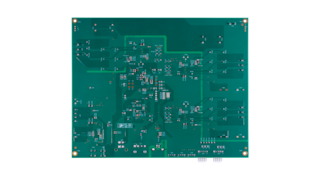

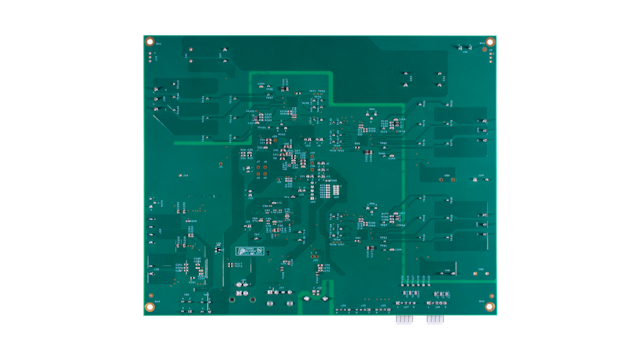

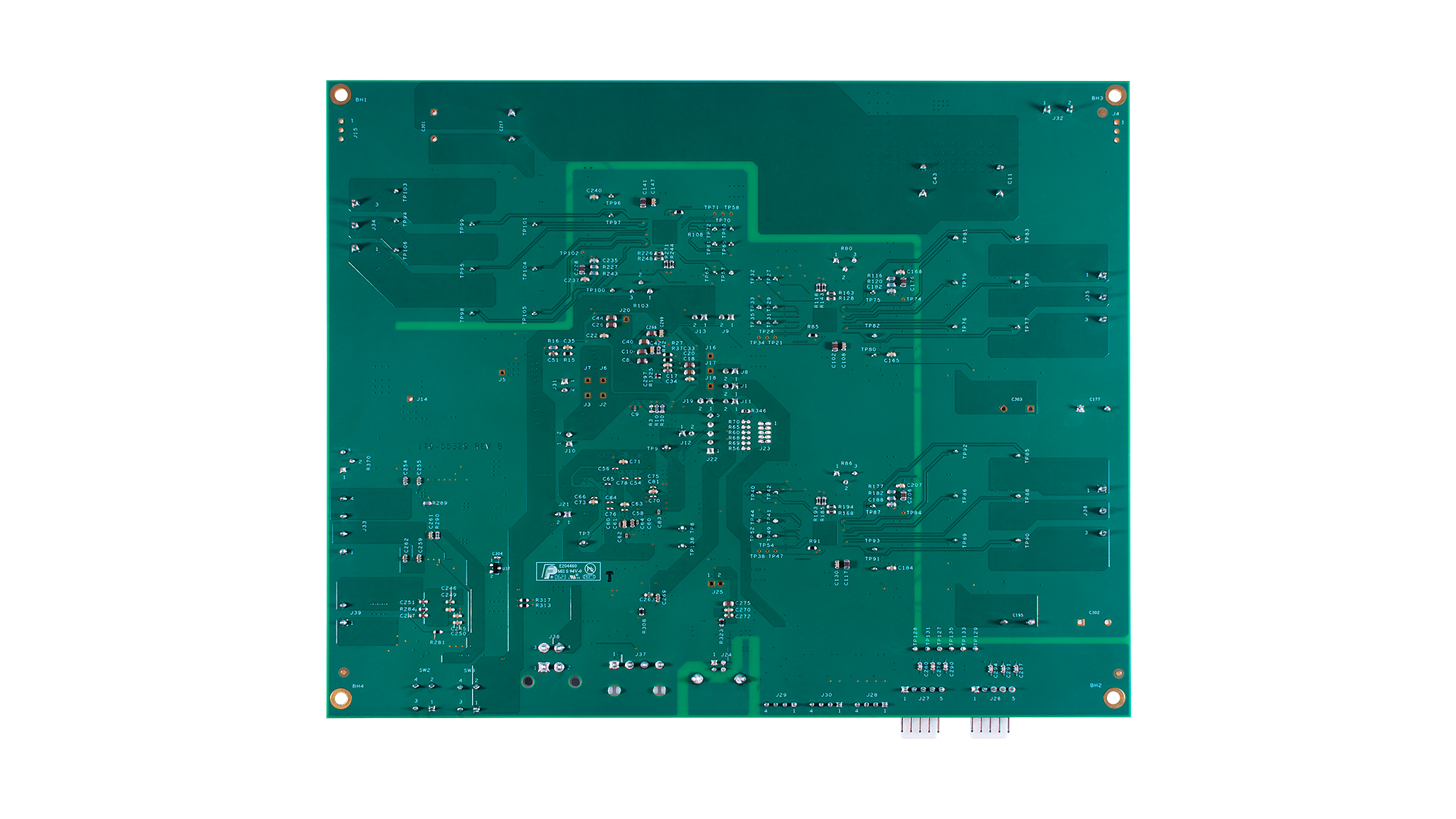

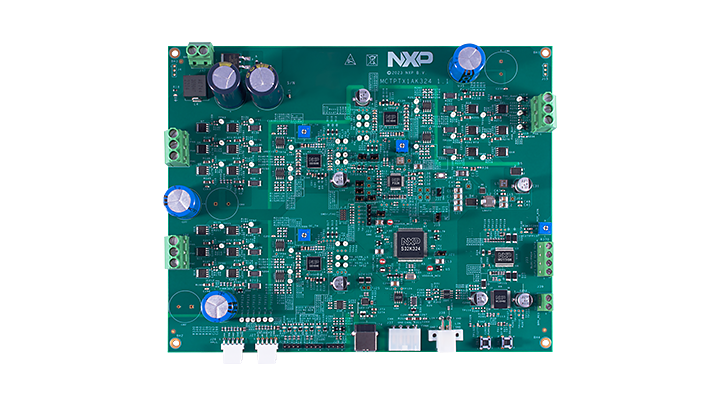

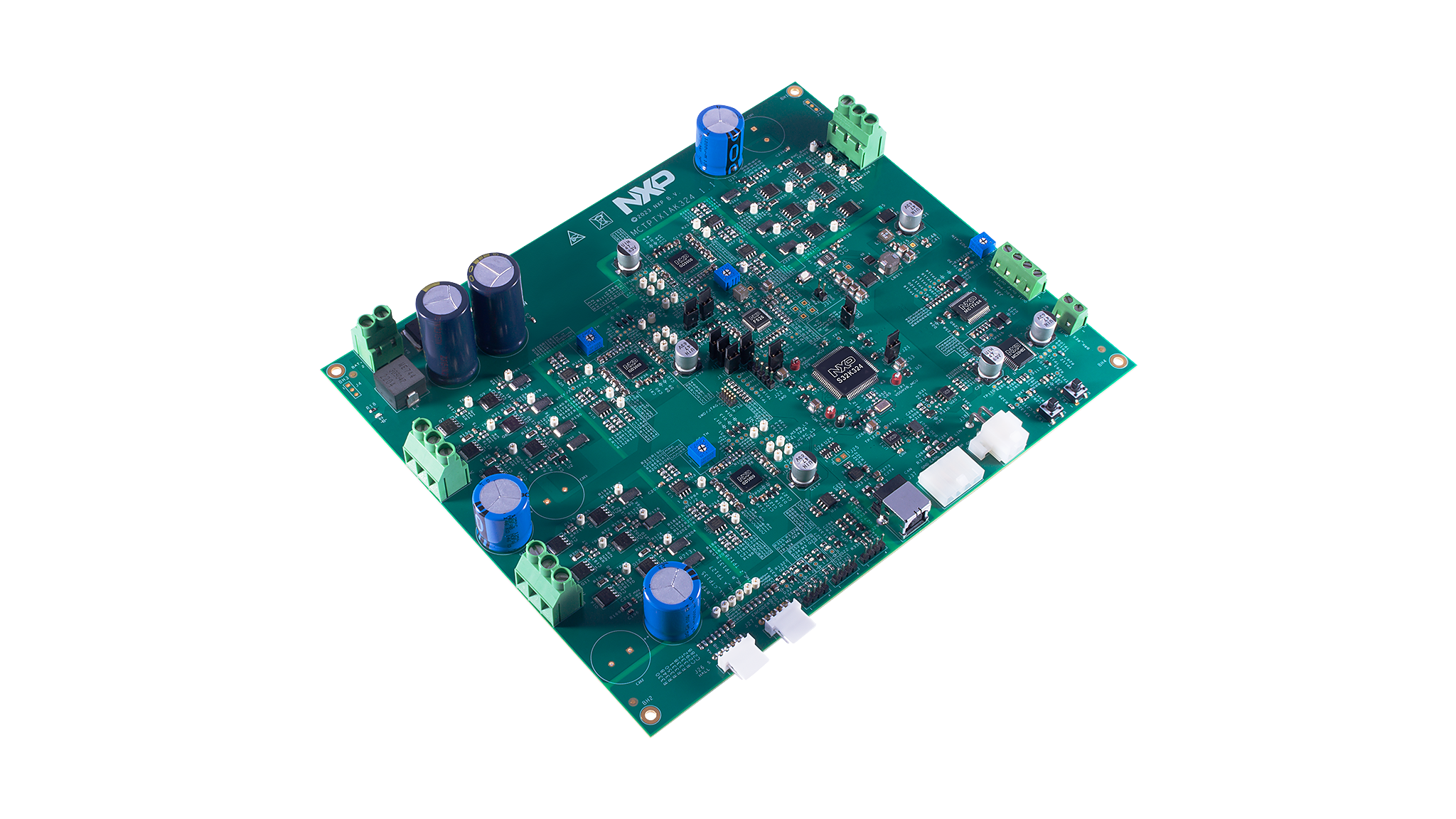

MCTPTX1AK324参考设计板

MCTPTX1AK324 Reference Design Board
获取框图PDF

支持的器件

电源管理

BLDC，H桥，步进电机

  • HB2001: SPI可编程10A H桥有刷直流电机驱动器
  • GD3000: 3相无刷电机预驱动器

高边开关

  • MC12XS6: 外部汽车照明多通道eXtreme开关

安全SBC

  • FS26: 功能安全系统基础芯片，低功耗，面向ASIL D系统

接口

汽车LIN解决方案

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

3.3V/5V IO CAN收发器

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

处理器和微控制器

S32K汽车通用MCU

  • S32K3: S32K3汽车通用微控制器

特性

硬件特性

  • 支持高达三个永磁同步电机无传感器磁场定向控制(FOC)
  • 每个PMSM功率高达100W
  • 直流电机功率高达20W
  • 高边开关的峰值电流最高可达5A
  • 单向CAN和单向LIN
  • 双核运行模式，降低CPU负载
  • 支持ISO26262标准

购买选项

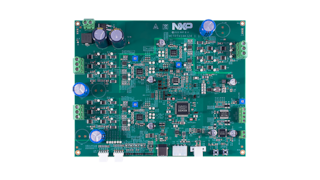

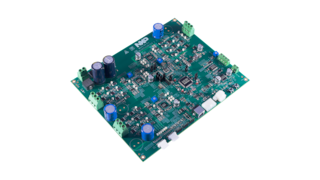

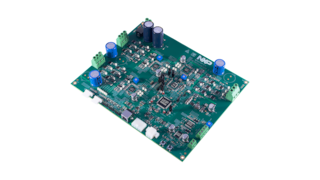

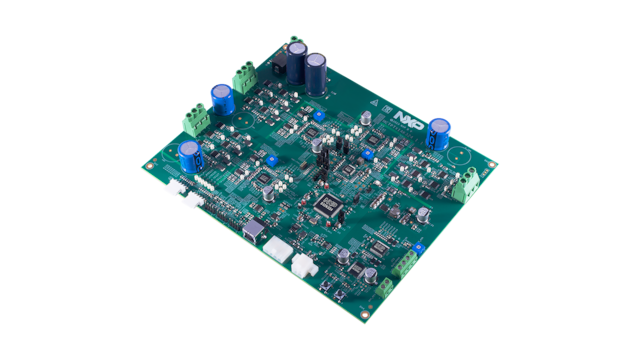

MCTPTX1AK324-Image

点击展开

  • MCTPTX1AK324
    正常供应

  • MCTPTX1AK324 Reference Design Board.

  • 套件内含物

    • S32K324三相永磁同步电机控制参考设计板
  • $495.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 6
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
