MC56F8006 and MCF56F8002 Digital Signal Controllers

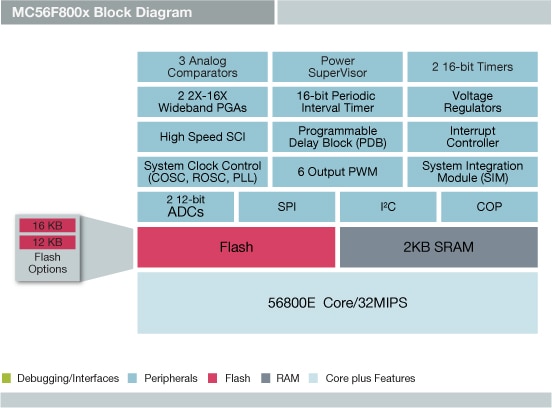

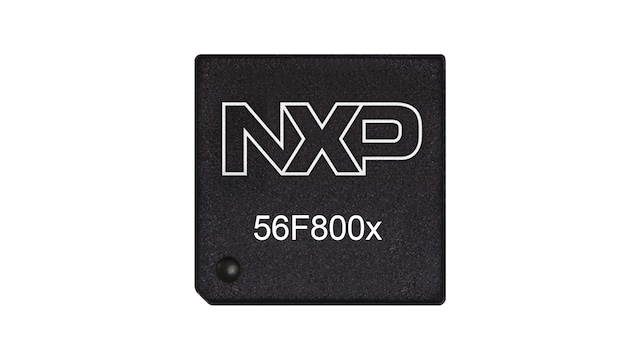

The NXP® MC56F800x family of digital signal controllers (DSCs) offer the functionality of a microcontroller with a flexible set of peripherals. The entry-level MC56F8006 and MCF56F8002 DSCs provide cost-effective solutions for mathematically intensive, power-sensitive, real-time control applications.
- Integrated peripheral set improves performance while reducing external component count and overall costs
- Includes sophisticated power management features
- Allows for straightforward generation of efficient, compact DSP and control code
- Cost-effective development tools simplify and accelerate time-to-market
产品详情
Features
- Single-cycle 16 × 16-bit parallel multiply-accumulate module (MAC)
- Four 36-bit accumulators, including extension bits
- Two 2x-16x PGAs (programmable gain amplifiers)
- Three analog comparators
- Two 12-bit (ADCs)
- Six output pulse width modulation with programmable fault capability
- Two 16-bit timers, one 16-bit periodic interval timer, programmable delay timer
- Ultra-low-power operation (nine different power modes)
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
目标应用
- Consumer
- Refrigerators
- Room Air Conditioning System
- Cooking Products
- Dishwashers
- Industrial
- Off-Grid Solar Power Inverters
- Commercial Solar Power Inverters
- Residential Solar Power Inverters
- Ambient Lighting Control
- Power Supply
- Instrumentation
- Medical/Healthcare
- Hearing Aids
- Ultrasound
- Motor Control
- Brushless DC (BLDC) Motor
- Switched Reluctance Motor
- Stepper Motor
- Permanent Magnet Synchronous Motor
- 3-Phase AC Induction Motor
- 1-Phase AC Induction Motor
Consumer
- Refrigerators
- Room Air Conditioning System
- Cooking Products
- Dishwashers
Industrial
- Off-Grid Solar Power Inverters
- Commercial Solar Power Inverters
- Residential Solar Power Inverters
- Ambient Lighting Control
- Power Supply
- Instrumentation
Medical/Healthcare
- Hearing Aids
- Ultrasound
Motor Control
- Brushless DC (BLDC) Motor
- Switched Reluctance Motor
- Stepper Motor
- Permanent Magnet Synchronous Motor
- 3-Phase AC Induction Motor
- 1-Phase AC Induction Motor
相关产品
购买/参数
| | | | | |
|---|---|---|---|---|---|
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
文档
快速参考恩智浦 文档类别.
1-10 / 37 文件
紧凑列表
产品变更通知 (2)
产品简介 (1)
勘误表 (2)
参考手册 (3)
-
DSP56800E and DSP56800EX - Reference Manual[DSP56800ERM]亮点
-
MC56F8006 / MC56F8002 - Reference Manual[MC56F8006RM]亮点
工程设计要点 (2)
-
EB813SW[EB813SW]
1-10 / 37 文件
紧凑列表
产品变更通知 (2)
产品简介 (1)
勘误表 (2)
参考手册 (3)
-
DSP56800E and DSP56800EX - Reference Manual[DSP56800ERM]亮点
-
MC56F8006 / MC56F8002 - Reference Manual[MC56F8006RM]亮点
工程设计要点 (2)
-
EB813SW[EB813SW]
应用笔记 (16)
-
将MC56F827xx DSC的子例程重定位到PRAM[AN5143]
应用笔记软件 (3)
-
Software file for AN5143[AN5143SW]
-
Software for AN3815[AN3815SW]
-
Software for AN3814[AN3814SW]
数据手册 (1)
用户指南 (6)
-
56800Ex_MLIB, Math Library User’s Guide[56800EX_MLIB]
-
56800Ex_GFLIB, General Functions Library User’s Guide[56800EX_GFLIB]
-
56800Ex_MCLIB, Motor Control Library User’s Guide[56800EX_MCLIB]
-
56800Ex_ACLIB, Advanced Control Library User's Guide[56800EX_ACLIB]
-
56800Ex_GDFLIB, General Digital Filters Library User's Guide[56800EX_GDFLIB]
-
MC56F8006DEMO User Guide[MC56F8006DEMOUG]
简介 (1)
-
MC56F8006/2 Fact Sheet[MC56F8006FS]亮点
设计资源
硬件
快速参考恩智浦
板类型.
1-5 / 7 硬件
-

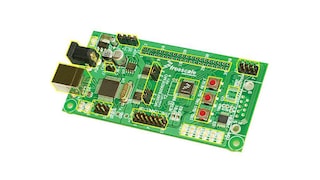

评估板和开发板MC56F8006数字信号控制器的演示板亮点
正常供应 -
仿真器、探测器、编程器Universal Multilink开发接口
正常供应 -
仿真器、探测器、编程器PEmicro Cyclone编程器
正常供应 -
其他可用硬件. 查看我们的精选合作伙伴解决方案.
-
仿真器、探测器、编程器PEmicro Cyclone FX编程器
-
仿真器、探测器、编程器面向ONCE DSC的USB TAP
正常供应
