32-bit Microcontrollers
- 建议不要在新设计中使用本页介绍的产品。
The advanced Power Architecture® MPC533 32-bit embedded microcontroller from NXP® is a solution for complex, real-time control applications that demand consistent, reliable performance in a wide range of environments.
This advanced microcontroller is ideal for cost-sensitive applications that are computationally intensive (not I/O intensive) such as building control/security, health care monitoring equipment or manufacturing production. The MPC533 comes with a reduced peripheral set together with the performance of the 40 MHz Power Architecture core, floating point unit and 512 KB of flash memory, all for less money.
The MPC533 leverages a wide range of development tools and support software already available for this computing platform, thereby minimizing development time.
NXP also offers a multi-output power supply device, the MC33394, which provides the voltage levels and sequencing necessary to allow plug-and-play use of the MPC500 family.
产品详情

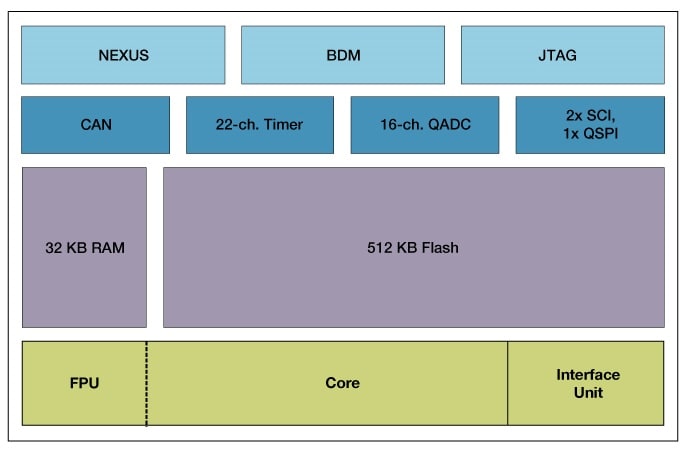

Features
- 512 KB of flash
- 32 KB static RAM (CALRAM)
- Precise exception model
- Floating point
- Extensive system development support
- On-chip watchpoints and breakpoints
- Background debug mode (BDM)
- IEEE®-ISTO 5001-1999 NEXUS class 3 debug interface
- True 5-volt I/O
- 22-channel MIOS timer (MIOS14)
- One queued analog-to-digital converter module providing 16 analog channels
- One CAN module (TOUCAN)
- One queued serial module with one queued SPI and two SCIs (QSMCM)
部件编号包含： MPC533CVR40.
购买/参数
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
设计资源
软件
快速参考恩智浦 软件类型.
2 软件文件
-
BSP及设备驱动
General Market C3F Driver for MPC565/566 and MPC563/564
