ColdFire+ Qx系列

MCF51Qx
正常供应

滚动图片以放大

ColdFire®+ MCF51Qx产品组合包含两个系列(QM和QU)，闪存容量从32 KB到128 KB不等，具有创新的FlexMemory、可配置的嵌入式EEPROM。MCF51Qx系列采用5 x 5 mm小型封装，超低功耗，还具有一组丰富的外设，包括高精度16位模数转换器(ADC)、硬件加密、1个创新的触摸传感接口，还有更多其它功能。这些特性使其成为一个高度集成、高性价比的32位微控制器解决方案，适用于消费电子和工业控制应用。ColdFire+ MCF51Qx的两个系列器件的软件和引脚都彼此兼容，并与MCF51JF和MCF51JU系列的软件和引脚兼容，最大限度地提高了代码的再次利用，减少了开发时间和投资。

产品详情

框图

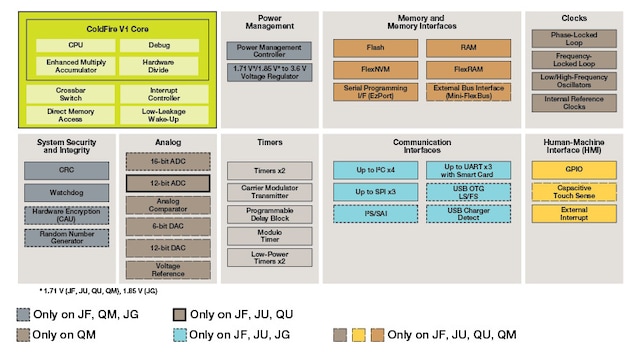

ColdFire MCF51Jx/Qx Block Diagram

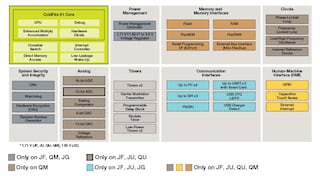

ColdFire MCF51Jx/Qx Block Diagram
获取框图PDF

特征

  • 创新的FlexMemory，可配置的EEPROM
  • 10种灵活的超低功耗模式
  • 16位ADC和12位数模转换器(DAC)，提供灵活且强大的混合信号处理能力
  • 加密加速单元和随机数生成器，用于安全通信
  • 通过低功耗触摸传感接口(TSI)提供集成电容式触摸传感和显示支持
  • 小型封装，专为空间受限的应用而设计
  • 附送MQX软件解决方案
  • 本产品包含在我们的 产品长期供货计划 中，自推出后至少保证10年供货

购买/参数

1-10 / 12 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装端接数

封装类型

预算报价（不含税）

Flash (kB)

RAM (kB)

运行频率[最高]（MHz）

电源电压[最大]（V）

电源电压[最小]（V）

GPIO

Ambient Operating Temperature (Min to Max) (℃)

MCF51QM128VHS
数据手册

正常供应

44

HVQFN44R

10K @ CNY23.41

128

32

50

3.6

1.71

31

-40 to 105

MCF51QM128VLH
数据手册

正常供应

64

LQFP64

10K @ CNY24.84

128

32

50

3.6

1.71

48

-40 to 105

MCF51QM32VFM
数据手册

正常供应

32

HVQFN32

10K @ CNY17.59

32

8

50

3.6

1.71

22

-40 to 105

MCF51QM32VHS
数据手册

正常供应

44

HVQFN44R

10K @ CNY18.52

32

8

50

3.6

1.71

31

-40 to 105

MCF51QM64VHS
数据手册

正常供应

44

HVQFN44R

10K @ CNY21.32

64

16

50

3.6

1.71

31

-40 to 105

MCF51QM64VLF
数据手册

正常供应

48

LQFP48

10K @ CNY21.90

64

16

50

3.6

1.71

35

-40 to 105

MCF51QU128VHS
数据手册

正常供应

44

HVQFN44R

10K @ CNY20.75

128

32

50

3.6

1.71

31

-40 to 105

MCF51QU128VLH
数据手册

正常供应

64

LQFP64

10K @ CNY22.11

128

32

50

3.6

1.71

48

-40 to 105

MCF51QU32VFM
数据手册

正常供应

32

HVQFN32

10K @ CNY12.49

32

8

50

3.6

1.71

22

-40 to 105

MCF51QU32VHS
数据手册

正常供应

44

HVQFN44R

10K @ CNY16.51

32

8

50

3.6

1.71

31

-40 to 105
