超可靠的MPC567xK MCU，适用于汽车和工业雷达应用

MPC567xK 正常供应

MPC567xK系列MCU为高级驾驶员辅助系统(ADAS)应用提供极具吸引力的低成本解决方案。它们能够支持自适应巡航控制、智能大灯控制、车道偏离警告和盲点探测等工业和汽车应用。

  • 采用片上冗余功能，最大限度减少了软件和模块级功能
  • 减少系统组件和降低开发成本

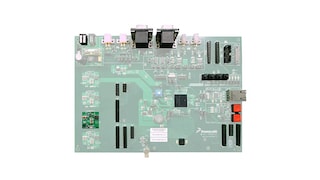

  • 综合开发工具，简化和加速系统设计
  • 属于SafeAssure®计划，帮助制造商达到功能安全标准

框图

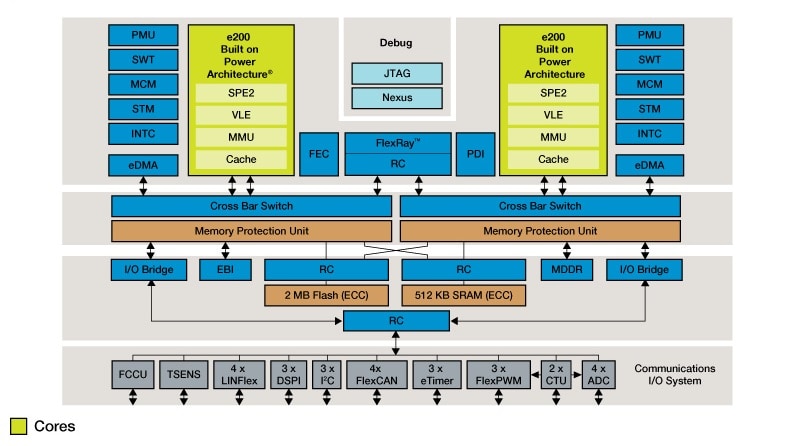

MPC567xK Microcontroller Block Diagram

MPC567xK Microcontroller Block Diagram
获取框图PDF

特征

内核

  • 高性能180 MHz 32位内核基于Power Architecture®技术，提供可变长度编码(VLE)
  • 存储器管理单元(MMU)，带32项全相联的转址旁路缓存(TLB)
  • SPE (信号处理扩展)：DSP、SIMD和浮点运算功能

存储器

  • 最高2 MB闪存，带纠错码(ECC)
  • 4个16 KB EEPROM闪存，带纠错码(ECC)
  • 最高512 KB SRAM，带纠错码(ECC)
  • 带MPU的双交叉开关

I/O

  • 4个FlexCAN (每个有32个消息缓冲区)
  • 1个FlexRay™ (64个消息缓冲区)
  • 1个快速以太网控制器
  • 4个LINFlex (SCI)
  • 3个IIC
  • 3个DSPI
  • 3个flexPWM (3 x 12通道)
  • 3个eTimer (3 x 6通道)
  • 4个ADC (每个11个通道，12位)
  • 两个CTU
  • 外部总线接口(仅从设备)
  • 并行数字接口
  • MDDR接口

购买/参数

4 结果

包含 7 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

Flash (kB)

RAM (kB)

内核类型

内核：内核数量(规范值)

运行频率[最高]（MHz）

SafeAssure 功能安全

I2C

CAN

SCI

DSPI

Ambient Operating Temperature (Min to Max) (℃)

电源电压[最小]（V）

电源电压[最大]（V）

SPC5673KF0VMM1
数据手册

正常供应

LFBGA257

257

10K @ CNY115.96

—

—

—

—

—

Quality Managed

—

—

—

—

—

—

—

SPC5674KF0VMS2
数据手册

正常供应

LFBGA473

473

10K @ CNY138.50 - 10K @ CNY139.87

1536

384

e200

2

180

Quality Managed

3

4

4

3

-40 to 105

3.3

5

SPC5675KF0MMM2
数据手册

正常供应

LFBGA257

257

10K @ CNY153.58

—

—

—

—

—

No

—

—

—

—

—

—

—

SPC5675KFF0VMM2
数据手册

正常供应

LFBGA257

257

10K @ CNY152.29 - 10K @ CNY150.92

—

—

—

—

—

No

—

—

—

—

—

—

—
