i.MX RT1040评估套件

MIMXRT1040-EVK 正常供应

滚动图片以放大

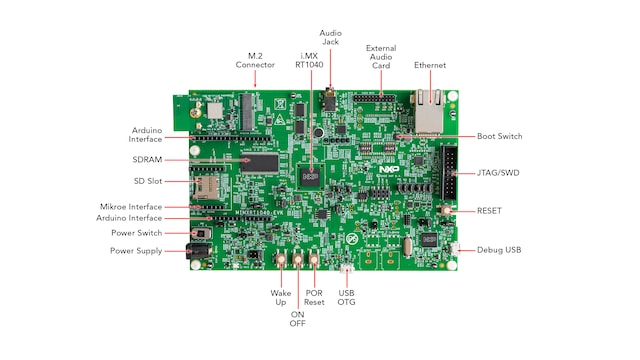

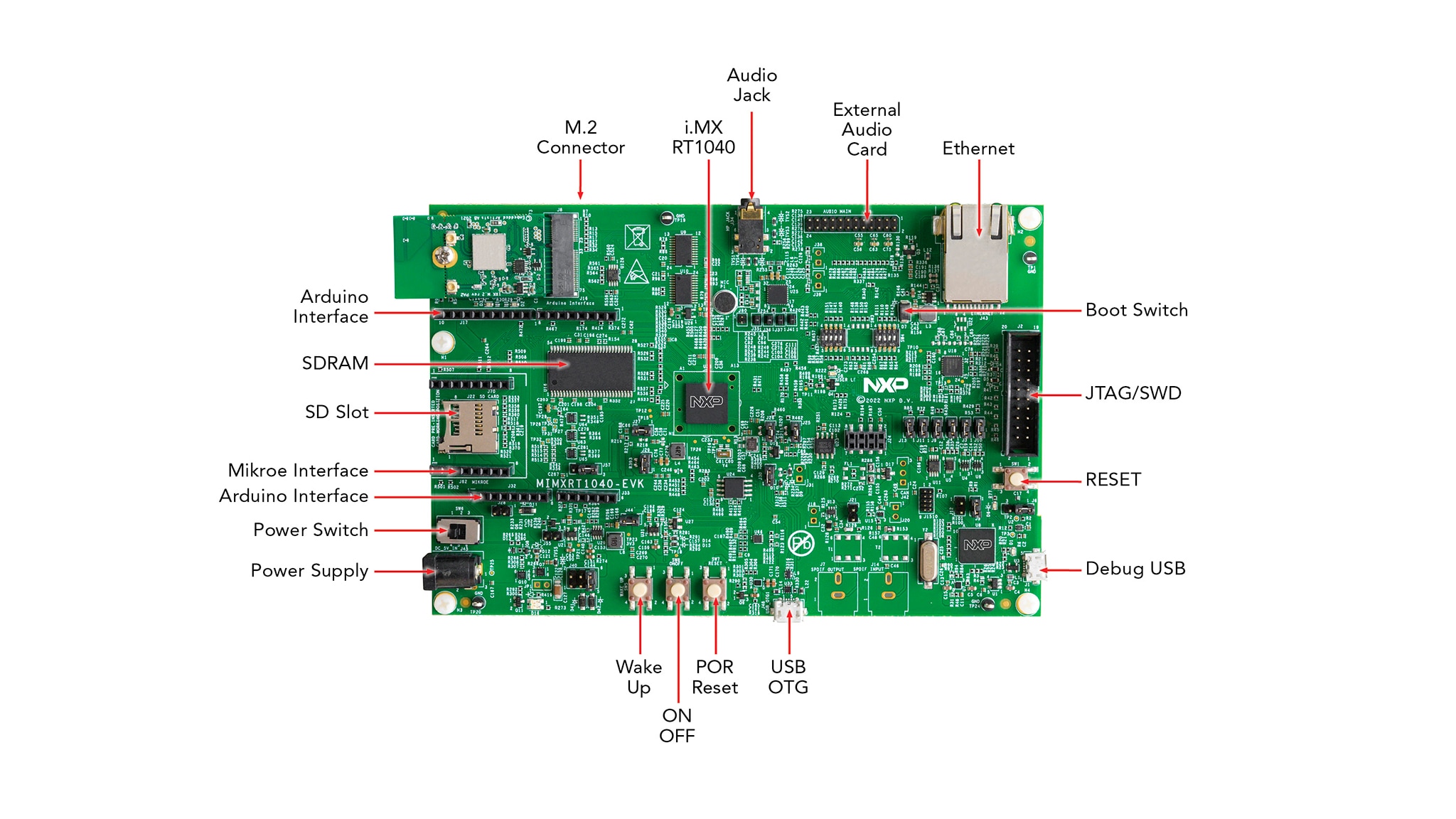

i.MX RT评估板提供了一个强大的、可扩展的平台，也支持您使用MCUXpresso软件和工具套件进行评估和原型设计。Arduino UNO站点可使用恩智浦或第三方Shield扩展板进行扩展。该评估板具有高速USB硬件调试器，可轻松升级固件，支持CMSIS-DSP或SEGGER J-link LITE的特殊版本。

支持的器件

处理器和微控制器

i.MX RT跨界MCU

  • i.MX-RT1040: i.MX RT1040跨界MCU，配备Arm®Cortex®-M7内核，运行频率为600MHz以及扩展的温度范围

传感器

运动传感器

  • FXLS8974CF: ±2g/±4g/±8g/±16g，低功耗，12位数字物联网加速度传感器

特性

音频

  • WM8960立体声音频编解码器
  • 4触点音频耳机+耳机插孔
  • 外部扬声器连接点
  • 麦克风
  • S/PDIF接口
  • 音频扩展接口

板载存储器

  • 256Mb SDRAM存储器(Winbond W9825G6KH)
  • 64Mb QSPI闪存(Winbond W25Q64JVSSIQ)
  • SD卡TF插槽

连接

  • MURATAType 1XK超小型双频Wi-Fi 11a/b/g/n+由恩智浦IW416支持的蓝牙5.2模块
  • Micro USB主设备和OTG连接器
  • 以太网(10/100 M)PHY和RJ45连接器
  • CAN/CAN-FD收发器(恩智浦TJA1057GT/3)

调试功能

  • 高速USB LPC-Link2调试器，带VCOM端口
  • J-Link固件选项
  • SWO跟踪支持
  • JTAG/SWD调试器接口，支持通过外部调试器对目标微控制器进行调试

扩展接头

  • Arduino UNO R3扩展接头
  • MikroE单击扩展接头
  • I2C扩展接头
  • 音频扩展接头

处理器

  • MIMXRT1042XJ M5B处理器

传感器

  • 恩智浦FXLS8974CF: ±2g/±4g/±8g/±16g，低功耗，12位数字物联网加速度传感器

用户接口

  • 并行LCD显示接头
  • “唤醒/用户”按钮
  • 用户LED

更多

购买选项

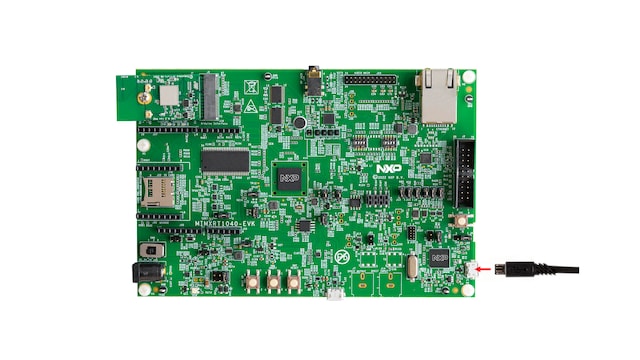

MIMXRT1040-EVK-Image

点击展开

  • $90.85 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
RK043FN66HS-CTG-Image

点击展开

  • $44.80 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 15
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买

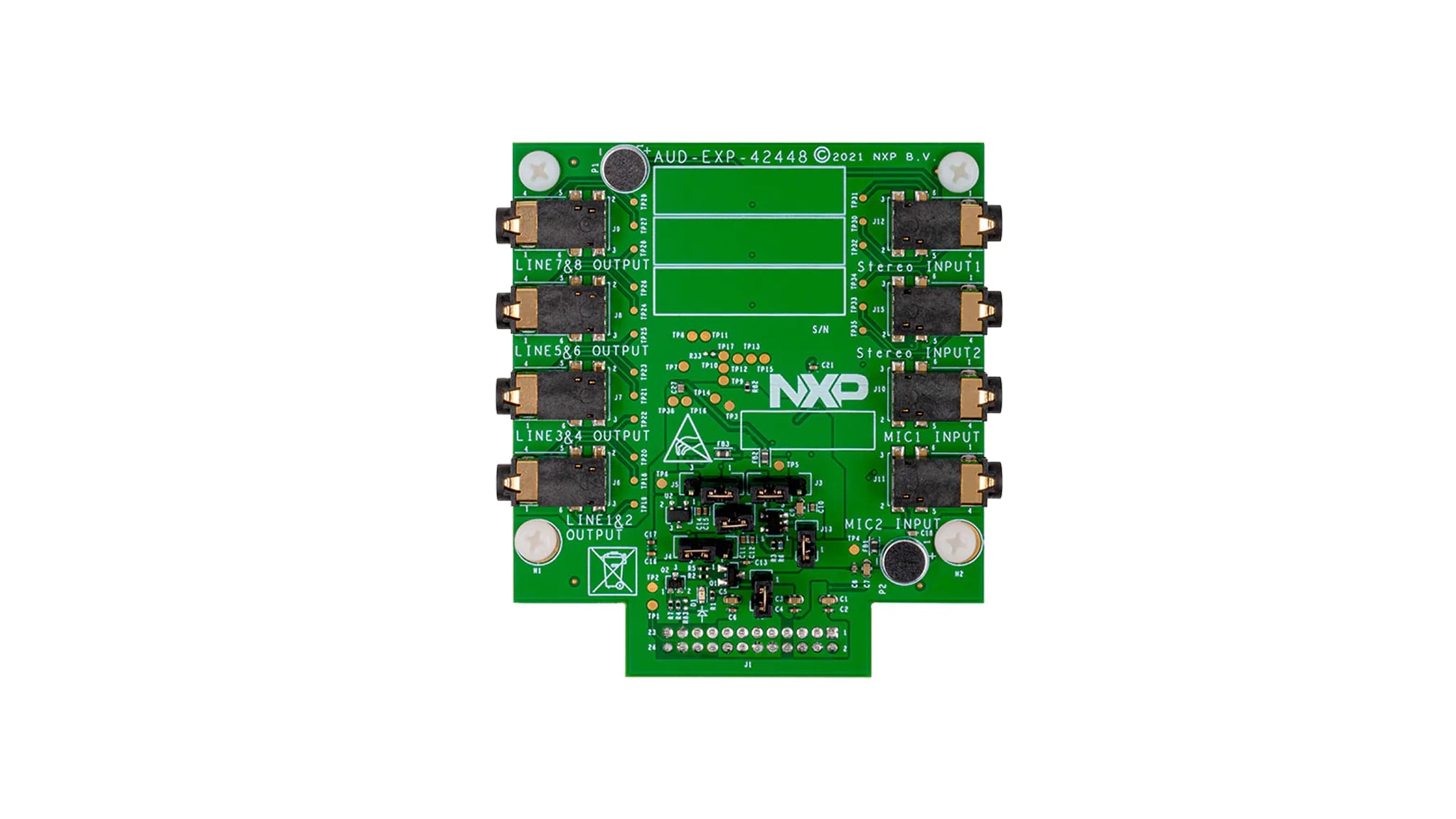

AUD-EXP-42448-Image

点击展开

  • AUD-EXP-42448
    正常供应

  • Multichannel Audio Codec Card for EVKs.

  • $44.85 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
