超可靠的32位MCU，适用于汽车ADAS和工业以太网应用

MPC560xE 正常供应
采用恩智浦<sup></sup>MPC5604 MCU和i.MX6的多摄像头全景泊车辅助系统 - 演示

点击播放视频

MPC560xE系列MCU支持高级驾驶员辅助、环绕视图、基于摄像头的系统和工业应用。这些MCU是一种网关系统，旨在通过以太网将不同来源的数据传输到统一的接收系统，反之亦然。

  • 支持更高水平的系统集成
  • 使相机模块小型化
  • 有助于降低系统成本并缩短产品上市时间
  • 全面的开发工具，可简化和加速系统设计(MPC5604ES包括软件许可封装，含无以太网流媒体和摄像头应用软件以及AUTOSAR®操作系统)

如需了解更多信息和样品供货情况，请联系当地的恩智浦销售办事处或恩智浦授权代理商。

框图

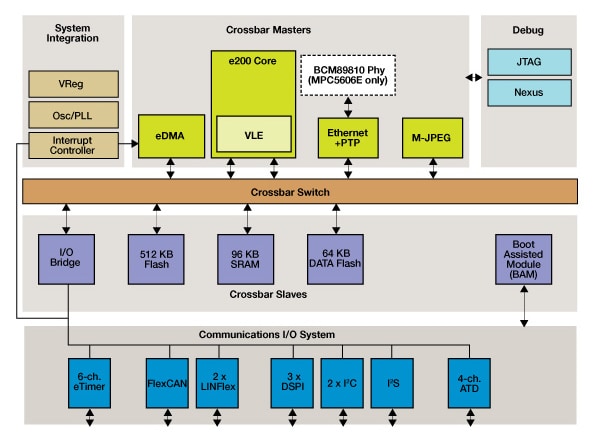

MPC560XE block diagram

MPC560XE block diagram
获取框图PDF

特征

规格

  • 64 MHz恩智浦e200 zen0h内核

存储器

  • 512k字节程序闪存，带ECC
  • 4个16k字节数据闪存，带ECC
  • 96k字节SRAM，带ECC

I/O

  • 1 x MJPEG®频编码器，带图像传感器接口，可支持120万像素
  • 1个支持IEEE1588 PTP的10/100以太网MAC
  • BCM89810 BroadR-Reach®兼容物理层(仅限MPC5606E)
  • FlexCAN，LINFlex
  • 5V ADC

系统

  • 3.3 V单电源供电
  • 64引脚LQFP封装

购买/参数

5 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

Flash (kB)

RAM (kB)

内核类型

内核：内核数量(规范值)

运行频率[最高]（MHz）

SafeAssure 功能安全

I2C

CAN

SCI

DSPI

Ambient Operating Temperature (Min to Max) (℃)

电源电压[最小]（V）

电源电压[最大]（V）

SPC5604EEF2MLH
数据手册

正常供应

LQFP64

64

10K @ CNY79.84 - 10K @ CNY82.43

512

96

e200

1

64

No

2

1

2

3

-40 to 125

1.2

3.3

SPC5604ESF2MLH
数据手册

正常供应

LQFP64

64

10K @ CNY95.92

512

96

e200

1

64

No

2

1

2

3

-40 to 125

1.2

3.3

SPC5604ESF2VLH
数据手册

正常供应

LQFP64

64

10K @ CNY91.19

512

96

e200

1

64

No

2

1

2

3

-40 to 125

1.2

3.3

SPC5606EEF2VMC
数据手册

正常供应

LFBGA121

121

10K @ CNY138.93 - 10K @ CNY141.73

512

96

e200

1

64

No

2

1

2

3

-40 to 125

1.2

3.3

SPC5606EF2VMC
数据手册

正常供应

LFBGA121

121

10K @ CNY134.19 - 10K @ CNY136.92

512

96

e200

1

64

No

2

1

2

3

-40 to 125

1.2

3.3
