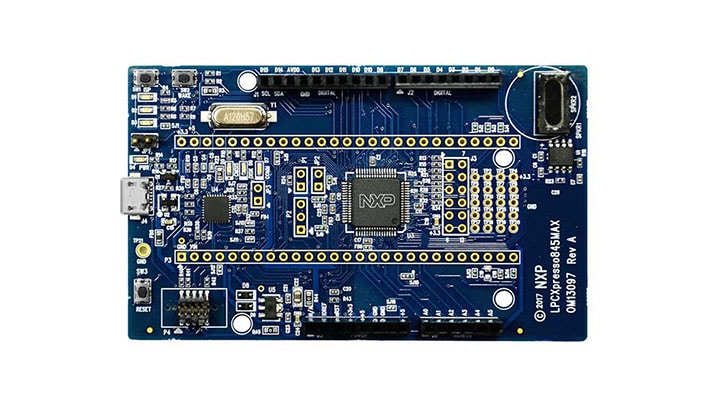

面向LPC84x MCU系列的LPCXpresso845-MAX板

OM13097
正常供应

滚动图片以放大

LPCXpresso-MAX系列板为基于Arm® Cortex®-M0+的恩智浦MCU提供了强大而灵活的开发系统。它们能够与广泛的开发工具结合使用，包括MCUXpresso IDE工具链。LPCXpresso845-MAX板旨在支持LPC84x系列MCU的评估和原型开发。

产品详情

支持的器件

处理器和微控制器

LPC800 Arm Cortex-M0+

  • LPC84X: 基于Arm® Cortex®-M0+内核的低成本微控制器(MCU)

特性

  • 兼容MCUXpresso IDE和其他主流工具链(包括IAR和Keil®)
  • 板载CMSIS-DAP (硬件调试器)带VCOM端口，基于LPC11U35 MCU

连接

  • LPCXpresso扩展接头
  • 兼容“Arduino® UNO”平台的Arduino®接头
  • 兼容扩展接头的Pmod®

音频

  • 通过扬声器驱动器和扬声器的DAC输出

调试

  • 调试器接头支持通过外部调试器对目标MCU进行调试
  • 红色，绿色和蓝色用户LED
  • 目标ISP和用户/唤醒按钮
  • 目标复位按钮
  • 原型设计区域

购买选项

OM13097-Image

点击展开

  • OM13097
    正常供应

  • LPCXpresso845-MAX Board for LPC84x MCU family.

    • LPCXpresso845-MAX开发板
  • $21.85 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 7
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
N true 0 TSPOM13097zh 2 用户指南 User Guide t792 2 zh zh 2 1 1.0 English The LPCXpresso-MAX family of boards provides a powerful and flexible development system for NXP's low end Cortex-M0+ MCUs. They can be used with a range of development tools, including the MCUXpresso IDE toolchain. The LPCXpresso845MAX board is developed by NXP to enable evaluation of and prototyping with the LPC84x family of MCUs. 1497294259105714376626 TSP 536.7 KB Registration without Disclaimer None documents Y Extended 1497294259105714376626 /secured/assets/documents/en/user-guide/UM11057.pdf 536708 /secured/assets/documents/en/user-guide/UM11057.pdf UM11057 Y N 2017-06-12 LPCXpresso845MAX User Manual /webapp/Download?colCode=UM11057&docLang=en /secured/assets/documents/en/user-guide/UM11057.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Jun 9, 2017 User Guide t792 用户指南 User Guide Y N LPCXpresso845MAX User Manual 2 English This page will help guide you through the process of learning about your OM13097 board. 1553552322167713132126 Y 1553552322167713132126 GS-OM13097 GS-OM13097 /document/guide/getting-started-with-the-lpcxpresso845-max-evaluation-board:GS-OM13097 HTML 0 TSP 2019-03-25 GS-OM13097 TSP User Guide 132339537837198660 2025-03-05 en Nov 16, 2022 User Guide t792 用户指南 User Guide Y Getting Started with the LPCXpresso845-MAX Evaluation Board false zh false 0 OM13097 downloads zh-Hans true 0 Y TSP 用户指南 2 /secured/assets/documents/en/user-guide/UM11057.pdf 2017-06-12 1497294259105714376626 TSP 1 Jun 9, 2017 User Guide 用户指南 The LPCXpresso-MAX family of boards provides a powerful and flexible development system for NXP's low end Cortex-M0+ MCUs. They can be used with a range of development tools, including the MCUXpresso IDE toolchain. The LPCXpresso845MAX board is developed by NXP to enable evaluation of and prototyping with the LPC84x family of MCUs. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/UM11057.pdf English 536708 None User Guide 2023-06-18 Y /webapp/Download?colCode=UM11057&docLang=en LPCXpresso845MAX User Manual /secured/assets/documents/en/user-guide/UM11057.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1.0 Y N LPCXpresso845MAX User Manual 536.7 KB UM11057 N 1497294259105714376626 2019-03-25 1553552322167713132126 TSP 2 Nov 16, 2022 User Guide 用户指南 This page will help guide you through the process of learning about your OM13097 board. Y GS-OM13097 English 0 User Guide 2025-03-05 /document/guide/getting-started-with-the-lpcxpresso845-max-evaluation-board:GS-OM13097 Getting Started with the LPCXpresso845-MAX Evaluation Board GS-OM13097 TSP 132339537837198660 User Guide en Y t792 HTML GS-OM13097 1553552322167713132126 true Y Tools
