FRDM-RW612
正常供应 -
FRDM Development Board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-Radio Wireless MCU.
Kit Contains
- FRDM-RW612
- Quick Start Guide
- USB Cable Type-C
Related Hardware
快速参考恩智浦 板类型.

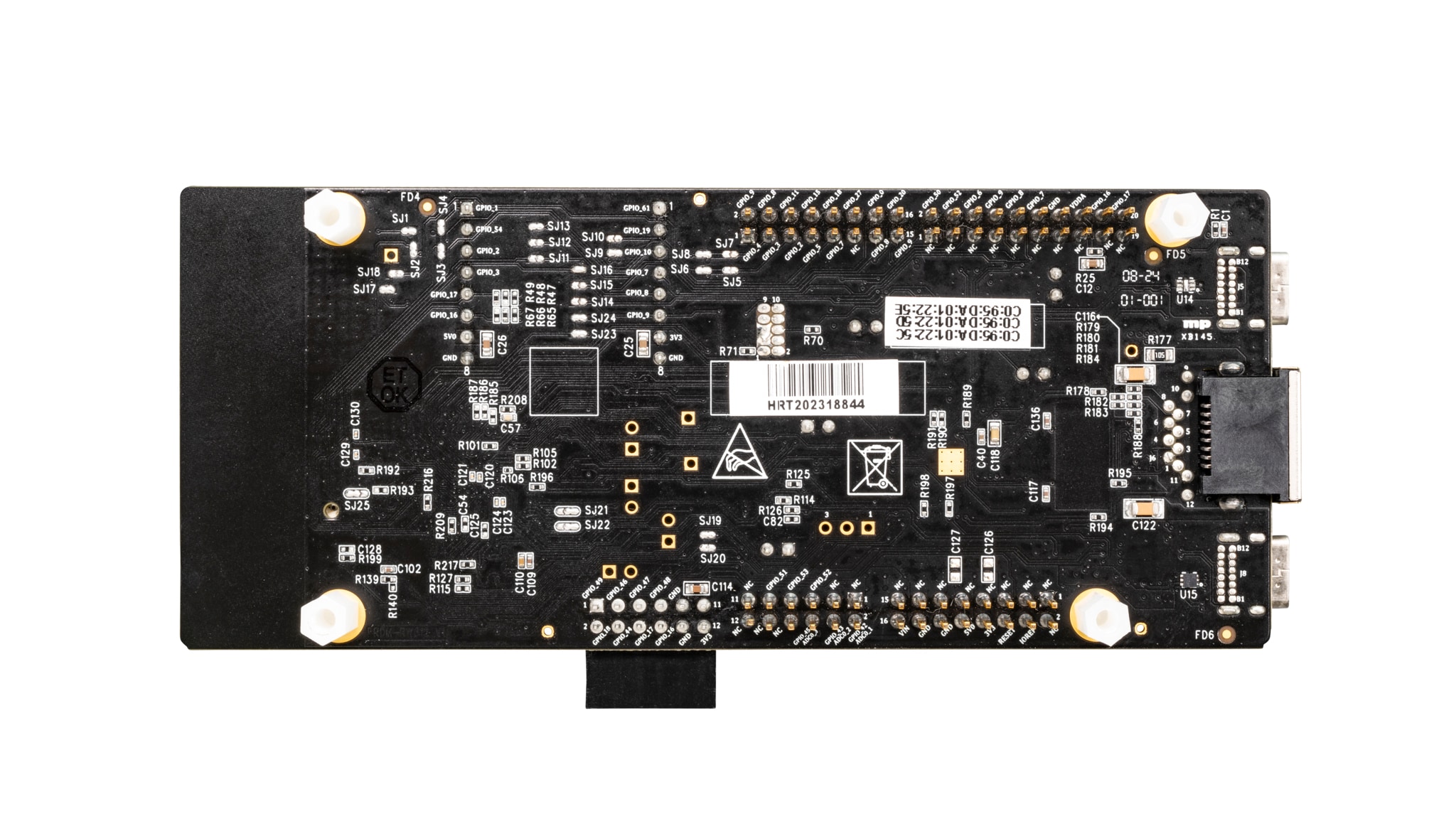

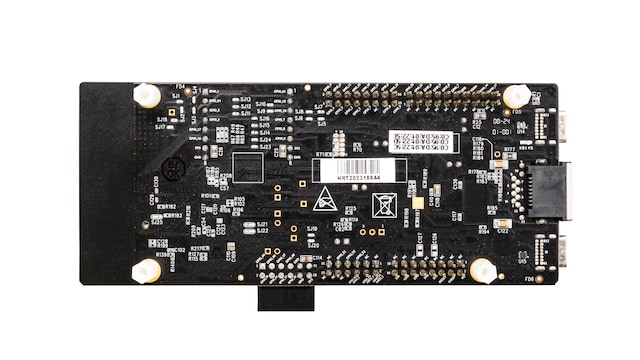

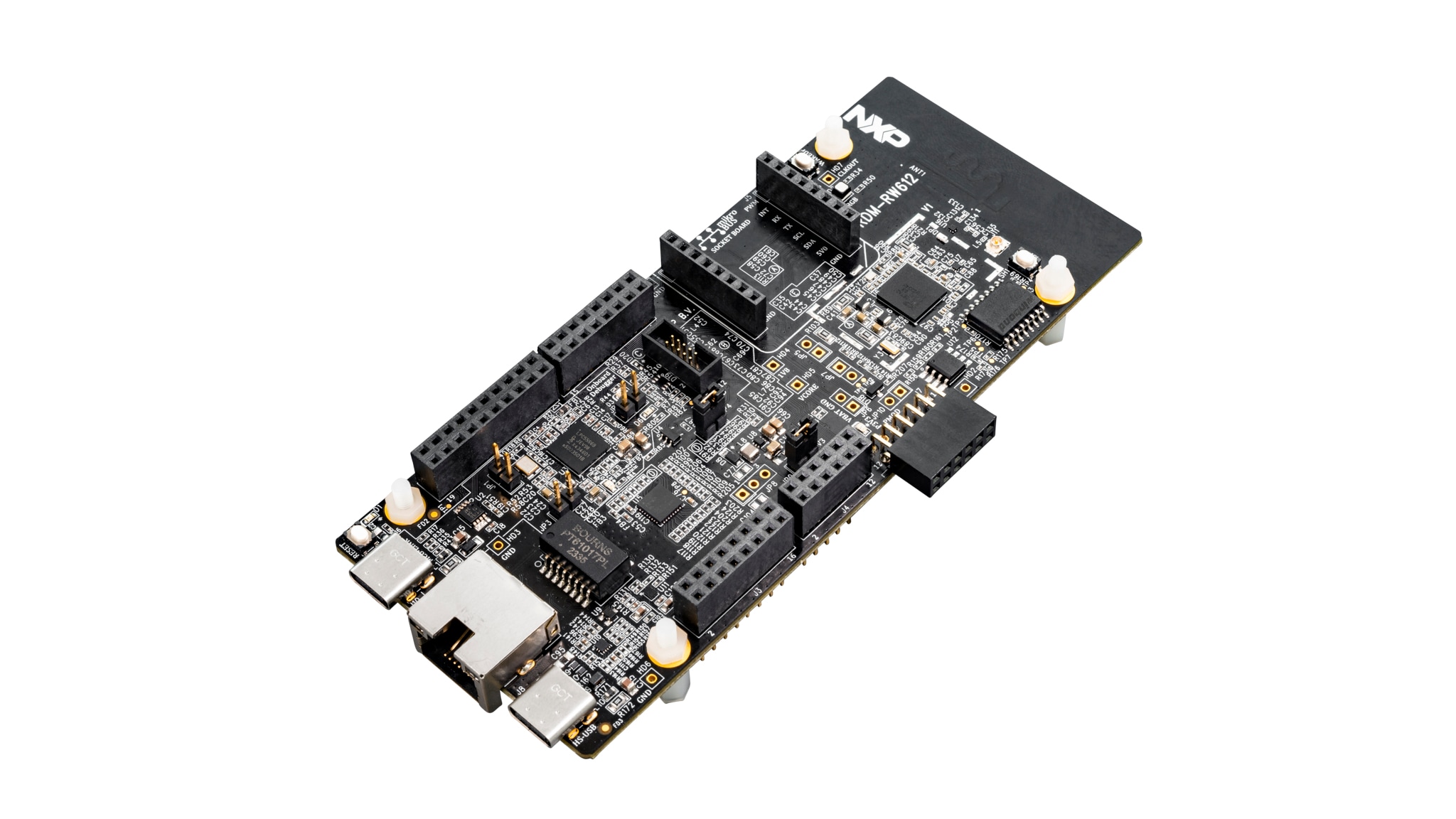

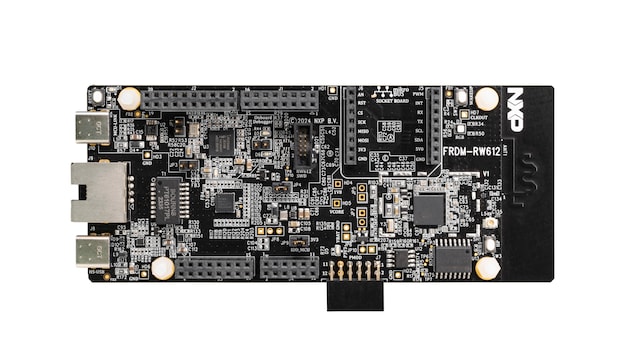

FRDM Development Board for RW612 Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 Tri-Radio Wireless MCU
FRDM-RW612 is a compact and scalable development board for rapid prototyping of the RW61x series of Wi-Fi 6 + Bluetooth Low Energy + 802.15.4 tri-radio wireless MCUs.
It offers easy access to the MCU’s I/Os and peripherals, integrated open-standard serial interfaces, external flash memory and on-board MCU-Link debugger.
NXP's Expansion Board Hub for add-on boards, the Application Code Hub for software examples and more are available through the MCUXpresso Developer Experience.
产品详情
支持的器件
无线连接
电源管理
负载开关
- NX5P3090UK: USB PD和Type C限流电源开关
传感器
I3C/I²C数字温度传感器
- P3T1755DP: I3C/I²C总线精确数字温度传感器，精度为±0.5 °C
Features
Microcontroller
- RW612 Arm™ Cortex™-M33 core @260MHz with optimized performance efficiency, 1.2 MB on-chip SRAM
Memory Expansion
- Winbond QSPI flash (512Mbit): W25Q512JV
- AP Memory QSPI pSRAM (64 Mbit): APS6404L-SQN-SN
Connectivity
- SPI/I2C/UART connector (mikroBUS, Pmod™)
- Ethernet Phy and connector
- HS USB Type-C connectors
- Dual-band, 1x1 Wi-Fi 6 radio with 20 MHz channel bandwidth
- Bluetooth LE radio
- 802.15.4 radio supporting Zigbee and Thread
Debug
- On-board MCU-Link debugger with CMSIS-DAP
- JTAG/SWD connector
Sensor
- P3T1755 I3C temperature sensor
Expansion Options
- Arduino® Header (with FRDM expansion rows)
- FRDM Header
- Pmod™
- mikroBUS™
User Interface
- RGB user LED, Reset, ISP, Wakeup buttons
