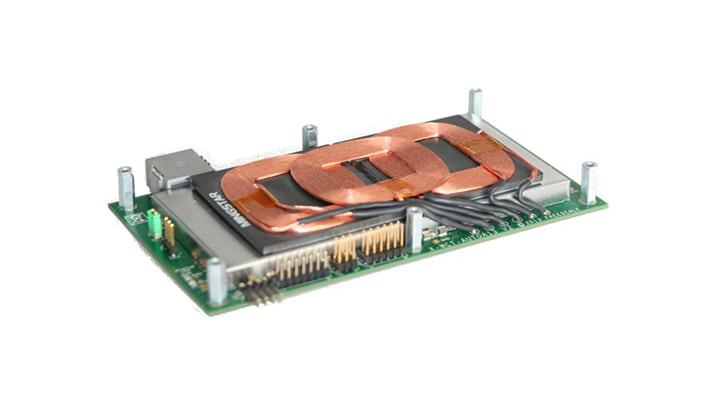

5 W多线圈无线充电发射器

RDWCT-5WTXAUTO

滚动图片以放大

恩智浦5W多线圈发射器参考平台适用于采用恩智浦MWCT1003AVLH发射控制器IC的汽车无线充电应用。

  • 无线充电发射器解决方案所需的所有控制功能均可通过该控制器IC管理执行。
  • 该解决方案包含高性能无线充电系统，同时也考虑到汽车复杂的工作环境。

MWCT1001A/MWCT1003A无线充电IC - 简介

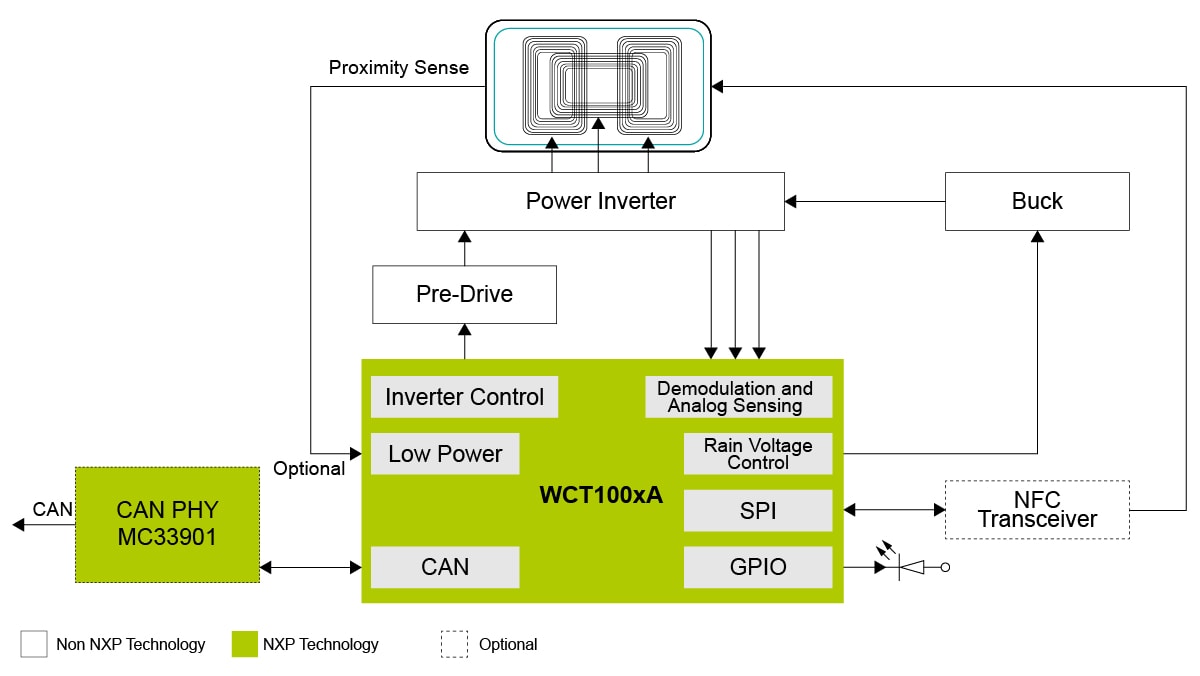

框图

5W多线圈无线充电解决方案

WCT-5WTXAUTO Block diagram
获取框图PDF

支持的器件

电源管理

无线电源

  • MWCT1x0xA: 面向汽车应用的5 W无线充电发射器IC

安全SBC

  • MC33907: 安全系统基础芯片，DC/DC，频率高达800mA

接口

3.3V/5V IO CAN收发器

  • TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family

特征

Certifications

  • Certified as WPC-A13 transmitter type

Features

  • Greater than 60% transfer efficiency
  • Multi-coil to support any Qi-enabled smartphone
  • Low active RUN power
  • On-chip digital demodulation
  • Low system standby power consumption (using NXP proximity sense technology)
  • Robust foreign object detection algorithm
  • Addresses automotive specific issues such as EMC, key fob and start/stop
  • Supports additional features such as NFC, CAN and touch sense

购买选项

WCT-5WTXAUTO-Image

点击展开

  • WCT-5WTXAUTO
    正常供应

  • 5 watt multi-coil reference platform design for automotive applications.

  • 套件包含：

    • WCT汽车A13板
    • 电源连接器
    • 12 V电源
    • USB-UART转换板
    • 触控板
  • 数量为 1
从分销商处购买
