电机控制应用优化(MCAT)工具

MCATSW

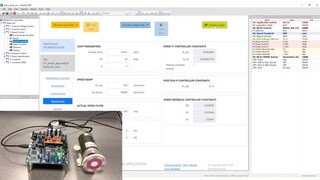

MCAT Introduction

点击播放视频

电机控制应用优化(MCAT)工具是基于HMTL的用户友好型图形插件工具，适用于恩智浦FreeMASTER。该工具旨在帮助开发PMSM(BLDC) FOC和ACIM电机控制应用，实时优化控制结构参数，同时，使电机控制用户无需深入了解PI控制器常数计算，就能根据其电机调整恩智浦电机控制解决方案。

MCAT工具可支持不同的功能，并且不同领域（自动、工业）具有不同的外观。

MCUXpresso SDK电机控制页面介绍了工业领域示例。

该工具并不是以独立应用的形式提供，而是推荐参考设计和应用代码的FreeMASTER插件组件。

软件详情

框图

选择框图:

Motor Control Application Tuning

Motor Control Application Tuning Tool block diagram

Automotive General Block Diagram

Automotive General Block Diagram
获取框图PDF

功能

  • 多电机配置管理
  • 实时优化和更新控制参数
  • 预览已优化参数的静态配置
  • 包含静态配置已优化参数的通用输出文件
  • 适用于FreeMASTER的插件工具，不是以独立工具的形式提供
  • “基于铬”的浏览器，可在标准浏览器中运行
  • 模块化软件思路，易于配置
