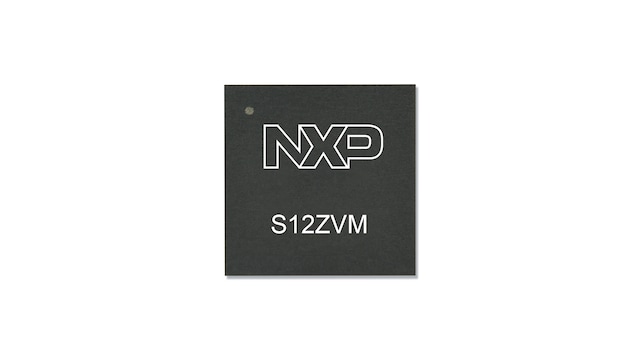

S12ZVM混合信号MCU，适用于汽车和工业电机控制应用

S12ZVM 正常供应
S12 MagniV Microcontrollers for Automotive Applications

点击播放视频

16位S12MagniV®S12ZVM混合信号微控制器系列提供了最小、高效、可扩展的三相电机控制解决方案，适用于工业和汽车的无刷直流(BLDC)电机、永磁同步电机(PMSM)或开关磁阻电机(SRM)控制应用。

S12ZVM MCU集成了12 V至5 V的稳压器、LIN物理层或CAN物理层以及栅极驱动器单元(GDU)，以控制六个功率MOSFET。

框图

S12ZVM Block Diagram

S12ZVM Microcontroller Block Diagram
获取框图PDF

特征

  • 增强型S12Z内核，50 MHz总线频率
  • 16kB - 256kB闪存(ECC)
  • 128B - 1kB EEPROM (ECC)
  • 2kB - 32kB RAM (ECC)
  • 6通道PMF 15位PWM，用于电机控制与死区时间、故障管理
  • 双12位模数转换器(ADC)
  • 同步ADC转换的可编程触发单元(PTU)
  • 3.5至20V工作电压范围
  • CAN物理层(仅限S12ZVMC256)
  • LIN物理层(仅限S12ZVML128、S12ZVML64、S12ZVML32和S12ZVML31)
  • 6个功率MOSFET的栅极驱动电路 (GDU)
  • 面向电流测量/感应的2个运算放大器

对比表

S12ZVM系列产品对比

产品名称S12ZVMC256 S12ZVML128/64/32 S12ZVMC128/64S12ZVML31S12ZVM32/16
封装80LQFP-EP64LQFP-EP64LQFP-EP64LQFP-EP/48LQFP-EP64LQFP-EP/48LQFP-EP
闪存256k128k/64k/32k128k/64k32k32k/16k
RAM32k8k/4k8k/4k4k4k
EEPROM (字节)1K512512128128
PHYCANLIN0LINHV
独立VREG1+10100
GDU (HS / LS)3/33/33/33/33/3
集成自举二极管00033
OpAmp / 电流传感2222/12/1
ADC (外部通道)8+84+54+54+5/1+34+5/1+3
MSCAN11100
SCI2222/12/1
SPI1111/01/0
TIM (IC/OC通道)4444/34/3
PWM通道6+46666
外部FET标称栅极电荷(nC)100-150100-150100-15050-8050-80
工作环境温度(最低温度至最高温度) (°C)最高150°C环境温度

购买/参数

1-10 / 12 结果

包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

内核类型

运行频率[最高]（MHz）

Flash (kB)

RAM (kB)

EEPROM (kB)

其他模拟功能

PHY

CAN

Number of LIN Channels

SCI

SPI

S912ZVMC12F3MKH

正常供应

HLQFP64

64

1K @ CNY32.45

S12Z

50

—

8

0.51

6-ch. Gate Drive Unit

CAN

1

—

2

1

S912ZVMC12F3WKH

正常供应

HLQFP64

64

1K @ CNY35.40

S12Z

40

—

8

0.51

6-ch. Gate Drive Unit

CAN

1

—

2

1

S912ZVMC25F1MKK

正常供应

HLQFP80

80

1K @ CNY43.65

S12Z

40

256

32

1

—

CAN

1

—

2

1

S912ZVMC25F1WKK

正常供应

HLQFP80

80

1K @ CNY47.82

S12Z

50

256

32

1

—

CAN

1

—

2

1

S912ZVML12F3MKH

正常供应

HLQFP64

64

1K @ CNY32.45

S12Z

50

—

8

0.51

6-ch. Gate Drive Unit

CAN, LIN

1

1

—

—

S912ZVML12F3WKH

正常供应

HLQFP64

64

1K @ CNY35.40

S12Z

40

—

8

0.51

6-ch. Gate Drive Unit

CAN, LIN

1

1

—

—

S912ZVML31F1MKF

正常供应

HLQFP48

48

1K @ CNY24.48

S12Z

50

—

4

0.13

6-ch. Gate Drive Unit

LIN

—

1

1

—

S912ZVML31F1MKH

正常供应

HLQFP64

64

1K @ CNY25.20

S12Z

50

—

4

0.13

6-ch. Gate Drive Unit

LIN

—

1

2

1

S912ZVML31F1WKF

正常供应

HLQFP48

48

1K @ CNY26.78

S12Z

50

—

4

0.13

6-ch. Gate Drive Unit

LIN

—

1

1

—

S912ZVML31F1WKH

正常供应

HLQFP64

64

1K @ CNY27.50

S12Z

50

—

4

0.13

6-ch. Gate Drive Unit

LIN

—

1

2

1

N true 0 PSPS12ZVMzh 43 产品变更通知 Product Change Notice t526 1 勘误表 Errata t522 6 参考手册 Reference Manual t877 2 工程设计要点 Technical Notes t521 1 应用笔记 Application Note t789 21 应用笔记软件 Application Note Software t783 7 手册 Brochure t518 1 用户指南 User Guide t792 3 简介 Fact Sheet t523 1 zh 1 1 4 English The S12ZVH family is part of the S12 MagniV<sup>&#174;</sup> portfolio of mixed-signal MCUs, built upon LL18UHV technology, combining highly reliable 180 nm non-volatile memory technology with high-voltage analog components on a single piece of silicon. The industry&#8217;s first single-chip automotive instrument cluster solution integrates an automotive voltage regulator operating between 5 and 18 volts, a CAN/LIN physical layer, an LCD display controller and instrument cluster gauge drivers. 1329866488521699646177 PSP 296.4 KB None None documents None 1329866488521699646177 /docs/en/fact-sheet/S12ZVMFS.pdf 296436 /docs/en/fact-sheet/S12ZVMFS.pdf S12ZVMFS documents N N 2016-10-31 S12 MagniV<sup>®</sup> S12ZVM - Fact Sheet /docs/en/fact-sheet/S12ZVMFS.pdf /docs/en/fact-sheet/S12ZVMFS.pdf /docs/en/fact-sheet/S12ZVMFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Nov 12, 2014 736675474163315314 Fact Sheet Y N S12 MagniV<sup>®</sup> S12ZVM - Fact Sheet 4 Japanese The S12ZVH family is part of the S12 MagniV<sup>&#174;</sup> portfolio of mixed-signal MCUs, built upon LL18UHV technology, combining highly reliable 180 nm non-volatile memory technology with high-voltage analog components on a single piece of silicon. The industry&#8217;s first single-chip automotive instrument cluster solution integrates an automotive voltage regulator operating between 5 and 18 volts, a CAN/LIN physical layer, an LCD display controller and instrument cluster gauge drivers. 1329866488521699646177ja PSP 296.4 KB None None documents None 1329866488521699646177 /docs/ja/fact-sheet/S12ZVMFS.pdf 296436 /docs/ja/fact-sheet/S12ZVMFS.pdf S12ZVMFS documents N N 2016-10-31 S12 MagniV<sup>®</sup> S12ZVM - Fact Sheet /docs/ja/fact-sheet/S12ZVMFS.pdf /docs/ja/fact-sheet/S12ZVMFS.pdf /docs/ja/fact-sheet/S12ZVMFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N ja Nov 1, 2023 736675474163315314 Fact Sheet Y N S12 MagniVミックスド・シグナルMCU - ファクトシート 2 Chinese 1329866488521699646177zh PSP 296.4 KB None None documents None 1329866488521699646177 /docs/zh/fact-sheet/S12ZVMFS.pdf 296436 /docs/zh/fact-sheet/S12ZVMFS.pdf S12ZVMFS N N 2016-10-31 S12 MagniV<sup>®</sup> S12ZVM - Fact Sheet /docs/zh/fact-sheet/S12ZVMFS.pdf /docs/zh/fact-sheet/S12ZVMFS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N zh Fact Sheet t523 简介 Fact Sheet N S12 MagniV<sup>®</sup> S12ZVM - 简介 false zh zh 参考手册 Reference Manual 2 2 2.15 English MC9S12ZVMRM: The MC9S12ZVM-Family is an automotive 16-bit microcontroller family using the 180nm NVM + UHV technology that offers the capability to integrate 40 V analog components. 1456314440944692831434 PSP 15.2 MB Registration without Disclaimer None documents Extended 1456314440944692831434 /secured/assets/documents/en/reference-manual/MC9S12ZVMRM.pdf 15231665 /secured/assets/documents/en/reference-manual/MC9S12ZVMRM.pdf MC9S12ZVMRM documents Y N 2016-11-30 MC9S12ZVMRM: MC9S12ZVM-Family Reference Manual and Datasheet /webapp/Download?colCode=MC9S12ZVMRM&lang_cd=zh /secured/assets/documents/en/reference-manual/MC9S12ZVMRM.pdf Reference Manual N 500633505221135046 2024-12-12 pdf Y en Sep 6, 2023 500633505221135046 Reference Manual Y N MC9S12ZVMRM: MC9S12ZVM-Family Reference Manual and Datasheet 3 1.01 English S12ZCPURM: This manual describes the features and operation of the central processing unit, or S12Z CPU, used in HCS12Z microcontrollers. 68HC12, HCS12, HCS12X, and HCS12Z represent four generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. 1360836753606710339755 PSP 3.0 MB Registration without Disclaimer None documents Extended 1360836753606710339755 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf 2981526 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf S12ZCPURM documents Y N 2016-10-31 CPU S12Z Reference Manual - Reference Manual /webapp/Download?colCode=S12ZCPURM&lang_cd=zh /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf Reference Manual N 500633505221135046 2024-07-15 pdf Y en Jan 13, 2013 500633505221135046 Reference Manual Y N CPU S12Z Reference Manual - Reference Manual 应用笔记 Application Note 21 4 0 English Describing the boot operation of S12Z core and how to implement and use a bootloader application that can serially reprogram a device. Focusing on explaining how this core manages boot process, memory layout and manipulation schemes, and interrupt management. The bootloader application can be matched with any serial communication protocol driver to provide flexibility to the implementation. 1372857997482752017970 PSP 463.1 KB None None documents None 1372857997482752017970 /docs/en/application-note/AN4723.pdf 463109 /docs/en/application-note/AN4723.pdf AN4723 documents N N 2016-10-31 AN4723: S12Z MagniV Bootloader – Application Note /docs/en/application-note/AN4723.pdf /docs/en/application-note/AN4723.pdf Application Note N 645036621402383989 2024-07-15 en Jul 2, 2013 645036621402383989 Application Note Y N AN4723: S12Z MagniV Bootloader – Application Note 0 Chinese 1372857997482752017970zh PSP 463.1 KB None None documents None 1372857997482752017970 /docs/zh/application-note/AN4723.pdf 463109 /docs/zh/application-note/AN4723.pdf AN4723 documents N N 2016-10-31 AN4723: S12Z MagniV Bootloader – Application Note /docs/zh/application-note/AN4723.pdf /docs/zh/application-note/AN4723.pdf Application Note N 645036621402383989 2024-07-15 pdf N zh 645036621402383989 Application Note N AN4723，S12Z MagniV引导加载程序 - 应用说明 5 1 English Introducing some considerations on how to enable MagniV MCU family for 24 V applications. In particular cases, the common PCB design can be used for both 12 V and 24 V applications like cars or trucks. These considerations are based on the ISO 16750-1, ISO 16750-2, ISO 7637-2, and ISO 7637-3 standards, taking into account the device power supply chain, I/O pins, and the physical communication layer. 1426254102361716153980 PSP 425.8 KB None None documents None 1426254102361716153980 /docs/en/application-note/AN5082.pdf 425820 /docs/en/application-note/AN5082.pdf AN5082 documents N N 2016-10-31 AN5082: MagniV MCUs in 24V Applications – Application Note /docs/en/application-note/AN5082.pdf /docs/en/application-note/AN5082.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Mar 15, 2015 645036621402383989 Application Note Y N AN5082: MagniV MCUs in 24V Applications – Application Note 6 0 English AN5201SW.zip /docs/en/application-note-software/AN5201SW.zip /docs/en/application-note-software/AN5201SW.zip Guiding on integrating the Local Interconnect Network (LIN) driver with the BLDC sensorless motor controller software provided with the S12ZVM128EVB. 1444037247767723571162 PSP 1.1 MB None None documents None 1444037247767723571162 /docs/en/application-note/AN5201.pdf 1079043 /docs/en/application-note/AN5201.pdf AN5201 documents N N 2021-07-21 AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note /docs/en/application-note/AN5201.pdf /docs/en/application-note/AN5201.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Sep 30, 2015 645036621402383989 Application Note Y N AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note 7 2 English Describing hardware design guidelines for S12ZVM Microcontrollers. The MC9S12ZVM family is an automotive 16-bit microcontroller family using the NVM + UHV technology to integrate 40 V analog components. This family reuses many features from the existing S12/S12X portfolio. 1446187611320710336808 PSP 2.6 MB Registration without Disclaimer None documents Extended 1446187611320710336808 /secured/assets/documents/en/application-note/AN5207.pdf 2583780 /secured/assets/documents/en/application-note/AN5207.pdf AN5207 documents Y N 2016-10-31 AN5207: Hardware Design Guidelines for S12ZVM – Application Note /webapp/Download?colCode=AN5207&lang_cd=zh /secured/assets/documents/en/application-note/AN5207.pdf Application Note N 645036621402383989 2024-07-17 pdf Y en Dec 12, 2017 645036621402383989 Application Note Y N AN5207: Hardware Design Guidelines for S12ZVM – Application Note 8 0 English Describing how the Spurious interrupt in S12Z family is a protective mechanism for unknown interrupt sources and makes CPU run under predictable action. The root cause to enter spurious interrupt is that an interrupt request becomes inactive after the interrupt has been recognized, but before the vector request. The synchronous and sequential operation could make the system robust and lower the possibility of entering the protective system mechanism. 1597036142864696703430 PSP 311.3 KB None None documents None 1597036142864696703430 /docs/en/application-note/AN12943.pdf 311289 /docs/en/application-note/AN12943.pdf AN12943 documents N N 2020-08-09 AN12943: Spurious interrupt on MagniV – Application Note /docs/en/application-note/AN12943.pdf /docs/en/application-note/AN12943.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Jun 30, 2020 645036621402383989 Application Note Y N AN12943: Spurious interrupt on MagniV – Application Note 9 0 English AN5389SW.zip /docs/en/application-note-software/AN5389SW.zip /docs/en/application-note-software/AN5389SW.zip Focusing on implementing a bootloader that receives the new software to program through LIN. Implementing a bootloader has become more frequent with the growth of memory size in automotive MCUs and LIN being one of the most widely used automotive communication protocols. 1487849547729707137629 PSP 423.4 KB None None documents None 1487849547729707137629 /docs/en/application-note/AN5389.pdf 423385 /docs/en/application-note/AN5389.pdf AN5389 documents N N 2017-02-23 AN5389: S12Z MagniV LIN Bootloader – Application Note /docs/en/application-note/AN5389.pdf /docs/en/application-note/AN5389.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Feb 22, 2017 645036621402383989 Application Note Y N AN5389: S12Z MagniV LIN Bootloader – Application Note 10 0 English Providing a simple MSCAN driver allowing users to enable CAN communications on any of the MagniV devices and explaining the configuration of the MSCAN registers. Offering a simple software driver for CAN communications on the MagniV devices and does not intend to give a full in-depth explanation of the CAN protocol. 1407932756289724724697 PSP 745.5 KB None None documents None 1407932756289724724697 /docs/en/application-note/AN4975.pdf 745522 /docs/en/application-note/AN4975.pdf AN4975 documents N N 2016-10-31 AN4975: Using MSCAN on the MagniV Family – Application Note /docs/en/application-note/AN4975.pdf /docs/en/application-note/AN4975.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Aug 11, 2014 645036621402383989 Application Note Y N AN4975: Using MSCAN on the MagniV Family – Application Note 11 1 English AN12086SW.ZIP /docs/en/application-note-software/AN12086SW.ZIP /docs/en/application-note-software/AN12086SW.ZIP Covering the operation and use of a simple serial Bootloader for the S12Z microcontroller families. The Bootloader can be a convenient way to support programming during production or “in-system”, where support for the dedicated Background Debug interface (BDM) may not be available. Users must pre-program the S12Z MCU with the Bootloader during production or at a programming vendor. 1518690072353719323097 PSP 530.4 KB Registration without Disclaimer None documents Extended 1518690072353719323097 /secured/assets/documents/en/application-note/AN12086.pdf 530397 /secured/assets/documents/en/application-note/AN12086.pdf AN12086 documents Y N 2018-02-15 AN12086: Simple Serial Bootloader for S12Z – Application Note /webapp/Download?colCode=AN12086&lang_cd=zh /secured/assets/documents/en/application-note/AN12086.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en Feb 18, 2018 645036621402383989 Application Note Y N AN12086: Simple Serial Bootloader for S12Z – Application Note 12 0 English Presenting information to enable S12ZVM family into a 48 V motor control system. Giving an accurate description of how S12ZVM devices fully support the standard LV 148. 1495618668434697746854 PSP 403.8 KB None None documents None 1495618668434697746854 /docs/en/application-note/AN11967.pdf 403821 /docs/en/application-note/AN11967.pdf AN11967 documents N N 2017-05-24 AN11967: S12ZVM Family in 48 V Applications – Application Note /docs/en/application-note/AN11967.pdf /docs/en/application-note/AN11967.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 23, 2017 645036621402383989 Application Note Y N AN11967: S12ZVM Family in 48 V Applications – Application Note 13 0 English Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. 1369937932059742568603 PSP 477.3 KB None None documents None 1369937932059742568603 /docs/en/application-note/AN4753.pdf 477314 /docs/en/application-note/AN4753.pdf AN4753 documents N N 2016-10-31 AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf /docs/en/application-note/AN4753.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 30, 2013 645036621402383989 Application Note Y N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 14 0 English Guiding users through the migration process from one S12ZVM to another S12ZVM microcontroller. Migrating between the two devices may require hardware and/or software changes. The S12ZVM family gives the smallest, most efficient, and scalable BLDC/PMPSM motor control solution for industrial and automotive applications. 1497862136357685756409 PSP 993.6 KB None None documents None 1497862136357685756409 /docs/en/application-note/AN5330.pdf 993646 /docs/en/application-note/AN5330.pdf AN5330 documents N N 2017-06-19 AN5330: Migration Guide for S12ZVM Devices – Application Note /docs/en/application-note/AN5330.pdf /docs/en/application-note/AN5330.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Jun 18, 2017 645036621402383989 Application Note Y N AN5330: Migration Guide for S12ZVM Devices – Application Note 15 1 English Describing the design of a 3-phase brushless DC (BLDC) motor control drive using a sensorless algorithm. The design is targeted at automotive applications. This cost-effective solution is based on MC9S12ZVML128 MCU, targeting automotive motor control. 1376919947986721925229 PSP 2.6 MB None None documents None 1376919947986721925229 /docs/en/application-note/AN4704.pdf 2648009 /docs/en/application-note/AN4704.pdf AN4704 documents N N 2016-10-31 AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN4704.pdf /docs/en/application-note/AN4704.pdf Application Note N 645036621402383989 2024-07-15 en Aug 14, 2013 645036621402383989 Application Note Y N AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note 1 Chinese 1376919947986721925229zh PSP 2.6 MB None None documents None 1376919947986721925229 /docs/zh/application-note/AN4704.pdf 2648009 /docs/zh/application-note/AN4704.pdf AN4704 documents N N 2016-10-31 AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note /docs/zh/application-note/AN4704.pdf /docs/zh/application-note/AN4704.pdf Application Note N 645036621402383989 2024-07-15 pdf N zh 645036621402383989 Application Note N AN4704，采用S12 MagniV<sup>®</sup> MC9S12ZVM的3相无传感器BLDC电机控制套件 - 应用笔记 16 0 English Introducing the Analog-to-Digital Converter module of the S12ZVM family. The ADC12B_LBA is a successive approximation analog-to-digital converter with a maximum of N internal channel. This module has List Based Architecture (LBA), allowing the user to have a free selection of the conversion channel and the flexibility to have different conversion sequences. 1439360665499699702791 PSP 667.6 KB None None documents None 1439360665499699702791 /docs/en/application-note/AN5168.pdf 667616 /docs/en/application-note/AN5168.pdf AN5168 documents N N 2016-10-31 AN5168: Using the ADC Module in S12ZVM – Application Note /docs/en/application-note/AN5168.pdf /docs/en/application-note/AN5168.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Aug 11, 2015 645036621402383989 Application Note Y N AN5168: Using the ADC Module in S12ZVM – Application Note 17 1 English Outlining the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control drive with 2-shunt current sensing without a position sensor. This cost-effective solution benefits from MC9S12ZVM device dedicated to motor control. 1431582459317719074248 PSP 2.0 MB None None documents None 1431582459317719074248 /docs/en/application-note/AN5135.pdf 2012374 /docs/en/application-note/AN5135.pdf AN5135 documents N N 2016-10-31 AN5135: 3-phase Sensorless PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN5135.pdf /docs/en/application-note/AN5135.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 5, 2016 645036621402383989 Application Note Y N AN5135: 3-phase Sensorless PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note 18 0 English Introducing the MTRCKTSBNZVM128 in a 3-phase Hall sensor-based BLDC motor control application. The MC9S12ZVML128 and MC9S12ZVMC128 devices offer the right blend of digital programmability and high precision analog to streamline the final design, integrating a 16-bit microcontroller build on proven S12 technology, an automotive voltage regulator, a LIN or CAN interface, and a gate driver unit to drive six external MOSFETs. 1367400780325718597409 PSP 1.5 MB None None documents None 1367400780325718597409 /docs/en/application-note/AN4718.pdf 1507458 /docs/en/application-note/AN4718.pdf AN4718 documents N N 2016-10-31 AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note /docs/en/application-note/AN4718.pdf /docs/en/application-note/AN4718.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Apr 30, 2013 645036621402383989 Application Note Y N AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note 19 8.0 English This application note provides guidelines for the board mounting and handling of NXP semiconductor packages. 1442088340466730481306 PSP 1.4 MB None None documents None 1442088340466730481306 /docs/en/application-note/AN10365.pdf 1359519 /docs/en/application-note/AN10365.pdf AN10365 documents N N 2016-10-08 AN10365, Surface mount reflow soldering - Application note /docs/en/application-note/AN10365.pdf /docs/en/application-note/AN10365.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Oct 1, 2021 645036621402383989 Application Note Y N AN10365, Surface mount reflow soldering - Application note PDF 20 0 English Showing how to configure the Pulse Width Modulator with Fault protection (PMF) module to achieve different output combinations. The PMF is a specialized and versatile Pulse Width Modulator (PWM) module aimed for motor control. 1442486237276702683769 PSP 1.4 MB None None documents None 1442486237276702683769 /docs/en/application-note/AN5190.pdf 1409572 /docs/en/application-note/AN5190.pdf AN5190 documents N N 2016-10-31 AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note /docs/en/application-note/AN5190.pdf /docs/en/application-note/AN5190.pdf Application Note N 645036621402383989 2024-07-15 en Sep 16, 2015 645036621402383989 Application Note Y N AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note 0 Chinese AN5190: This application note focuses on showing how to configure the PMF module to achieve different output combinations.&#13;&#10;&#13;&#10; 1442486237276702683769zh PSP 1.4 MB None None documents None 1442486237276702683769 /docs/zh/application-note/AN5190.pdf 1409572 /docs/zh/application-note/AN5190.pdf AN5190 documents N N 2016-10-31 AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note /docs/zh/application-note/AN5190.pdf /docs/zh/application-note/AN5190.pdf Application Note N 645036621402383989 2024-07-15 pdf N zh Sep 16, 2015 645036621402383989 Application Note Y N AN5190, S12ZVM Derivatives: Configuring PMF Module 21 1 English AN5122SW.zip /secured/assets/documents/en/application-note-software/AN5122SW.zip /webapp/Download?colCode=AN5122SW&docLang=en Introducing NXP’s LIN driver and relying on a “hands-on” example to get the LIN driver up and running. Providing some guidelines about using some functionalities like different frame types, configuring followers through LIN and considerations for going to sleep and waking up through LIN. 1429077223404713889665 PSP 2.5 MB None None documents None 1429077223404713889665 /docs/en/application-note/AN5122.pdf 2466657 /docs/en/application-note/AN5122.pdf AN5122 documents N N 2017-03-06 AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note /docs/en/application-note/AN5122.pdf /docs/en/application-note/AN5122.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Mar 5, 2017 645036621402383989 Application Note Y N AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note 22 0 English Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. 1370013855832696188368 PSP 2.2 MB Registration without Disclaimer None documents Extended 1370013855832696188368 /secured/assets/documents/en/application-note/AN4752.pdf 2220944 /secured/assets/documents/en/application-note/AN4752.pdf AN4752 documents Y N 2016-10-31 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /webapp/Download?colCode=AN4752&lang_cd=zh /secured/assets/documents/en/application-note/AN4752.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en May 31, 2013 645036621402383989 Application Note Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 23 1 English Introducing the High Voltage (HV) physical layer of the S12ZVM16 and S12ZVM32 MCUs. The HV layer is a physical interface that provides single-wire communication. Illustrating how to use the HV physical layer for PWM communication. 1439794892727718645145 PSP 655.0 KB None None documents None 1439794892727718645145 /docs/en/application-note/AN5176.pdf 655006 /docs/en/application-note/AN5176.pdf AN5176 documents N N 2016-10-31 AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note /docs/en/application-note/AN5176.pdf /docs/en/application-note/AN5176.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Sep 1, 2015 645036621402383989 Application Note Y N AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note 24 0 English Describing the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control drive with single shunt current sensing without a position sensor. This cost-effective solution benefits from the MC9S12ZVM device dedicated to motor control. 1473888635422711238399 PSP 2.7 MB None None documents None 1473888635422711238399 /docs/en/application-note/AN5327.pdf 2720028 /docs/en/application-note/AN5327.pdf AN5327 documents N N 2016-11-09 AN5327: 3-phase Sensorless Single-Shunt Current-Sensing PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN5327.pdf /docs/en/application-note/AN5327.pdf Application Note N 645036621402383989 2024-07-15 pdf N en Aug 24, 2016 645036621402383989 Application Note Y N AN5327: 3-phase Sensorless Single-Shunt Current-Sensing PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note 用户指南 User Guide 3 25 1 English User Guide for the Unified Bootloader for the S32K1x, S12ZVC and S12ZVM MCUs 1585586778554717783858 PSP 2.0 MB Registration without Disclaimer None documents Extended 1585586778554717783858 /secured/assets/documents/en/user-guide/UBLUG.pdf 1953836 /secured/assets/documents/en/user-guide/UBLUG.pdf UBLUG documents Y N 2020-03-30 Unified Bootloader – User Guide /secured/assets/documents/en/user-guide/UBLUG.pdf https://www.nxp.com/webapp/Download?colCode=UBLUG&docLang=en User Guide N 132339537837198660 2024-07-15 en Mar 30, 2020 132339537837198660 User Guide Y N Unified Bootloader – User Guide 1 Chinese Unified bootloader基于Unified 诊断服务(UDS)，传输协议和网络层服务协议(TP)。Unified bootloader旨在： ● 通过在新部件上使用现有的协议栈来提高bootloader的效率。 ● 通过重复使用久经验证的平台，提供高质量的新bootloader。 ● 向客户提供专业/生产级引导加载程序解决方案 1585586778554717783858zh PSP 2.0 MB Registration without Disclaimer None documents Extended 1585586778554717783858 /secured/assets/documents/zh/user-guide/UBLUG.pdf 1953836 /secured/assets/documents/zh/user-guide/UBLUG.pdf UBLUG documents Y N 2020-03-30 Unified Bootloader – User Guide /webapp/Download?colCode=UBLUG&lang_cd=zh /secured/assets/documents/zh/user-guide/UBLUG.pdf User Guide N 132339537837198660 2024-07-15 pdf Y zh Mar 30, 2020 132339537837198660 User Guide Y N Unified bootloader用户指南 26 2 English MC9S12ZVM128MCBUG: The S12ZVMx12EVB board is designed to drive 3-phase BLDC or PMSM motors, enabling implementation of motor control techniques. 1372788946364696959654 PSP 2.5 MB Registration without Disclaimer None documents Extended 1372788946364696959654 /secured/assets/documents/en/user-guide/MC9S12ZVM128MCBUG.pdf 2496069 /secured/assets/documents/en/user-guide/MC9S12ZVM128MCBUG.pdf MC9S12ZVM128MCBUG documents Y N 2016-10-31 MC9S12ZVM128MCBUG, S12ZVM12EVB Evaluation Board User Guide /webapp/Download?colCode=MC9S12ZVM128MCBUG&lang_cd=zh /secured/assets/documents/en/user-guide/MC9S12ZVM128MCBUG.pdf User Guide N 132339537837198660 2024-07-15 pdf Y en Mar 3, 2016 132339537837198660 User Guide Y N MC9S12ZVM128MCBUG, S12ZVM12EVB Evaluation Board User Guide 27 1.0 English S12ZVML-MINIBRD_UM: This document describes the S12ZVML-MINIBRD, the MC9S12ZVML128 small footprint board design, which is targeted at BLDC and PMSM sensorless motor control applications. 1396593585908707408572 PSP 2.8 MB Registration without Disclaimer None documents Extended 1396593585908707408572 /secured/assets/documents/en/user-guide/S12ZVML-MINIBRD_UM.pdf 2831520 /secured/assets/documents/en/user-guide/S12ZVML-MINIBRD_UM.pdf S12ZVML-MINIBRD_UM documents Y N 2016-10-31 S12ZVML-MINIBRD_UM, S12ZVML-MINIBRD User Manual: MC9S12ZVML128 Small Footprint Board for Sensorless Motor Control - User Manual /webapp/Download?colCode=S12ZVML-MINIBRD_UM&lang_cd=zh /secured/assets/documents/en/user-guide/S12ZVML-MINIBRD_UM.pdf User Guide N 132339537837198660 2024-07-15 pdf Y en Apr 3, 2014 132339537837198660 User Guide Y N S12ZVML-MINIBRD_UM, S12ZVML-MINIBRD User Manual: MC9S12ZVML128 Small Footprint Board for Sensorless Motor Control - User Manual 应用笔记软件 Application Note Software 7 28 0 English AN12086, This application note covers the operation and use of a simple serial Bootloader for the S12Z microcontroller families. 1519031338444714652439 PSP 2.0 MB None None documents None 1519031338444714652439 /docs/en/application-note-software/AN12086SW.ZIP 1999011 /docs/en/application-note-software/AN12086SW.ZIP AN12086SW documents N N 2018-02-19 AN12086SW - Application note software for AN12086 /docs/en/application-note-software/AN12086SW.ZIP /docs/en/application-note-software/AN12086SW.ZIP Application Note Software N 789425793691620447 2024-07-15 ZIP N en Feb 18, 2018 789425793691620447 Application Note Software Y N AN12086SW - Application note software for AN12086 29 1 English AN5122: This document provides an introduction to NXP&#8217;s LIN driver, with &#13;&#10;a "hands-on" example to get the LIN driver up and running.&#13;&#10; 1429076371611705839534 PSP 5.8 MB Registration without Disclaimer None documents Extended 1429076371611705839534 /secured/assets/documents/en/application-note-software/AN5122SW.zip 5821553 /secured/assets/documents/en/application-note-software/AN5122SW.zip AN5122SW documents Y N 2017-03-06 Application note software for AN5122 /webapp/Download?colCode=AN5122SW&lang_cd=zh /secured/assets/documents/en/application-note-software/AN5122SW.zip Application Note Software N 789425793691620447 2024-07-15 zip Y en Mar 5, 2017 789425793691620447 Application Note Software Y N Application note software for AN5122 30 0 English AN5190SW: This application note focuses on showing how to configure the PMF module to achieve different output combinations. 1442485929667719862692 PSP 117.2 KB None None documents None 1442485929667719862692 /docs/en/application-note-software/AN5190SW.zip 117182 /docs/en/application-note-software/AN5190SW.zip AN5190SW documents N N 2016-10-31 AN5190SW, S12ZVM Derivatives: Configuring PMF Module /docs/en/application-note-software/AN5190SW.zip /docs/en/application-note-software/AN5190SW.zip Application Note Software N 789425793691620447 2024-07-15 zip N en Sep 16, 2015 789425793691620447 Application Note Software Y N AN5190SW, S12ZVM Derivatives: Configuring PMF Module 31 0 English AN5176: This application note provides an introduction to the High Voltage physical layer of the S12ZVM32 and S12ZVM16 MCUs. &#13;&#10; 1439794579108729911338 PSP 933.5 KB None None documents None 1439794579108729911338 /docs/en/application-note-software/AN5176SW.zip 933473 /docs/en/application-note-software/AN5176SW.zip AN5176SW documents N N 2016-10-31 AN5176SW: Using the High Voltage Physical Layer - Application notes software /docs/en/application-note-software/AN5176SW.zip /docs/en/application-note-software/AN5176SW.zip Application Note Software N 789425793691620447 2024-07-15 zip N en Aug 16, 2015 789425793691620447 Application Note Software Y N AN5176SW: Using the High Voltage Physical Layer - Application notes software 32 0 English AN5168SW: This application note provides introduction to the Analog-to-Digital Converter module of the S12ZVM family.&#13;&#10; 1439360360904723253361 PSP 2.7 MB None None documents None 1439360360904723253361 /docs/en/application-note-software/AN5168SW.zip 2711941 /docs/en/application-note-software/AN5168SW.zip AN5168SW documents N N 2016-10-31 AN5168SW, Using the ADC Module in S12ZVM /docs/en/application-note-software/AN5168SW.zip /docs/en/application-note-software/AN5168SW.zip Application Note Software N 789425793691620447 2024-07-15 zip N en Aug 11, 2015 789425793691620447 Application Note Software Y N AN5168SW, Using the ADC Module in S12ZVM 33 0 English AN4975SW: This application note provides a simple MSCAN driver which will allow the user to enable CAN communications on any of the MagniV<sup>&#174;</sup> devices. 1407931813427736255742 PSP 814.0 KB None None documents None 1407931813427736255742 /docs/en/application-note-software/AN4975SW.zip 813956 /docs/en/application-note-software/AN4975SW.zip AN4975SW documents N N 2016-10-31 AN4975SW: Using MSCAN on the MagniV Family - Application notes software /docs/en/application-note-software/AN4975SW.zip /docs/en/application-note-software/AN4975SW.zip Application Note Software N 789425793691620447 2024-07-15 zip N en Aug 12, 2014 789425793691620447 Application Note Software Y N AN4975SW: Using MSCAN on the MagniV Family - Application notes software 34 1 English This application note introduces MC9S12ZVML128 device in a 3-phase Hall sensor-based BLDC motor control application. The MC9S12ZVML128 and MC9S12ZVMC128 devices offer right blend of digital programmability and high precision analog to streamline the final design. 1366971979400718035616 PSP 17.0 MB None None documents None 1366971979400718035616 /docs/en/application-note-software/AN4718SW.zip 17032477 /docs/en/application-note-software/AN4718SW.zip AN4718SW documents N N 2016-10-31 3-Phase BLDC Hall Sensor Application Using S12ZVM /docs/en/application-note-software/AN4718SW.zip /docs/en/application-note-software/AN4718SW.zip Application Note Software N 789425793691620447 2024-07-15 zip N en Jun 30, 2013 789425793691620447 Application Note Software Y N 3-Phase BLDC Hall Sensor Application Using S12ZVM 手册 Brochure 1 35 0 Japanese 統合されたS12 MagniV®ソリューションで、システム設計を簡素化するとともに市場投入までの期間を短縮できます 1630535268286723864752ja PSP 1.8 MB None None documents None 1630535268286723864752 /docs/ja/brochure/MAGNIVFAMBR.pdf 1823754 /docs/ja/brochure/MAGNIVFAMBR.pdf MAGNIVFAMBR documents N N 2021-09-01 MagniV mixed-signal microcontrollers – Brochure /docs/ja/brochure/MAGNIVFAMBR.pdf /docs/ja/brochure/MAGNIVFAMBR.pdf Brochure N 712453003803778552 2025-02-07 ja Nov 1, 2023 712453003803778552 Brochure Y N MagniV®ミックスド・シグナルMCU_パンフレット 0 English Simplify your system design and reduce time to market with integrated S12 MagniV® solutions 1630535268286723864752 PSP 1.8 MB None None documents None 1630535268286723864752 /docs/en/brochure/MAGNIVFAMBR.pdf 1823754 /docs/en/brochure/MAGNIVFAMBR.pdf MAGNIVFAMBR documents N N 2021-09-01 MagniV mixed-signal microcontrollers – Brochure /docs/en/brochure/MAGNIVFAMBR.pdf /docs/en/brochure/MAGNIVFAMBR.pdf Brochure N 712453003803778552 2025-02-07 pdf N en Sep 1, 2021 712453003803778552 Brochure Y N MagniV mixed-signal microcontrollers – Brochure 工程设计要点 Technical Notes 1 36 1 English EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. 1369851108709706895647 PSP 197.0 KB Registration without Disclaimer None documents Extended 1369851108709706895647 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 197012 /secured/assets/documents/en/engineering-bulletin/EB793.pdf EB793 documents Y N 2016-10-31 MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /webapp/Download?colCode=EB793&lang_cd=zh /secured/assets/documents/en/engineering-bulletin/EB793.pdf Technical Notes N 389245547230346745 2024-07-15 pdf Y en May 28, 2013 389245547230346745 Technical Notes Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 勘误表 Errata 6 37 1.0 English Errata file for the S12ZVM32 - 1N14N/0P33K 1458192851155698262580 PSP 120.3 KB None None documents None 1458192851155698262580 /docs/en/errata/S12ZVM32_1N14B.pdf 120323 /docs/en/errata/S12ZVM32_1N14B.pdf S12ZVM32_1N14N documents N N 2016-10-31 S12ZVM32 – Mask Set Errata for Mask 1N14N/0P33K /docs/en/errata/S12ZVM32_1N14B.pdf /docs/en/errata/S12ZVM32_1N14B.pdf Errata N 155452329886410597 2024-07-15 pdf N en Nov 17, 2023 155452329886410597 Errata Y N S12ZVM32 – Mask Set Errata for Mask 1N14N/0P33K 38 23 SEP 2020 English Mask Set Errata for Mask 3N95G/0P58A for S12ZVML12, S12ZVML64, S12ZVML32, S12ZVMC64, S12ZVMC12 - Rev. 23 SEP 2020 1600963069328704480475 PSP 156.8 KB None None documents None 1600963069328704480475 /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf 156763 /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf S12ZVM128_3N95G_0P58A documents N N 2020-09-24 S12ZVM128 – Mask Set Errata for Mask for 3N95G/0P58A /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf Errata N 155452329886410597 2024-07-15 pdf N en Sep 23, 2020 155452329886410597 Errata Y N S12ZVM128 – Mask Set Errata for Mask for 3N95G/0P58A 39 Rev. 1 July 2016 English Mask Set Errata for Mask 1N00R for S12ZVMC256 - Rev. 1 July 2016 1484823211443730567745 PSP 145.9 KB None None documents None 1484823211443730567745 /docs/en/errata/S12ZVMC256_1N00R.pdf 145867 /docs/en/errata/S12ZVMC256_1N00R.pdf S12ZVMC256_1N00R documents N N 2017-01-19 S12ZVMC256 – Mask Set Errata for Mask 1N00R /docs/en/errata/S12ZVMC256_1N00R.pdf /docs/en/errata/S12ZVMC256_1N00R.pdf Errata N 155452329886410597 2024-07-15 pdf N en Jan 18, 2017 155452329886410597 Errata Y N S12ZVMC256 – Mask Set Errata for Mask 1N00R 40 17 March 2016 English Mask Set Errata for Mask 3N95G for S12ZVML32, S12ZVML64, S12ZVML12, S12ZVMC64, S12ZVMC12 - Rev. 17 March 2016 1478234571198730895374 PSP 149.1 KB None None documents None 1478234571198730895374 /docs/en/errata/S12ZVM128_3N95G.pdf 149058 /docs/en/errata/S12ZVM128_3N95G.pdf S12ZVM128_3N95G documents N N 2016-11-06 S12ZVM128 – Mask Set Errata for Mask 3N95G /docs/en/errata/S12ZVM128_3N95G.pdf /docs/en/errata/S12ZVM128_3N95G.pdf Errata N 155452329886410597 2024-07-15 pdf N en Nov 3, 2016 155452329886410597 Errata Y N S12ZVM128 – Mask Set Errata for Mask 3N95G 41 24 June 2016 English Mask Set Errata for Mask 1N95G for S12ZVML32, S12ZVML64, S12ZVML12, S12ZVMC64, S12ZVMC12 - Rev. 24 June 2016 1412925544762705918561 PSP 166.4 KB None None documents None 1412925544762705918561 /docs/en/errata/MSE9S12ZVM128_1N95G.pdf 166411 /docs/en/errata/MSE9S12ZVM128_1N95G.pdf S12ZVM128_1N95G documents N N 2016-10-31 S12ZVM128 – Mask Set Errata for Mask 1N95G /docs/en/errata/MSE9S12ZVM128_1N95G.pdf /docs/en/errata/MSE9S12ZVM128_1N95G.pdf Errata N 155452329886410597 2024-07-15 pdf N en Aug 8, 2016 155452329886410597 Errata Y N S12ZVM128 – Mask Set Errata for Mask 1N95G 42 24 June 2016 English Mask Set Errata for Mask 2N95G for S12ZVML32, S12ZVML64, S12ZVML12, S12ZVMC64, S12ZVMC12 - Rev. 24 June 2016 1435131314479734580266 PSP 153.4 KB None None documents None 1435131314479734580266 /docs/en/errata/S12ZVM128_2N95G.pdf 153364 /docs/en/errata/S12ZVM128_2N95G.pdf S12ZVM128_2N95G documents N N 2016-10-31 S12ZVM128 – Mask Set Errata for Mask 2N95G /docs/en/errata/S12ZVM128_2N95G.pdf /docs/en/errata/S12ZVM128_2N95G.pdf Errata N 155452329886410597 2024-07-15 pdf N en Aug 8, 2016 155452329886410597 Errata Y N S12ZVM128 – Mask Set Errata for Mask 2N95G 产品变更通知 Product Change Notice 1 43 0 English 1405536026774725128968 PSP 3.5 KB None None documents None 1405536026774725128968 /docs/en/product-change-notice/PCN16319.htm 3450 /docs/en/product-change-notice/PCN16319.htm PCN16319 documents N N 2016-10-31 MC9S12ZVM Reference Manual Update /docs/en/product-change-notice/PCN16319.htm /docs/en/product-change-notice/PCN16319.htm Product Change Notice N 454076741825495278 2024-07-15 htm N en Jul 16, 2014 454076741825495278 Product Change Notice Y N MC9S12ZVM Reference Manual Update false 0 S12ZVM downloads zh-Hans true 1 Y PSP Y Y 产品变更通知 1 /docs/en/product-change-notice/PCN16319.htm 2016-10-31 1405536026774725128968 PSP 43 Jul 16, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16319.htm English documents 3450 None 454076741825495278 2024-07-15 N /docs/en/product-change-notice/PCN16319.htm MC9S12ZVM Reference Manual Update /docs/en/product-change-notice/PCN16319.htm documents 454076741825495278 Product Change Notice N en None Y htm 0 N N MC9S12ZVM Reference Manual Update 3.5 KB PCN16319 N 1405536026774725128968 勘误表 6 /docs/en/errata/S12ZVM32_1N14B.pdf 2016-10-31 1458192851155698262580 PSP 37 Nov 17, 2023 Errata Errata file for the S12ZVM32 - 1N14N/0P33K None /docs/en/errata/S12ZVM32_1N14B.pdf English documents 120323 None 155452329886410597 2024-07-15 N /docs/en/errata/S12ZVM32_1N14B.pdf S12ZVM32 – Mask Set Errata for Mask 1N14N/0P33K /docs/en/errata/S12ZVM32_1N14B.pdf documents 155452329886410597 Errata N en None Y pdf 1.0 N N S12ZVM32 – Mask Set Errata for Mask 1N14N/0P33K 120.3 KB S12ZVM32_1N14N N 1458192851155698262580 /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf 2020-09-24 1600963069328704480475 PSP 38 Sep 23, 2020 Errata Mask Set Errata for Mask 3N95G/0P58A for S12ZVML12, S12ZVML64, S12ZVML32, S12ZVMC64, S12ZVMC12 - Rev. 23 SEP 2020 None /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf English documents 156763 None 155452329886410597 2024-07-15 N /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf S12ZVM128 – Mask Set Errata for Mask for 3N95G/0P58A /docs/en/errata/S12ZVM128_3N95G_0P58A.pdf documents 155452329886410597 Errata N en None Y pdf 23 SEP 2020 N N S12ZVM128 – Mask Set Errata for Mask for 3N95G/0P58A 156.8 KB S12ZVM128_3N95G_0P58A N 1600963069328704480475 /docs/en/errata/S12ZVMC256_1N00R.pdf 2017-01-19 1484823211443730567745 PSP 39 Jan 18, 2017 Errata Mask Set Errata for Mask 1N00R for S12ZVMC256 - Rev. 1 July 2016 None /docs/en/errata/S12ZVMC256_1N00R.pdf English documents 145867 None 155452329886410597 2024-07-15 N /docs/en/errata/S12ZVMC256_1N00R.pdf S12ZVMC256 – Mask Set Errata for Mask 1N00R /docs/en/errata/S12ZVMC256_1N00R.pdf documents 155452329886410597 Errata N en None Y pdf Rev. 1 July 2016 N N S12ZVMC256 – Mask Set Errata for Mask 1N00R 145.9 KB S12ZVMC256_1N00R N 1484823211443730567745 /docs/en/errata/S12ZVM128_3N95G.pdf 2016-11-06 1478234571198730895374 PSP 40 Nov 3, 2016 Errata Mask Set Errata for Mask 3N95G for S12ZVML32, S12ZVML64, S12ZVML12, S12ZVMC64, S12ZVMC12 - Rev. 17 March 2016 None /docs/en/errata/S12ZVM128_3N95G.pdf English documents 149058 None 155452329886410597 2024-07-15 N /docs/en/errata/S12ZVM128_3N95G.pdf S12ZVM128 – Mask Set Errata for Mask 3N95G /docs/en/errata/S12ZVM128_3N95G.pdf documents 155452329886410597 Errata N en None Y pdf 17 March 2016 N N S12ZVM128 – Mask Set Errata for Mask 3N95G 149.1 KB S12ZVM128_3N95G N 1478234571198730895374 /docs/en/errata/MSE9S12ZVM128_1N95G.pdf 2016-10-31 1412925544762705918561 PSP 41 Aug 8, 2016 Errata Mask Set Errata for Mask 1N95G for S12ZVML32, S12ZVML64, S12ZVML12, S12ZVMC64, S12ZVMC12 - Rev. 24 June 2016 None /docs/en/errata/MSE9S12ZVM128_1N95G.pdf English documents 166411 None 155452329886410597 2024-07-15 N /docs/en/errata/MSE9S12ZVM128_1N95G.pdf S12ZVM128 – Mask Set Errata for Mask 1N95G /docs/en/errata/MSE9S12ZVM128_1N95G.pdf documents 155452329886410597 Errata N en None Y pdf 24 June 2016 N N S12ZVM128 – Mask Set Errata for Mask 1N95G 166.4 KB S12ZVM128_1N95G N 1412925544762705918561 /docs/en/errata/S12ZVM128_2N95G.pdf 2016-10-31 1435131314479734580266 PSP 42 Aug 8, 2016 Errata Mask Set Errata for Mask 2N95G for S12ZVML32, S12ZVML64, S12ZVML12, S12ZVMC64, S12ZVMC12 - Rev. 24 June 2016 None /docs/en/errata/S12ZVM128_2N95G.pdf English documents 153364 None 155452329886410597 2024-07-15 N /docs/en/errata/S12ZVM128_2N95G.pdf S12ZVM128 – Mask Set Errata for Mask 2N95G /docs/en/errata/S12ZVM128_2N95G.pdf documents 155452329886410597 Errata N en None Y pdf 24 June 2016 N N S12ZVM128 – Mask Set Errata for Mask 2N95G 153.4 KB S12ZVM128_2N95G N 1435131314479734580266 参考手册 2 /secured/assets/documents/en/reference-manual/MC9S12ZVMRM.pdf 2016-11-30 1456314440944692831434 PSP 2 Sep 6, 2023 Reference Manual MC9S12ZVMRM: The MC9S12ZVM-Family is an automotive 16-bit microcontroller family using the 180nm NVM + UHV technology that offers the capability to integrate 40 V analog components. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MC9S12ZVMRM.pdf English documents 15231665 None 500633505221135046 2024-12-12 Y /webapp/Download?colCode=MC9S12ZVMRM&lang_cd=zh MC9S12ZVMRM: MC9S12ZVM-Family Reference Manual and Datasheet /secured/assets/documents/en/reference-manual/MC9S12ZVMRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 2.15 Y N MC9S12ZVMRM: MC9S12ZVM-Family Reference Manual and Datasheet 15.2 MB MC9S12ZVMRM N 1456314440944692831434 /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf 2016-10-31 1360836753606710339755 PSP 3 Jan 13, 2013 Reference Manual S12ZCPURM: This manual describes the features and operation of the central processing unit, or S12Z CPU, used in HCS12Z microcontrollers. 68HC12, HCS12, HCS12X, and HCS12Z represent four generations of 16-bit controllers with all of them being derived from the industry standard M68HC11. Registration without Disclaimer /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf English documents 2981526 None 500633505221135046 2024-07-15 Y /webapp/Download?colCode=S12ZCPURM&lang_cd=zh CPU S12Z Reference Manual - Reference Manual /secured/assets/documents/en/reference-manual/S12ZCPU_RM_V1.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1.01 Y N CPU S12Z Reference Manual - Reference Manual 3.0 MB S12ZCPURM N 1360836753606710339755 工程设计要点 1 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 2016-10-31 1369851108709706895647 PSP 36 May 28, 2013 Technical Notes EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. Registration without Disclaimer /secured/assets/documents/en/engineering-bulletin/EB793.pdf English documents 197012 None 389245547230346745 2024-07-15 Y /webapp/Download?colCode=EB793&lang_cd=zh MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /secured/assets/documents/en/engineering-bulletin/EB793.pdf documents 389245547230346745 Technical Notes N en Extended Y pdf 1 Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 197.0 KB EB793 N 1369851108709706895647 应用笔记 21 /docs/zh/application-note/AN4723.pdf 2016-10-31 1372857997482752017970zh PSP 4 Application Note None /docs/zh/application-note/AN4723.pdf Chinese documents 463109 None 645036621402383989 2024-07-15 N /docs/zh/application-note/AN4723.pdf AN4723，S12Z MagniV引导加载程序 - 应用说明 /docs/zh/application-note/AN4723.pdf documents 645036621402383989 Application Note N zh None pdf 0 N N AN4723: S12Z MagniV Bootloader – Application Note 463.1 KB AN4723 N 1372857997482752017970 /docs/en/application-note/AN5082.pdf 2016-10-31 1426254102361716153980 PSP 5 Mar 15, 2015 Application Note Introducing some considerations on how to enable MagniV MCU family for 24 V applications. In particular cases, the common PCB design can be used for both 12 V and 24 V applications like cars or trucks. These considerations are based on the ISO 16750-1, ISO 16750-2, ISO 7637-2, and ISO 7637-3 standards, taking into account the device power supply chain, I/O pins, and the physical communication layer. None /docs/en/application-note/AN5082.pdf English documents 425820 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5082.pdf AN5082: MagniV MCUs in 24V Applications – Application Note /docs/en/application-note/AN5082.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5082: MagniV MCUs in 24V Applications – Application Note 425.8 KB AN5082 N 1426254102361716153980 /docs/en/application-note/AN5201.pdf 2021-07-21 1444037247767723571162 PSP 6 Sep 30, 2015 Application Note Guiding on integrating the Local Interconnect Network (LIN) driver with the BLDC sensorless motor controller software provided with the S12ZVM128EVB. None /docs/en/application-note/AN5201.pdf English documents 1079043 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5201.pdf AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note /docs/en/application-note/AN5201.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5201: Integrating the LIN Driver with BLDC Sensorless Motor Controller – Application Note 1.1 MB AN5201 N 1444037247767723571162 /secured/assets/documents/en/application-note/AN5207.pdf 2016-10-31 1446187611320710336808 PSP 7 Dec 12, 2017 Application Note Describing hardware design guidelines for S12ZVM Microcontrollers. The MC9S12ZVM family is an automotive 16-bit microcontroller family using the NVM + UHV technology to integrate 40 V analog components. This family reuses many features from the existing S12/S12X portfolio. Registration without Disclaimer /secured/assets/documents/en/application-note/AN5207.pdf English documents 2583780 None 645036621402383989 2024-07-17 Y /webapp/Download?colCode=AN5207&lang_cd=zh AN5207: Hardware Design Guidelines for S12ZVM – Application Note /secured/assets/documents/en/application-note/AN5207.pdf documents 645036621402383989 Application Note N en Extended Y pdf 2 Y N AN5207: Hardware Design Guidelines for S12ZVM – Application Note 2.6 MB AN5207 N 1446187611320710336808 /docs/en/application-note/AN12943.pdf 2020-08-09 1597036142864696703430 PSP 8 Jun 30, 2020 Application Note Describing how the Spurious interrupt in S12Z family is a protective mechanism for unknown interrupt sources and makes CPU run under predictable action. The root cause to enter spurious interrupt is that an interrupt request becomes inactive after the interrupt has been recognized, but before the vector request. The synchronous and sequential operation could make the system robust and lower the possibility of entering the protective system mechanism. None /docs/en/application-note/AN12943.pdf English documents 311289 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN12943.pdf AN12943: Spurious interrupt on MagniV – Application Note /docs/en/application-note/AN12943.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN12943: Spurious interrupt on MagniV – Application Note 311.3 KB AN12943 N 1597036142864696703430 /docs/en/application-note/AN5389.pdf 2017-02-23 1487849547729707137629 PSP 9 Feb 22, 2017 Application Note Focusing on implementing a bootloader that receives the new software to program through LIN. Implementing a bootloader has become more frequent with the growth of memory size in automotive MCUs and LIN being one of the most widely used automotive communication protocols. None /docs/en/application-note/AN5389.pdf English documents 423385 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5389.pdf AN5389: S12Z MagniV LIN Bootloader – Application Note /docs/en/application-note/AN5389.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5389: S12Z MagniV LIN Bootloader – Application Note 423.4 KB AN5389 N 1487849547729707137629 /docs/en/application-note/AN4975.pdf 2016-10-31 1407932756289724724697 PSP 10 Aug 11, 2014 Application Note Providing a simple MSCAN driver allowing users to enable CAN communications on any of the MagniV devices and explaining the configuration of the MSCAN registers. Offering a simple software driver for CAN communications on the MagniV devices and does not intend to give a full in-depth explanation of the CAN protocol. None /docs/en/application-note/AN4975.pdf English documents 745522 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4975.pdf AN4975: Using MSCAN on the MagniV Family – Application Note /docs/en/application-note/AN4975.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4975: Using MSCAN on the MagniV Family – Application Note 745.5 KB AN4975 N 1407932756289724724697 /secured/assets/documents/en/application-note/AN12086.pdf 2018-02-15 1518690072353719323097 PSP 11 Feb 18, 2018 Application Note Covering the operation and use of a simple serial Bootloader for the S12Z microcontroller families. The Bootloader can be a convenient way to support programming during production or “in-system”, where support for the dedicated Background Debug interface (BDM) may not be available. Users must pre-program the S12Z MCU with the Bootloader during production or at a programming vendor. Registration without Disclaimer /secured/assets/documents/en/application-note/AN12086.pdf English documents 530397 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN12086&lang_cd=zh AN12086: Simple Serial Bootloader for S12Z – Application Note /secured/assets/documents/en/application-note/AN12086.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN12086: Simple Serial Bootloader for S12Z – Application Note 530.4 KB AN12086 N 1518690072353719323097 /docs/en/application-note/AN11967.pdf 2017-05-24 1495618668434697746854 PSP 12 May 23, 2017 Application Note Presenting information to enable S12ZVM family into a 48 V motor control system. Giving an accurate description of how S12ZVM devices fully support the standard LV 148. None /docs/en/application-note/AN11967.pdf English documents 403821 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN11967.pdf AN11967: S12ZVM Family in 48 V Applications – Application Note /docs/en/application-note/AN11967.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN11967: S12ZVM Family in 48 V Applications – Application Note 403.8 KB AN11967 N 1495618668434697746854 /docs/en/application-note/AN4753.pdf 2016-10-31 1369937932059742568603 PSP 13 May 30, 2013 Application Note Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. None /docs/en/application-note/AN4753.pdf English documents 477314 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4753.pdf AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 477.3 KB AN4753 N 1369937932059742568603 /docs/en/application-note/AN5330.pdf 2017-06-19 1497862136357685756409 PSP 14 Jun 18, 2017 Application Note Guiding users through the migration process from one S12ZVM to another S12ZVM microcontroller. Migrating between the two devices may require hardware and/or software changes. The S12ZVM family gives the smallest, most efficient, and scalable BLDC/PMPSM motor control solution for industrial and automotive applications. None /docs/en/application-note/AN5330.pdf English documents 993646 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5330.pdf AN5330: Migration Guide for S12ZVM Devices – Application Note /docs/en/application-note/AN5330.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5330: Migration Guide for S12ZVM Devices – Application Note 993.6 KB AN5330 N 1497862136357685756409 /docs/zh/application-note/AN4704.pdf 2016-10-31 1376919947986721925229zh PSP 15 Application Note None /docs/zh/application-note/AN4704.pdf Chinese documents 2648009 None 645036621402383989 2024-07-15 N /docs/zh/application-note/AN4704.pdf AN4704，采用S12 MagniV<sup>®</sup> MC9S12ZVM的3相无传感器BLDC电机控制套件 - 应用笔记 /docs/zh/application-note/AN4704.pdf documents 645036621402383989 Application Note N zh None pdf 1 N N AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note 2.6 MB AN4704 N 1376919947986721925229 /docs/en/application-note/AN5168.pdf 2016-10-31 1439360665499699702791 PSP 16 Aug 11, 2015 Application Note Introducing the Analog-to-Digital Converter module of the S12ZVM family. The ADC12B_LBA is a successive approximation analog-to-digital converter with a maximum of N internal channel. This module has List Based Architecture (LBA), allowing the user to have a free selection of the conversion channel and the flexibility to have different conversion sequences. None /docs/en/application-note/AN5168.pdf English documents 667616 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5168.pdf AN5168: Using the ADC Module in S12ZVM – Application Note /docs/en/application-note/AN5168.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5168: Using the ADC Module in S12ZVM – Application Note 667.6 KB AN5168 N 1439360665499699702791 /docs/en/application-note/AN5135.pdf 2016-10-31 1431582459317719074248 PSP 17 May 5, 2016 Application Note Outlining the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control drive with 2-shunt current sensing without a position sensor. This cost-effective solution benefits from MC9S12ZVM device dedicated to motor control. None /docs/en/application-note/AN5135.pdf English documents 2012374 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5135.pdf AN5135: 3-phase Sensorless PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN5135.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5135: 3-phase Sensorless PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note 2.0 MB AN5135 N 1431582459317719074248 /docs/en/application-note/AN4718.pdf 2016-10-31 1367400780325718597409 PSP 18 Apr 30, 2013 Application Note Introducing the MTRCKTSBNZVM128 in a 3-phase Hall sensor-based BLDC motor control application. The MC9S12ZVML128 and MC9S12ZVMC128 devices offer the right blend of digital programmability and high precision analog to streamline the final design, integrating a 16-bit microcontroller build on proven S12 technology, an automotive voltage regulator, a LIN or CAN interface, and a gate driver unit to drive six external MOSFETs. None /docs/en/application-note/AN4718.pdf English documents 1507458 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4718.pdf AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note /docs/en/application-note/AN4718.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note 1.5 MB AN4718 N 1367400780325718597409 /docs/en/application-note/AN10365.pdf 2016-10-08 1442088340466730481306 PSP 19 Oct 1, 2021 Application Note This application note provides guidelines for the board mounting and handling of NXP semiconductor packages. PDF None /docs/en/application-note/AN10365.pdf English documents 1359519 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN10365.pdf AN10365, Surface mount reflow soldering - Application note /docs/en/application-note/AN10365.pdf documents 645036621402383989 Application Note N en None Y pdf 8.0 N N AN10365, Surface mount reflow soldering - Application note 1.4 MB AN10365 N 1442088340466730481306 /docs/zh/application-note/AN5190.pdf 2016-10-31 1442486237276702683769zh PSP 20 Sep 16, 2015 Application Note AN5190: This application note focuses on showing how to configure the PMF module to achieve different output combinations.&#13;&#10;&#13;&#10; None /docs/zh/application-note/AN5190.pdf Chinese documents 1409572 None 645036621402383989 2024-07-15 N /docs/zh/application-note/AN5190.pdf AN5190, S12ZVM Derivatives: Configuring PMF Module /docs/zh/application-note/AN5190.pdf documents 645036621402383989 Application Note N zh None Y pdf 0 N N AN5190: S12ZVM Derivatives: Configuring PMF Module – Application Note 1.4 MB AN5190 N 1442486237276702683769 /docs/en/application-note/AN5122.pdf 2017-03-06 1429077223404713889665 PSP 21 Mar 5, 2017 Application Note Introducing NXP’s LIN driver and relying on a “hands-on” example to get the LIN driver up and running. Providing some guidelines about using some functionalities like different frame types, configuring followers through LIN and considerations for going to sleep and waking up through LIN. None /docs/en/application-note/AN5122.pdf English documents 2466657 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5122.pdf AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note /docs/en/application-note/AN5122.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5122: Using NXP’s LIN Driver with the MagniV Family – Application Note 2.5 MB AN5122 N 1429077223404713889665 /secured/assets/documents/en/application-note/AN4752.pdf 2016-10-31 1370013855832696188368 PSP 22 May 31, 2013 Application Note Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4752.pdf English documents 2220944 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN4752&lang_cd=zh AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /secured/assets/documents/en/application-note/AN4752.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 2.2 MB AN4752 N 1370013855832696188368 /docs/en/application-note/AN5176.pdf 2016-10-31 1439794892727718645145 PSP 23 Sep 1, 2015 Application Note Introducing the High Voltage (HV) physical layer of the S12ZVM16 and S12ZVM32 MCUs. The HV layer is a physical interface that provides single-wire communication. Illustrating how to use the HV physical layer for PWM communication. None /docs/en/application-note/AN5176.pdf English documents 655006 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5176.pdf AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note /docs/en/application-note/AN5176.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N AN5176: Using the High Voltage Physical Layer in the S12ZVM – Application Note 655.0 KB AN5176 N 1439794892727718645145 /docs/en/application-note/AN5327.pdf 2016-11-09 1473888635422711238399 PSP 24 Aug 24, 2016 Application Note Describing the design of a 3-phase Permanent Magnet Synchronous Motor (PMSM) vector control drive with single shunt current sensing without a position sensor. This cost-effective solution benefits from the MC9S12ZVM device dedicated to motor control. None /docs/en/application-note/AN5327.pdf English documents 2720028 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN5327.pdf AN5327: 3-phase Sensorless Single-Shunt Current-Sensing PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note /docs/en/application-note/AN5327.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5327: 3-phase Sensorless Single-Shunt Current-Sensing PMSM Motor Control Kit with MagniV MC9S12ZVM – Application Note 2.7 MB AN5327 N 1473888635422711238399 应用笔记软件 7 /docs/en/application-note-software/AN12086SW.ZIP 2018-02-19 1519031338444714652439 PSP 28 Feb 18, 2018 Application Note Software AN12086, This application note covers the operation and use of a simple serial Bootloader for the S12Z microcontroller families. None /docs/en/application-note-software/AN12086SW.ZIP English documents 1999011 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN12086SW.ZIP AN12086SW - Application note software for AN12086 /docs/en/application-note-software/AN12086SW.ZIP documents 789425793691620447 Application Note Software N en None Y ZIP 0 N N AN12086SW - Application note software for AN12086 2.0 MB AN12086SW N 1519031338444714652439 /secured/assets/documents/en/application-note-software/AN5122SW.zip 2017-03-06 1429076371611705839534 PSP 29 Mar 5, 2017 Application Note Software AN5122: This document provides an introduction to NXP&#8217;s LIN driver, with &#13;&#10;a "hands-on" example to get the LIN driver up and running.&#13;&#10; Registration without Disclaimer /secured/assets/documents/en/application-note-software/AN5122SW.zip English documents 5821553 None 789425793691620447 2024-07-15 Y /webapp/Download?colCode=AN5122SW&lang_cd=zh Application note software for AN5122 /secured/assets/documents/en/application-note-software/AN5122SW.zip documents 789425793691620447 Application Note Software N en Extended Y zip 1 Y N Application note software for AN5122 5.8 MB AN5122SW N 1429076371611705839534 /docs/en/application-note-software/AN5190SW.zip 2016-10-31 1442485929667719862692 PSP 30 Sep 16, 2015 Application Note Software AN5190SW: This application note focuses on showing how to configure the PMF module to achieve different output combinations. None /docs/en/application-note-software/AN5190SW.zip English documents 117182 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN5190SW.zip AN5190SW, S12ZVM Derivatives: Configuring PMF Module /docs/en/application-note-software/AN5190SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N AN5190SW, S12ZVM Derivatives: Configuring PMF Module 117.2 KB AN5190SW N 1442485929667719862692 /docs/en/application-note-software/AN5176SW.zip 2016-10-31 1439794579108729911338 PSP 31 Aug 16, 2015 Application Note Software AN5176: This application note provides an introduction to the High Voltage physical layer of the S12ZVM32 and S12ZVM16 MCUs. &#13;&#10; None /docs/en/application-note-software/AN5176SW.zip English documents 933473 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN5176SW.zip AN5176SW: Using the High Voltage Physical Layer - Application notes software /docs/en/application-note-software/AN5176SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N AN5176SW: Using the High Voltage Physical Layer - Application notes software 933.5 KB AN5176SW N 1439794579108729911338 /docs/en/application-note-software/AN5168SW.zip 2016-10-31 1439360360904723253361 PSP 32 Aug 11, 2015 Application Note Software AN5168SW: This application note provides introduction to the Analog-to-Digital Converter module of the S12ZVM family.&#13;&#10; None /docs/en/application-note-software/AN5168SW.zip English documents 2711941 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN5168SW.zip AN5168SW, Using the ADC Module in S12ZVM /docs/en/application-note-software/AN5168SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N AN5168SW, Using the ADC Module in S12ZVM 2.7 MB AN5168SW N 1439360360904723253361 /docs/en/application-note-software/AN4975SW.zip 2016-10-31 1407931813427736255742 PSP 33 Aug 12, 2014 Application Note Software AN4975SW: This application note provides a simple MSCAN driver which will allow the user to enable CAN communications on any of the MagniV<sup>&#174;</sup> devices. None /docs/en/application-note-software/AN4975SW.zip English documents 813956 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN4975SW.zip AN4975SW: Using MSCAN on the MagniV Family - Application notes software /docs/en/application-note-software/AN4975SW.zip documents 789425793691620447 Application Note Software N en None Y zip 0 N N AN4975SW: Using MSCAN on the MagniV Family - Application notes software 814.0 KB AN4975SW N 1407931813427736255742 /docs/en/application-note-software/AN4718SW.zip 2016-10-31 1366971979400718035616 PSP 34 Jun 30, 2013 Application Note Software This application note introduces MC9S12ZVML128 device in a 3-phase Hall sensor-based BLDC motor control application. The MC9S12ZVML128 and MC9S12ZVMC128 devices offer right blend of digital programmability and high precision analog to streamline the final design. None /docs/en/application-note-software/AN4718SW.zip English documents 17032477 None 789425793691620447 2024-07-15 N /docs/en/application-note-software/AN4718SW.zip 3-Phase BLDC Hall Sensor Application Using S12ZVM /docs/en/application-note-software/AN4718SW.zip documents 789425793691620447 Application Note Software N en None Y zip 1 N N 3-Phase BLDC Hall Sensor Application Using S12ZVM 17.0 MB AN4718SW N 1366971979400718035616 手册 1 /docs/en/brochure/MAGNIVFAMBR.pdf 2021-09-01 1630535268286723864752 PSP 35 Sep 1, 2021 Brochure Simplify your system design and reduce time to market with integrated S12 MagniV® solutions None /docs/en/brochure/MAGNIVFAMBR.pdf English documents 1823754 None 712453003803778552 2025-02-07 N /docs/en/brochure/MAGNIVFAMBR.pdf MagniV mixed-signal microcontrollers – Brochure /docs/en/brochure/MAGNIVFAMBR.pdf documents 712453003803778552 Brochure N en None Y pdf 0 N N MagniV mixed-signal microcontrollers – Brochure 1.8 MB MAGNIVFAMBR N 1630535268286723864752 用户指南 3 /secured/assets/documents/zh/user-guide/UBLUG.pdf 2020-03-30 1585586778554717783858zh PSP 25 Mar 30, 2020 User Guide Unified bootloader基于Unified 诊断服务(UDS)，传输协议和网络层服务协议(TP)。Unified bootloader旨在： ● 通过在新部件上使用现有的协议栈来提高bootloader的效率。 ● 通过重复使用久经验证的平台，提供高质量的新bootloader。 ● 向客户提供专业/生产级引导加载程序解决方案 Registration without Disclaimer /secured/assets/documents/zh/user-guide/UBLUG.pdf Chinese documents 1953836 None 132339537837198660 2024-07-15 Y /webapp/Download?colCode=UBLUG&lang_cd=zh Unified bootloader用户指南 /secured/assets/documents/zh/user-guide/UBLUG.pdf documents 132339537837198660 User Guide N zh Extended Y pdf 1 Y N Unified Bootloader – User Guide 2.0 MB UBLUG N 1585586778554717783858 /secured/assets/documents/en/user-guide/MC9S12ZVM128MCBUG.pdf 2016-10-31 1372788946364696959654 PSP 26 Mar 3, 2016 User Guide MC9S12ZVM128MCBUG: The S12ZVMx12EVB board is designed to drive 3-phase BLDC or PMSM motors, enabling implementation of motor control techniques. Registration without Disclaimer /secured/assets/documents/en/user-guide/MC9S12ZVM128MCBUG.pdf English documents 2496069 None 132339537837198660 2024-07-15 Y /webapp/Download?colCode=MC9S12ZVM128MCBUG&lang_cd=zh MC9S12ZVM128MCBUG, S12ZVM12EVB Evaluation Board User Guide /secured/assets/documents/en/user-guide/MC9S12ZVM128MCBUG.pdf documents 132339537837198660 User Guide N en Extended Y pdf 2 Y N MC9S12ZVM128MCBUG, S12ZVM12EVB Evaluation Board User Guide 2.5 MB MC9S12ZVM128MCBUG N 1372788946364696959654 /secured/assets/documents/en/user-guide/S12ZVML-MINIBRD_UM.pdf 2016-10-31 1396593585908707408572 PSP 27 Apr 3, 2014 User Guide S12ZVML-MINIBRD_UM: This document describes the S12ZVML-MINIBRD, the MC9S12ZVML128 small footprint board design, which is targeted at BLDC and PMSM sensorless motor control applications. Registration without Disclaimer /secured/assets/documents/en/user-guide/S12ZVML-MINIBRD_UM.pdf English documents 2831520 None 132339537837198660 2024-07-15 Y /webapp/Download?colCode=S12ZVML-MINIBRD_UM&lang_cd=zh S12ZVML-MINIBRD_UM, S12ZVML-MINIBRD User Manual: MC9S12ZVML128 Small Footprint Board for Sensorless Motor Control - User Manual /secured/assets/documents/en/user-guide/S12ZVML-MINIBRD_UM.pdf documents 132339537837198660 User Guide N en Extended Y pdf 1.0 Y N S12ZVML-MINIBRD_UM, S12ZVML-MINIBRD User Manual: MC9S12ZVML128 Small Footprint Board for Sensorless Motor Control - User Manual 2.8 MB S12ZVML-MINIBRD_UM N 1396593585908707408572 简介 1 /docs/zh/fact-sheet/S12ZVMFS.pdf 2016-10-31 1329866488521699646177zh PSP 1 Fact Sheet 简介 None /docs/zh/fact-sheet/S12ZVMFS.pdf Chinese 296436 None Fact Sheet 2022-12-07 N /docs/zh/fact-sheet/S12ZVMFS.pdf S12 MagniV<sup>®</sup> S12ZVM - 简介 /docs/zh/fact-sheet/S12ZVMFS.pdf documents 736675474163315314 Fact Sheet N Y zh None t523 2 N N S12 MagniV<sup>®</sup> S12ZVM - Fact Sheet 296.4 KB S12ZVMFS N 1329866488521699646177 true Y Products

文档

快速参考恩智浦 文档类别.

筛选条件

1-10 / 43 文件

紧凑列表

产品变更通知 (1)
勘误表 (6)
参考手册 (2)
工程设计要点 (1)
展开

设计文件

快速参考恩智浦 设计文件类型.
筛选条件

3 设计文件

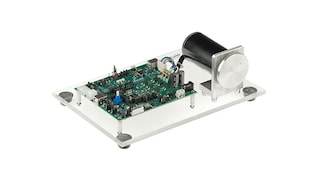

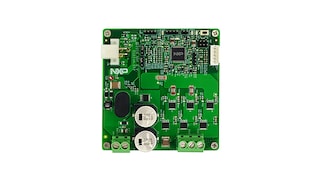

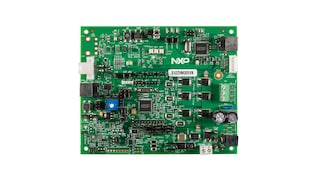

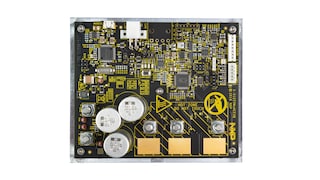

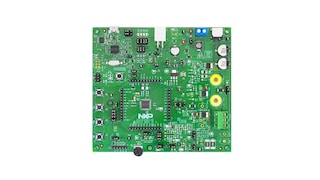

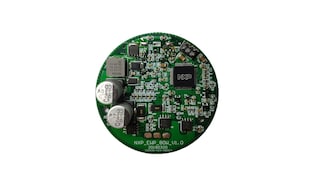

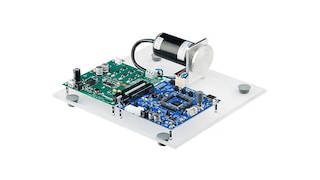

硬件
