MCUXpresso集成开发环境（IDE）

MCUXpresso-IDE

滚动图片以放大

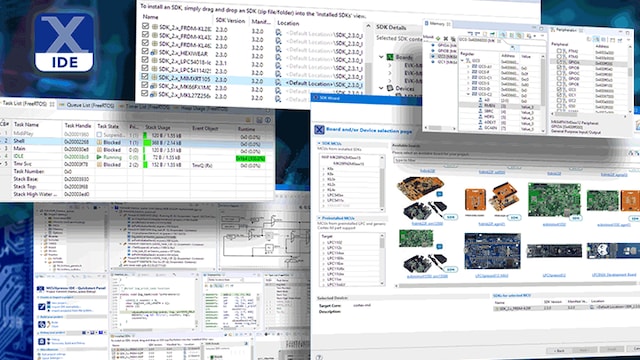

MCUXpresso IDE为开发人员带来一个易于使用的基于Eclipse的开发环境，适用于基于Arm® Cortex®-M内核的恩智浦® MCU，包括通用、跨界和无线MCU。MCUXpresso IDE提供高级编辑、编译和调试功能，增加了MCU专用的调试视图、代码跟踪和分析、多核调试和集成配置工具。MCUXpresso IDE调试连接采用来自恩智浦、P&E Micro® 和SEGGER® 优化的开源和商用硬件调试器，支持Freedom、塔式® 系统、LPCXpresso、基于i.MX RT的EVK，以及定制开发板。

框图

MCUXpresso IDE结构框图

MCUXpresso IDE Block Diagram
获取框图PDF

特性

功能强大，易于使用

  • 基于广受欢迎的Eclipse平台，可使用广泛可用的插件进行高度扩展
  • 带有规则着色的高级编辑
  • 使用内置SDK选择工具从SDK Builder、GitHub或Open-CMSIS-Packs添加软件包
  • 业界标准的GNU工具链有多种库可供选择：优化的C库或标准的GNU Newlib/Nano库，支持半托管
  • 新的项目向导和简单的SDK示例导入
  • 集成配置工具，包括引脚、时钟、外设和可信执行工具
  • 集成GUI闪存编程工具
  • Github项目开发支持

高级调试功能

  • SWO跟踪和分析（通过SEGGER J-Link、PE Micro和LPC-Link2硬件调试器）
  • 指令跟踪（适用于使能ETB/MTB的设备）
  • 丰富的查看功能，适用于外设寄存器、全局变量、文本/图形实时变量
  • 支持FreeRTOS、Azure RTOS ThreadX、Zephyr RTOS和MQX
  • Image Info视图提供详细的整体内存使用情况、内存区域内容以及包括软件栈使用情况信息在内的静态调用图
  • “堆和软件栈使用情况”视图可跟踪裸机项目中堆和软件栈的使用情况
  • 通过分析和代码检测能源/功率/电流测量（在硬件支持的情况下）
  • IDE控制的启动模式配置选项（使能MCU-Link的评估板）

支持的主机

  • Ubuntu 20.04.2 LTS/22.04 LTS
  • MacOS 11.x Big Sur、12.x Monterey、13.x Ventura
  • Microsoft® Windows 10和11

支持的器件

系统需求

下载

快速参考恩智浦 软件类型.
筛选条件

1 下载

  • 开发IDE和生成工具

    MCUXpresso Integrated Development Environment (IDE)

    FLEXERA版本 AllJan 14, 20251 KBMCUXPRESSO
    下载

注意: 推荐在电脑端下载软件，体验更佳。
