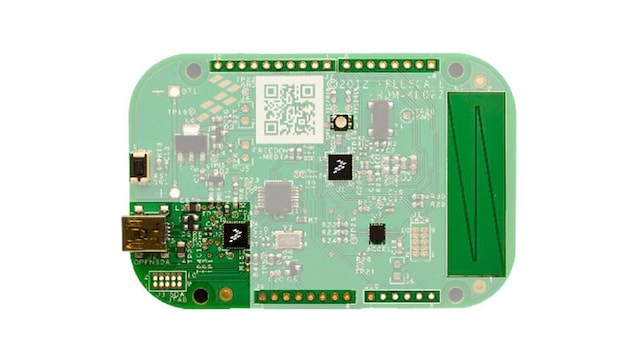

Freedom Development Platform for the Kinetis® KL02 Family

FRDM-KL02Z
正常供应

滚动图片以放大

FRDM-KL02Z是一款超低成本开发平台，采用基于Arm® Cortex®-M0+处理器的Kinetis® L系列 KL02。

Features include the open standard embedded serial and debug adapter (OpenSDA), providing easy access to MCU I/O, battery-ready, low-power operation, a standards-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. FRDM-KL02Z受到众多恩智浦和第三方开发软件的支持。

您可以通过恩智浦代理商合作伙伴购买该硬件。

支持的器件

处理器和微控制器

KL系列Cortex-M0+

  • KL0x: Kinetis® KL0x-48 MHz，入门级超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核

特征

MKL02Z32VFM4 MCU

  • 48 MHz
  • 32 KB闪存
  • 4 kB SRAM
  • 32QFN

传感器

  • MMA8451Q加速度传感器
  • 电容触摸滑块

电源管理

  • 灵活的供电选项
    • 钮扣电池
    • 外部电源
    • 已配备电池，电源测量接入点

数据连接

  • 可轻松访问MCU I/O

调试

  • 新型OpenSDA调试接口：
    • 大容量存储设备闪存编程接口(默认)；无需安装任何工具即可评估演示应用
    • P&E调试接口具有运行控制调试功能并兼容IDE工具
    • CMSIS-DAP接口：面向嵌入式调试接口的Arm®新标准

用户组件

  • 3色LED

购买选项

FRDM-KL02Z-Image

点击展开

  • FRDM-KL02Z
    正常供应

  • Freedom Development Board for Kinetis KL02 MCUs.

    • FRDM-KL02Z硬件
    • 快速参考卡片
    • 所需其他硬件：USB A转MiniB线(未附带)
  • $17.25 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 7
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
