LPCXpresso54018开发板

OM40003
正常供应

滚动图片以放大

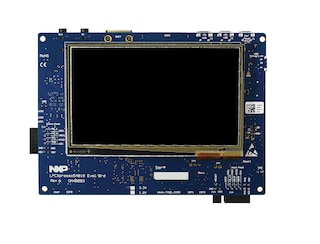

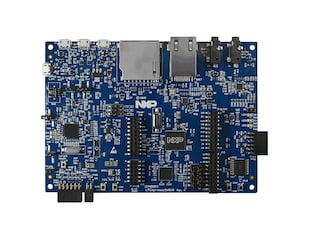

该板由LPC54018目标器件和板载CMSIS-DAP / SEGGER® J-Link兼容的硬件调试器组成。板载硬件调试器与MCUXpresso IDE及Keil™和IAR®等其他领先的工具链兼容。该板还配有一个标准的10针接头，可使用第三方硬件调试器。除了标准的LPCXpresso V3功能，该板还包括一套完整的外设接口，使开发人员能够充分了解LPC540xx器件的功能。

MCUXpresso配置工具和扩展的SDK驱动程序/使用示例可用于mcuxpresso.nxp.com中所列的板。

产品详情

支持的器件

处理器和微控制器

LPC54000 Cortex-M4

  • LPC540XX: 基于Arm® Cortex®-M4内核的高效微控制器(MCU)，带先进外设

接口

USB接口

特征

调试

  • 板载高速USB、Link2硬件调试器，支持CMSIS-DAP和SEGGER J-Link协议
  • UART和SPI端口通过板载硬件调试器将目标LPC54018和USB桥接起来
  • 支持外部硬件调试器

存储器

  • Winbond 128 Mb W25Q128JVFIM四通道SPI闪存
  • Winbond 128 Mb W9812G6JB-6I SDRAM

数据连接

  • Winbond 128 Mb W9812G6JB-6I SDRAM
  • 高速和全速USB端口，具有主机或设备功能可用的微型A/B连接器
  • 10/100 MB/s以太网(RJ45接头)
  • 多个扩展选件，包括Arduino® UNO和PMod

音频

  • Knowles SPH0641LM4H数字麦克风
  • 立体声音频编解码器，带线路输入/输出

传感器

  • 恩智浦MMA8652FCR1加速度传感器

电源管理

  • 针对目标LPC54018 MCU的内置功耗测量

用户组件

  • 3个用户LED
  • 加重置
  • ISP (3)
  • 用户按钮

更多

购买选项

OM40003-Image

点击展开

  • OM40003
    正常供应

  • LPCXpresso54018 Development Board.

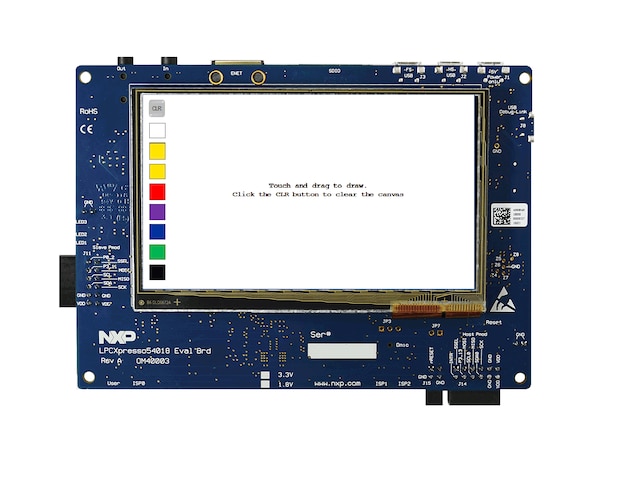

    • 1个LPCXpresso54018开发板，预装了演示程序，显示emWIN示例。
  • 数量为 1
