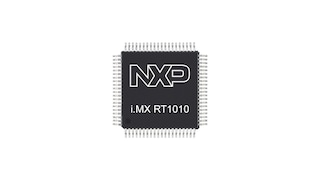

i.MX RT1010跨界MCU，配备Arm®Cortex®-M7内核，运行频率为500MHz

i.MX-RT1010
正常供应

滚动图片以放大

i.MX RT1010跨界MCU基于Arm® Cortex®-M7内核，具有实时性能和高集成功能，适用于工业和物联网应用。

i.MX RT1010 CM7运行频率高达500 MHz，内置128 KB片上RAM，可配置为TCM或通用存储器使用。该系列提供各种存储器接口和丰富的连接接口，包括UART、SPI、I²C和USB。80个LQFP封装，可实现低成本PCB设计。

i.MX RT1010系列由MCUXpresso生态合作体系支持，其中包括SDK、IDE选项以及安全配置和配置工具，可实现快速开发。

框图

i.MX RT1010跨界MCU

i.MX RT1010 Crossover MCU
获取框图PDF

特性

  • Arm® Cortex®-M7，高达500 MHz
  • 实时低延迟响应，低至20 ns
  • MCUXpresso生态合作体系支持
    • IDE选项的选择
    • 引脚、时钟、外设、安全和存储器配置工具
    • 安全编程和配置工具
    • 软件开发套件
  • 支持Zephyr实时操作系统（RTOS）
  • 外部存储接口选项
  • 面向低成本PCB设计的80个LQFP封装

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

内核类型

运行频率[最高]（MHz）

SRAM (kB)

Serial Communication

USB Controllers

安全

PWM [Number, bits]

ADC [Number, bits]

输入电压[最小到最大]（V）

PWM

Junction Temperature (Min to Max) (℃)

封装类型

Package Pitch (mm)

MIMXRT1011CAE4A
数据手册

正常供应

10K @ CNY12.13

1 x Arm Cortex-M7

400

128

2 x I²C, 2 x SPI, 4 x UART

1

AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG

4 x 16

1 x 12

3 to 3.6

4

-40 to 105

LQFP80

0.5

MIMXRT1011DAE5A
数据手册

正常供应

10K @ CNY10.70

1 x Arm Cortex-M7

500

128

2 x I²C, 2 x SPI, 4 x UART

1

AES-D, CA, CRC, FAC, HAB, SJC, SNVS, TRNG

4 x 16

1 x 12

3 to 3.6

4

0 to 95

LQFP80

0.5
