QN9090/30(T): Bluetooth LE MCU带有Arm®Cortex®-M4 CPU, 高能效的模数外设以及NFC标签选项

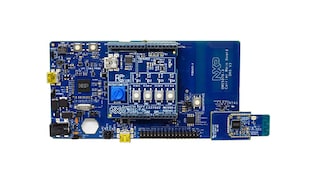

QN9090-30
正常供应

QN9090和QN9030是QN系列Bluetooth LE设备中最新的微控制器，可实现超低功耗，并集成了Arm®Cortex®-M4 CPU和模数外设的全面组合。存储器集成支持高达640KB的板载闪存和152KB的SRAM，为复杂的应用和安全的无线(OTA)更新提供了空间和灵活性。QN系列设备具有丰富的MCU外设，包括多个串行通信接口。在QN系列中，QN9090T和QN9030T集成了NFC NTAG以支持带外配对等用例。通过使用NFC读取器设备轻触基于QN9090T的设备，例如智能手机或平板电脑，可快速建立Bluetooth LE连接，从而简化配对过程。

框图

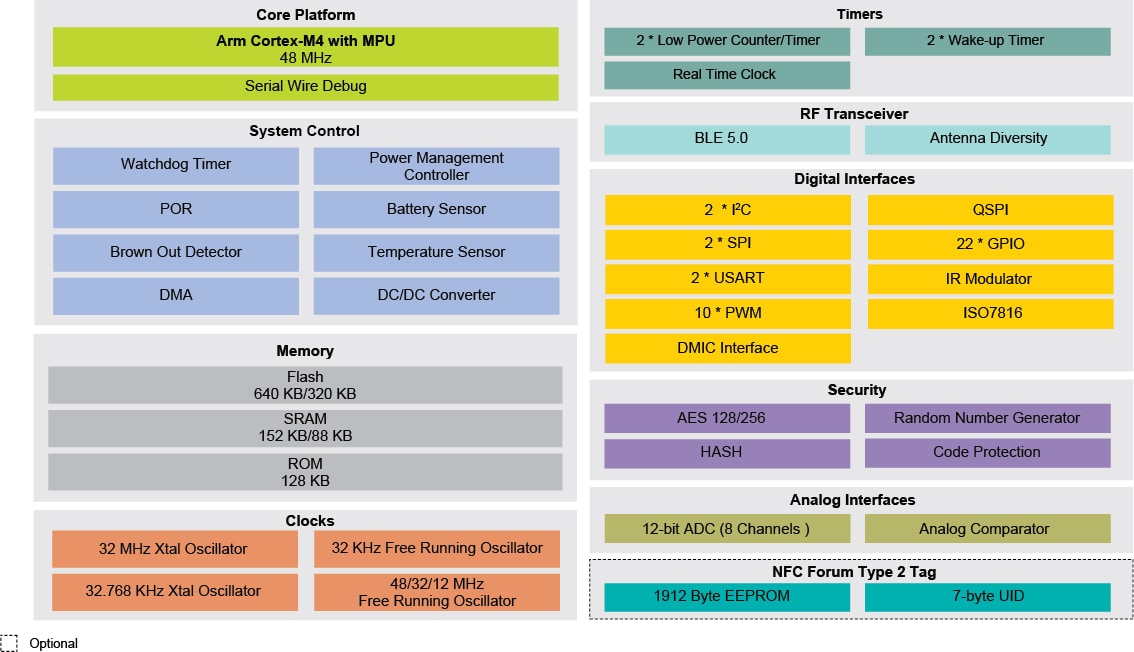

QN9090/30 Block Diagram

QN9090/30 Block Diagram
获取框图PDF

特征

CPU和内存

  • 高达48MHz Cortex-M4
  • 高达640 kB闪存、高达152 kB RAM和128 kB ROM
  • 带有EEPROM的NFC NTAG选件
  • Quad-SPI，适用于NVM中芯片内执行功能或数据存储

射频性能/功耗

  • -97 dBm接收灵敏度
  • 高达11dBm的发射功率
  • RX 4.3mA，3V时DC/DC接通
  • TX 7.4mA @ 0dBm, 20.5mA @ 10dBm
  • BLE 5.0频率为2Mbps，最多8个同时连接

安全性

  • 带有硬件保护密钥的AES256
  • 哈希引擎(SHA256)
  • 代码读取保护

数字和模拟接口

  • 最多2个UART/SPI/I2C
  • 安全接入模块的ISO7816接口
  • 8通道12位ADC
  • 1个模拟比较器
  • 数字麦克风接口和音频事件检测

时钟和定时器

  • 32 MHz和32.768 kHz晶体
  • 低频和高频内部时钟源
  • 4个通用定时器
  • 32K睡眠定时器
  • 看门狗定时器
  • 带校准功能的RTC

工作条件

  • 工作电压：1.9至3.6V
  • 结温范围：-40至125 ºC

更多

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
