KW45本地化板参考设计

RD-KW45-LOCALIZATION

滚动图片以放大

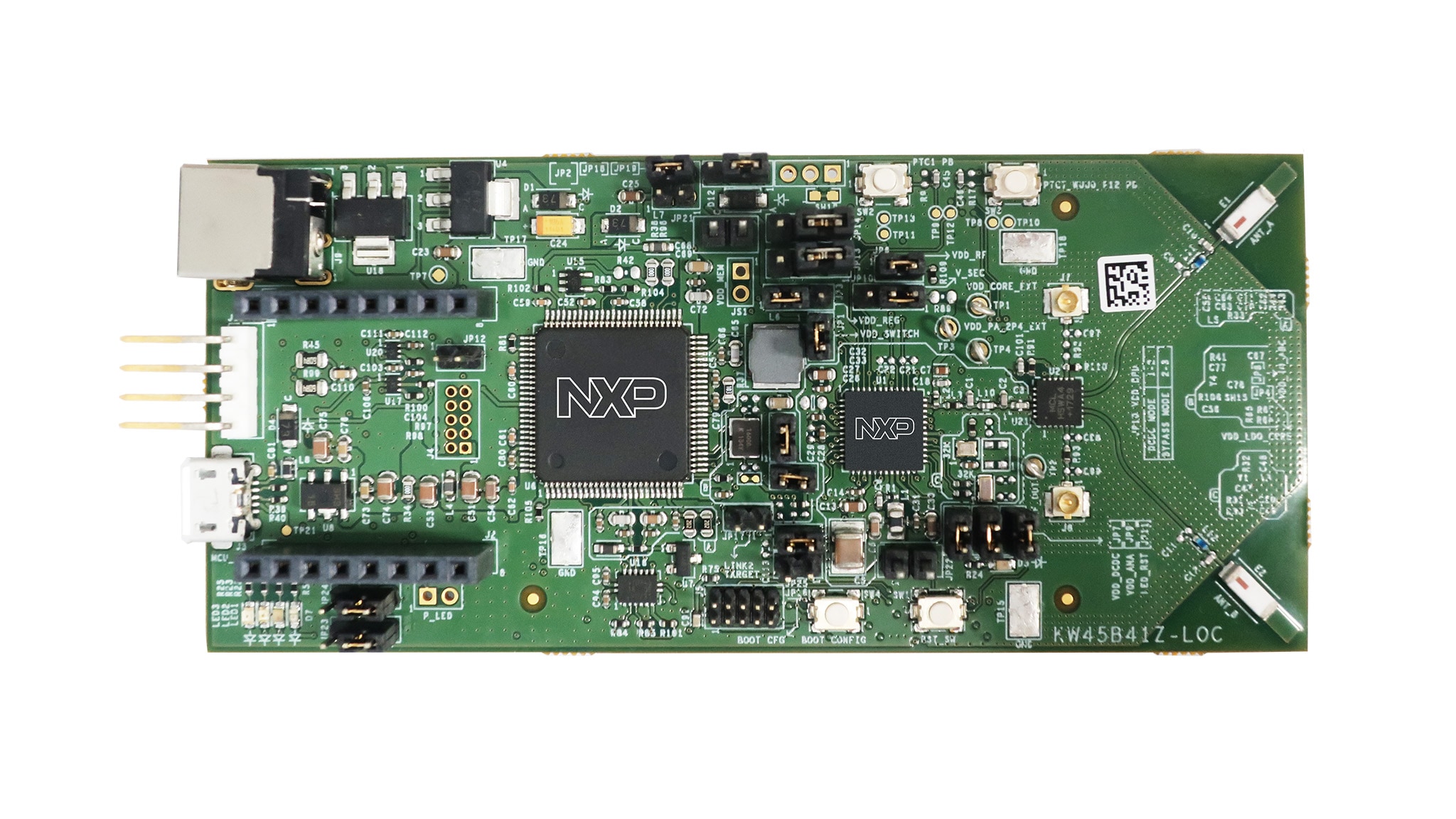

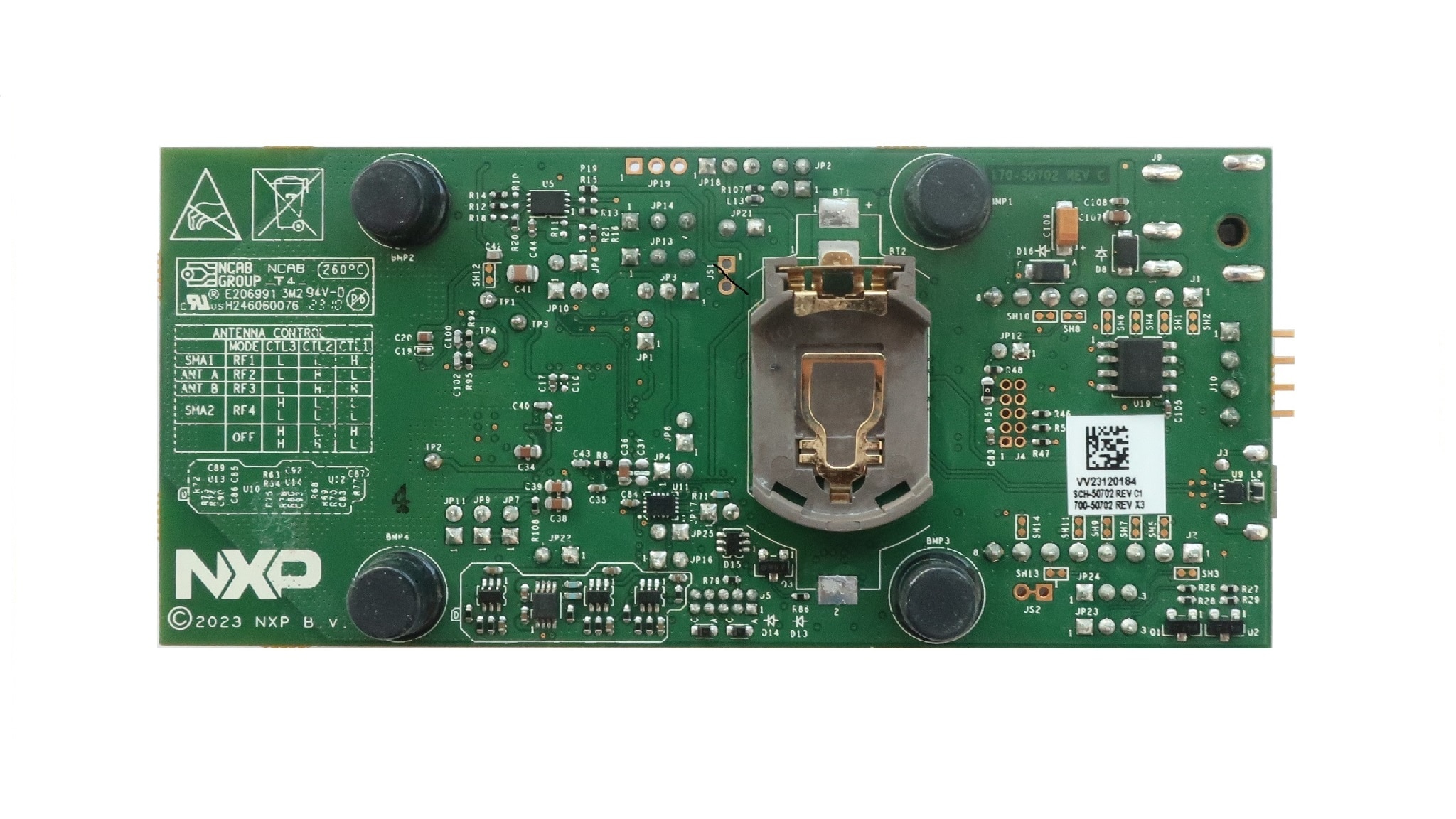

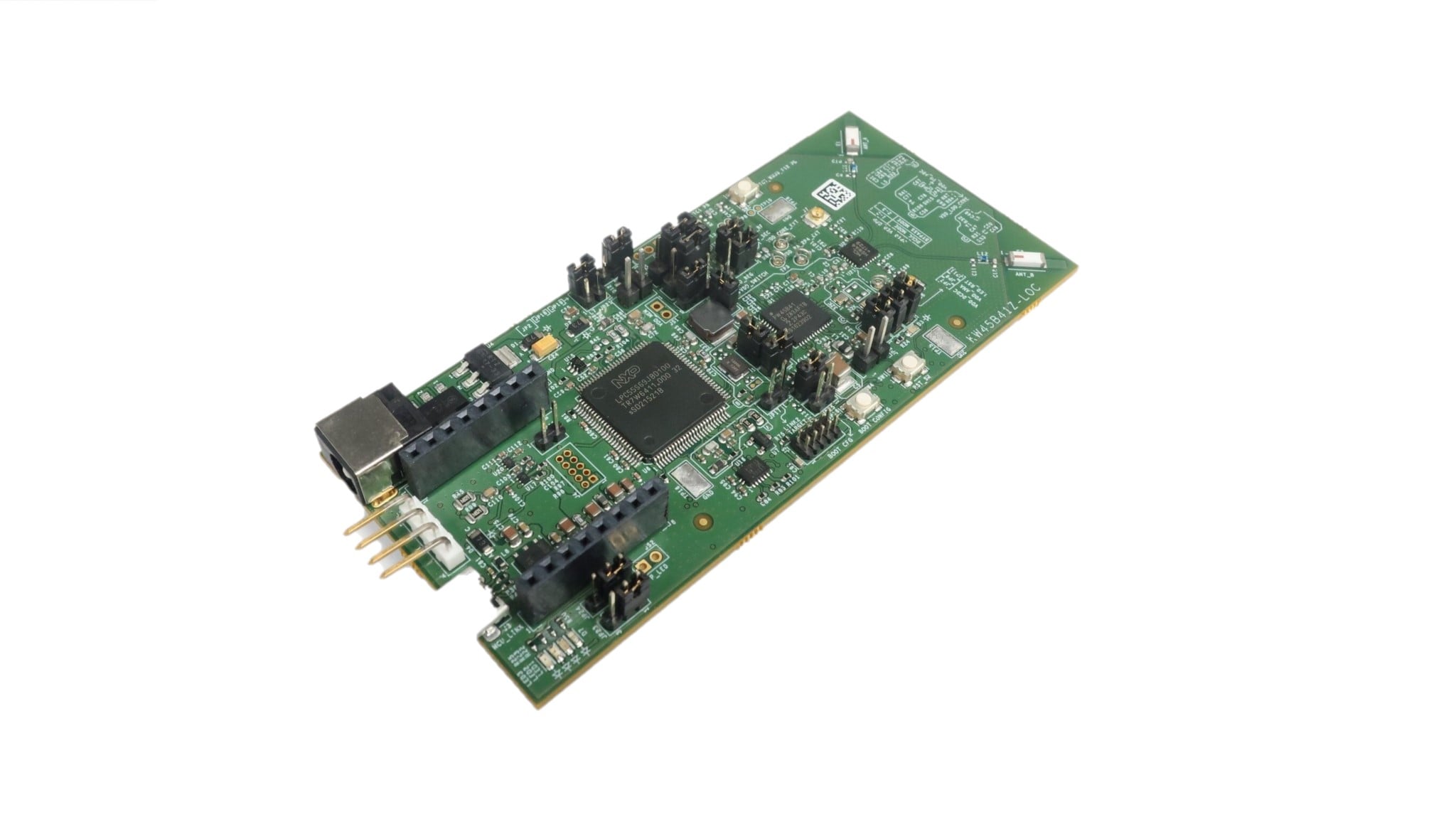

KW45B41Z LOC是面向KW45汽车MCU的评估套件，支持2.4GHz低功耗蓝牙、通用FSK无线连接和CAN/LIN连接。该平台专用于窄带无线测距，能够协助您准备实施蓝牙信道探测解决方案。KW45的高灵敏度、优化的2.4GHz射频功能通过射频开关实现天线分集。

框图

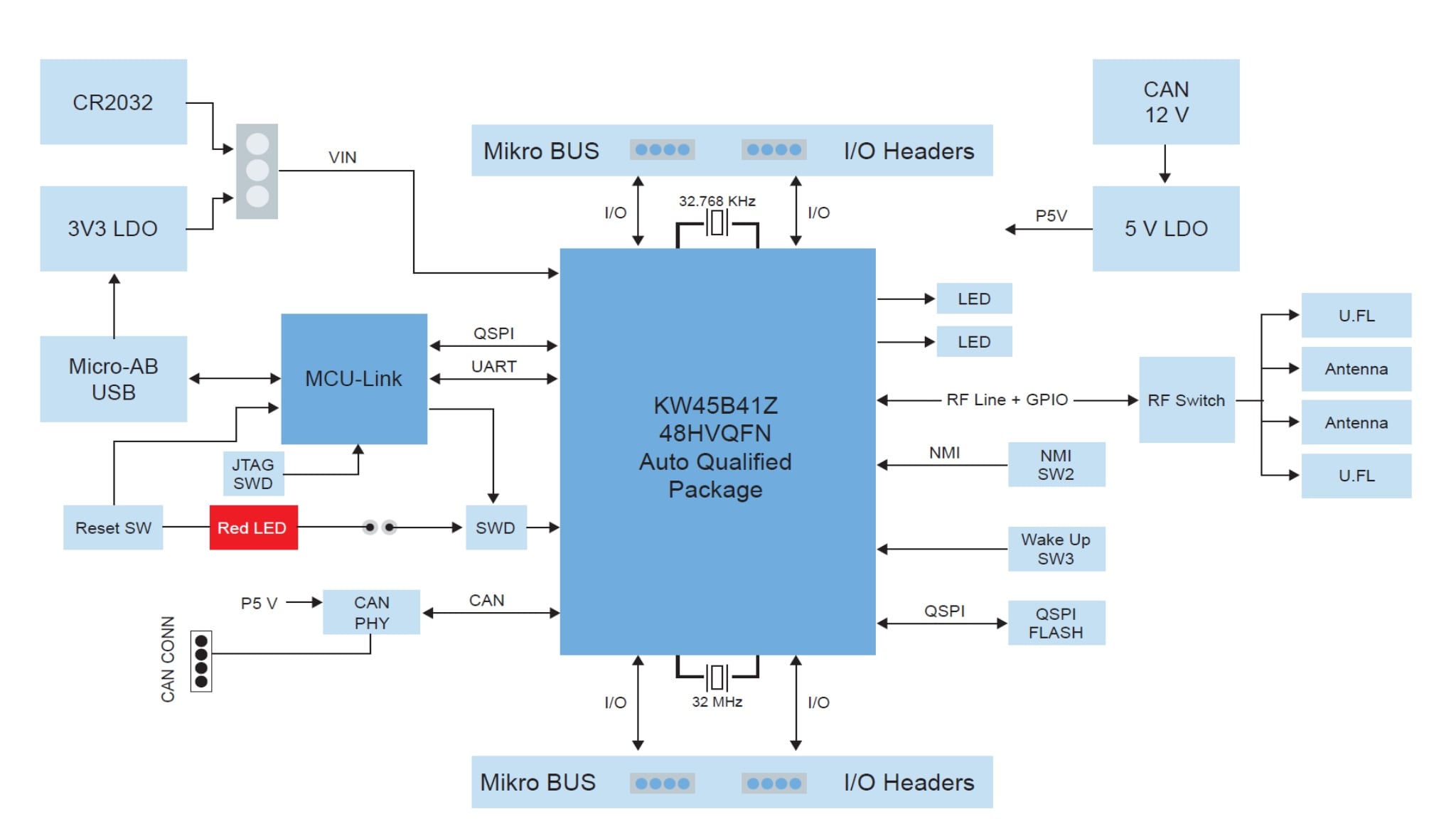

KW45B41Z-LOC结构框图

KW45B41Z-LOC Block Diagram
获取框图PDF

支持的器件

无线连接

低功耗蓝牙

  • KW45: KW45: 32位Bluetooth® 5.3，远程MCU，带CAN FD和LIN总线选项， Arm® Cortex®-M33内核

特性

处理器

  • KW45B41Z评估板包括KW45B41Z83AFTB，可配置为主机或Shield扩展板，用于连接主机处理器。

连接

  • 支持CAN连接
  • 支持LIN连接
  • Arduino Shield插座
  • mikroBUS插座

调试

  • JTAG

电源管理

  • 支持所有DC-DC配置

传感器

  • 恩智浦FXLS8964AF 3D加速度传感器(±2g/±4g/±8g)

无线

  • PCB反向F型天线和SMA射频连接器

购买选项

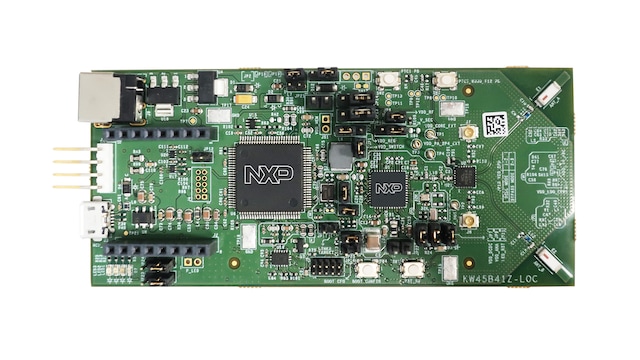

KW45B41Z-LOC-Image

点击展开

  • KW45B41Z-LOC
    正常供应

  • KW45 Localization Board Reference Design.

  • $185.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 22
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
N true 0 PSPRD-KW45-LOCALIZATIONzh 4 可靠性与质量信息 Reliability and Quality Information t791 1 应用笔记 Application Note t789 1 用户手册 User Manual t1009 1 用户指南 User Guide t792 1 zh zh zh 应用笔记 Application Note 1 1 1 English The KW45B41Z localization (KW45B41Z-LOC) board is a highly configurable, low-power, and cost-effective evaluation and development platform for NXP KW45B41Z MCU. 1700246059224732490295 PSP 11.3 MB None None documents None 1700246059224732490295 /docs/en/application-note/AN14098.pdf 11329453 /docs/en/application-note/AN14098.pdf AN14098 documents N N 2023-11-17 KW45B41Z-LOC RF Test Report /docs/en/application-note/AN14098.pdf /docs/en/application-note/AN14098.pdf Application Note N 645036621402383989 2024-06-12 pdf N en Nov 17, 2023 645036621402383989 Application Note Y N KW45B41Z-LOC RF Test Report 用户指南 User Guide 1 2 1 English This document guides the user through the design of antennas for Channel Sounding (CS) applications. In the document, CS is introduced, and principles of distance measurements are explained. Requirements on antennas are formulated to minimize measurement errors. Antennas are designed and simulated, functional tests are performed, and commercially available antennas for CS are discussed. 1710355300127720343551 PSP 3.7 MB Registration without Disclaimer None documents Basic 1710355300127720343551 /secured/assets/documents/en/user-guide/UG10107.pdf 3728652 /secured/assets/documents/en/user-guide/UG10107.pdf UG10107 documents Y N 2024-03-13 Antennas for Channel Sounding Applications /webapp/Download?colCode=UG10107&lang_cd=zh /secured/assets/documents/en/user-guide/UG10107.pdf User Guide N 132339537837198660 2025-02-07 pdf Y en Mar 13, 2024 132339537837198660 User Guide Y N Antennas for Channel Sounding Applications 用户手册 User Manual 1 3 2 English The KW45B41Z-LOC board is a highly configurable, low-power, cost-effective evaluation and development platform for NXPKW45B41Z MCU. 1700602264935705128644 PSP 4.8 MB None None documents None 1700602264935705128644 /docs/en/user-manual/KW45B41Z_LOCUM.pdf 4827025 /docs/en/user-manual/KW45B41Z_LOCUM.pdf KW45B41Z_LOCUM documents N N 2023-11-21 KW45B41Z-LOC Board User Manual /docs/en/user-manual/KW45B41Z_LOCUM.pdf /docs/en/user-manual/KW45B41Z_LOCUM.pdf User Manual N 309919593431037931 2024-10-25 pdf N en Mar 25, 2024 309919593431037931 User Manual Y N KW45B41Z-LOC Board User Manual 可靠性与质量信息 Reliability and Quality Information 1 4 0 English European Union Declaration of Conformity for KW45B41Z-LOC 1710538474029707439434 PSP 337.7 KB None None documents None 1710538474029707439434 /docs/en/reliability-and-quality-information/REDPART00000057401.pdf 337659 /docs/en/reliability-and-quality-information/REDPART00000057401.pdf REDPART00000057401 documents N N 2024-03-15 European Union Declaration of Conformity for KW45B41Z-LOC /docs/en/reliability-and-quality-information/REDPART00000057401.pdf /docs/en/reliability-and-quality-information/REDPART00000057401.pdf Reliability and Quality Information N 506336137622222552 2024-03-15 pdf N en Mar 15, 2024 506336137622222552 Reliability and Quality Information Y N European Union Declaration of Conformity for KW45B41Z-LOC false 0 RD-KW45-LOCALIZATION downloads zh-Hans true 0 Y PSP 可靠性与质量信息 1 /docs/en/reliability-and-quality-information/REDPART00000057401.pdf 2024-03-15 1710538474029707439434 PSP 4 Mar 15, 2024 Reliability and Quality Information European Union Declaration of Conformity for KW45B41Z-LOC None /docs/en/reliability-and-quality-information/REDPART00000057401.pdf English documents 337659 None 506336137622222552 2024-03-15 N /docs/en/reliability-and-quality-information/REDPART00000057401.pdf European Union Declaration of Conformity for KW45B41Z-LOC /docs/en/reliability-and-quality-information/REDPART00000057401.pdf documents 506336137622222552 Reliability and Quality Information N en None Y pdf 0 N N European Union Declaration of Conformity for KW45B41Z-LOC 337.7 KB REDPART00000057401 N 1710538474029707439434 应用笔记 1 /docs/en/application-note/AN14098.pdf 2023-11-17 1700246059224732490295 PSP 1 Nov 17, 2023 Application Note The KW45B41Z localization (KW45B41Z-LOC) board is a highly configurable, low-power, and cost-effective evaluation and development platform for NXP KW45B41Z MCU. None /docs/en/application-note/AN14098.pdf English documents 11329453 None 645036621402383989 2024-06-12 N /docs/en/application-note/AN14098.pdf KW45B41Z-LOC RF Test Report /docs/en/application-note/AN14098.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N KW45B41Z-LOC RF Test Report 11.3 MB AN14098 N 1700246059224732490295 用户手册 1 /docs/en/user-manual/KW45B41Z_LOCUM.pdf 2023-11-21 1700602264935705128644 PSP 3 Mar 25, 2024 User Manual The KW45B41Z-LOC board is a highly configurable, low-power, cost-effective evaluation and development platform for NXPKW45B41Z MCU. None /docs/en/user-manual/KW45B41Z_LOCUM.pdf English documents 4827025 None 309919593431037931 2024-10-25 N /docs/en/user-manual/KW45B41Z_LOCUM.pdf KW45B41Z-LOC Board User Manual /docs/en/user-manual/KW45B41Z_LOCUM.pdf documents 309919593431037931 User Manual N en None Y pdf 2 N N KW45B41Z-LOC Board User Manual 4.8 MB KW45B41Z_LOCUM N 1700602264935705128644 用户指南 1 /secured/assets/documents/en/user-guide/UG10107.pdf 2024-03-13 1710355300127720343551 PSP 2 Mar 13, 2024 User Guide This document guides the user through the design of antennas for Channel Sounding (CS) applications. In the document, CS is introduced, and principles of distance measurements are explained. Requirements on antennas are formulated to minimize measurement errors. Antennas are designed and simulated, functional tests are performed, and commercially available antennas for CS are discussed. Registration without Disclaimer /secured/assets/documents/en/user-guide/UG10107.pdf English documents 3728652 None 132339537837198660 2025-02-07 Y /webapp/Download?colCode=UG10107&lang_cd=zh Antennas for Channel Sounding Applications /secured/assets/documents/en/user-guide/UG10107.pdf documents 132339537837198660 User Guide N en Basic Y pdf 1 Y N Antennas for Channel Sounding Applications 3.7 MB UG10107 N 1710355300127720343551 true Y Designs
