面向Kinetis® KL3x和KL4x MCU的Freedom开发平台

FRDM-KL46Z
正常供应

滚动图片以放大

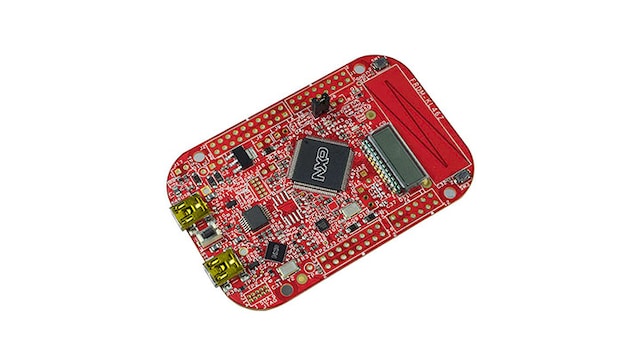

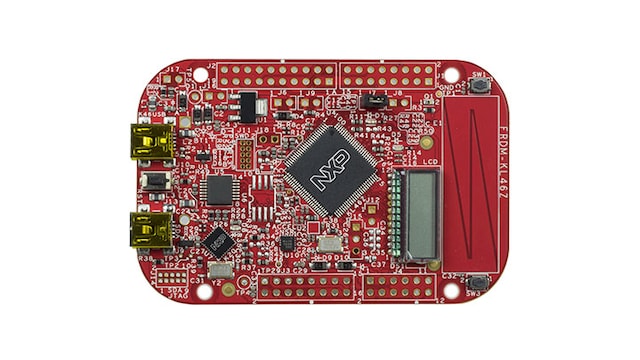

Freedom KL46Z是一款超低成本开发平台，采用基于Arm® Cortex®-M0+处理器的Kinetis® L系列KL4x MCU。

  • 面向低压H桥产品的Processor Expert®组件能够帮助您快速完成嵌入式应用的开发。

    • 产品详情

    支持的器件

    处理器和微控制器

    KL系列Cortex-M0+

    • KL3x: Kinetis® KL3x-48 MHz，段式LCD，超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核
    • KL4x: Kinetis® KL4x-48 MHz，USB，段式LCD，超低功耗微控制器(MCU)，基于Arm® Cortex®-M0+内核

    特征

    微控制器

      MKL46Z256VLL4MCU

    • 48 MHz
    • 256 KB闪存
    • 32 KB SRAM
    • 段式LCD
    • USB OTG (FS)
    • 100 LQFP

    连接

    • 可轻松访问MCU I/O

    能源管理

    • 灵活的供电选项
      • USB
      • 钮扣电池
      • 外部电源
    • 已配备电池，电源测量接入点

    调试

      OpenSDA调试接口

    • 大容量存储设备闪存编程接口(默认) - 无需安装任何工具即可评估演示应用
    • P&E调试接口具有运行控制调试功能并兼容IDE工具
    • CMSIS-DAP接口：面向嵌入式调试接口的Arm新标准
    • 有关详细信息，请参考FRDM-KL46Z用户手册和OpenSDA用户指南

    传感器

    • 电容滑动触摸传感板
    • MMA8451Q加速度传感器
    • MAG3110磁力计
    • 规格与Arduino® Rev3引脚布局兼容

    更多

    购买选项

    FRDM-KL46Z-Image

    点击展开

    • FRDM-KL46Z
      正常供应

    • Freedom Development Board for Kinetis KL16/KL26 (256KB Flash), KL34, KL36 and KL46 MCUs.

      • FRDM-KL46Z硬件
      • 快速参考卡片
      • 所需其他硬件：USB A转MiniB线(未附带)
    • $34.50 USD
    • 数量为 1
      • 供货情况: 现货
      • 库存: 21
      • 配送: 正常情况下 1-2个工作日内发货
    加入购物车
    从分销商处购买
