Kinetis K81 MCU POS塔式系统模块

TWR-POS-K81

滚动图片以放大

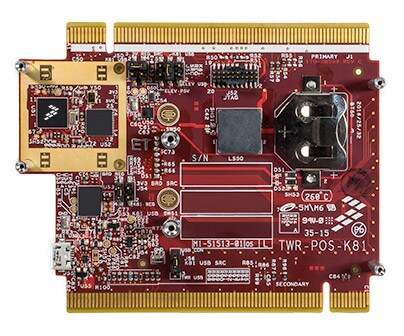

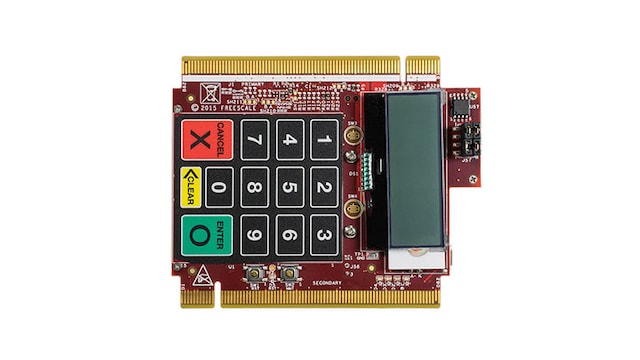

TWR-POS-K81F电路板是面向POS市场的目标参考设计。如需了解这款电路板的安全性，请联系您当地的销售办事处，查询文档，软件和订购信息。

支持的器件

处理器和微控制器

K8x安全

  • K81_150: Kinetis K81-150 MHz硬件加密协处理器，反篡改和QuadSPI微控制器(MCU)，基于Arm® Cortex®-M4内核

特征

微控制器

MK81FN256VDC15 MCU:
  • 150 MHz Arm® Cortex®-M4 core, 256 KB Flash, 256 KB SRAM, 121 XFBGA, with tamper detection and crypto acceleration

存储器

  • 512 Mbit (64MB) twin-quad onboard QuadSPI memory @ 3.3V
  • 256 Kbit (32KB) SPI EEPROM存储器

数据连接

  • 独立全速USB主机和设备功能
  • 压电式蜂鸣器

电源管理

  • 面向实时时钟(RTC)模块的独立电池供电电源

调试

  • Cortex调试 + ETM接头(20引脚调试接头)

传感器

  • Cirque安全传感芯片和电容式触摸PIN板

显示器

  • 玻璃上芯片2线路 x 16字符段式LCD

支持

  • 兼容塔式系统的处理器电路板
  • 4 user-controlled status LEDs
  • One mechanical push button
  • One mechanical push button for nonmaskable interrupt (NMI) or pin interrupt
  • 篡改接口，拥有所有8个篡改信号的访问
