面向Kinetis超低功耗KL82 MCU的Freedom开发板

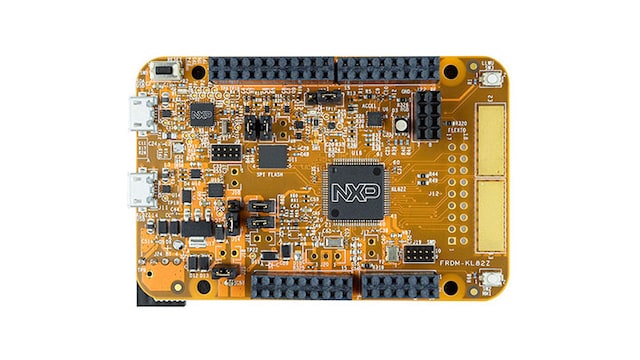

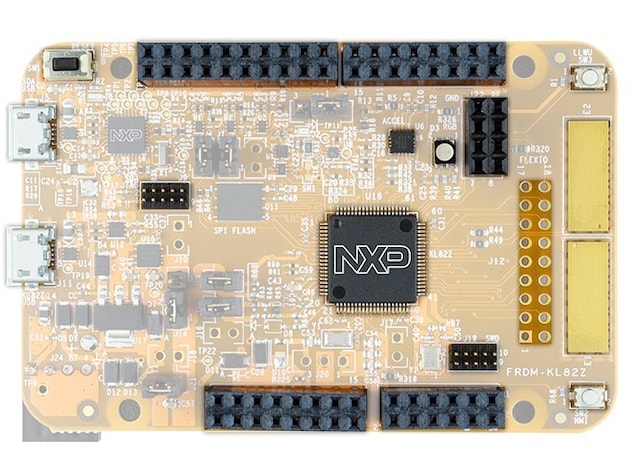

FRDM-KL82Z
正常供应

滚动图片以放大

FRDM-KL82Z支持的电源电压范围为1.71至3.6 V。它配备了具有128 KB闪存和96KB SRAM的KL82Z，还配有数量众多的模拟和数字外设。此外，FRDM-KL82Z还提供QSPI接口，无需外部晶振即可扩展程序存储器和USB FS 2.0。

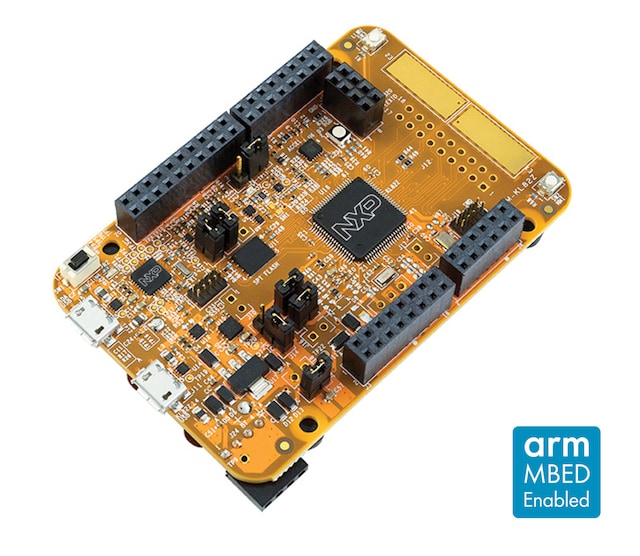

FRDM-KL82Z是基于Arm® Mbed™的平台，用于通过免费的开源嵌入式操作系统来开发物联网。单击此处了解更多。

支持的器件

处理器和微控制器

KL系列Cortex-M0+

  • KL8x: Kinetis® KL8x-72/96 MHz超低功耗安全微控制器(MCU)，基于Arm® Cortex®-M0+内核

特征

微控制器

  • MKL82Z128VLK7 MCU
    • 96 MHz
    • 128 KB闪存
    • 96 KB SRAM
    • 80 LQFP封装

电源管理

  • 电路板电源可选择，3.3V或1.8V MCU运行
  • 灵活的供电选项：
    • USB
    • 钮扣电池
    • 外部源

传感器

  • 加速度传感器和磁力计，FXOS8700CQ

调试

  • 板载调试电路：带虚拟串行端口的MK20DX128VFM5 OpenSDA

数据连接

  • 用于轻松访问MCU I/O引脚的I/O接头

用户组件

  • 两个TSI (触摸传感接口)触摸板
  • 复位按钮
  • 两个机械按钮
  • NMI和LLWU按钮
  • RGB LED

购买选项

FRDM-KL82Z-Image

点击展开

  • FRDM-KL82Z
    正常供应

  • Freedom Development Board for Kinetis KL81 and KL82 MCUs.

    • FRDM-KL82Z开发板
    • 快速入门指南
    • 支持线缆
  • $34.50 USD
  • 数量为 1
    • 供货情况: 待定库存
加入购物车
