适用于高性能消费电子应用的12通道电源管理集成电路(PMIC)

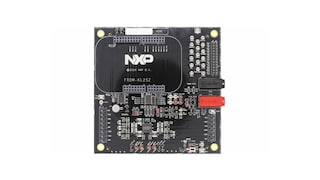

PF8121
正常供应
NXP Power Management Custom OTP Programming

点击播放视频

PF8121是一款电源管理集成电路(PMIC)，专为高性能消费电子应用而设计。该PMIC拥有7个高效的降压转换器和4个线性稳压器，为处理器、存储器和其他外设供电。

内置一次性可编程存储器可存储关键的启动配置，大大减少通常用于设置输出电压和外部稳压器序列的外部元件。稳压器参数可在启动后通过高速I²C进行调节，灵活地支持不同的系统状态。

框图

PF8121，12通道PMIC

PF8121, 12-channel PMIC Block Diagram
获取框图PDF

特性

系统特性

  • 7个高效的降压转换器
  • 4个带负载开关选项的线性稳压器
  • RTC电源和纽扣电池充电器
  • 看门狗定时器/监测器
  • 电压和系统监测电路
  • 一次性可编程(OTP)器件配置
  • 3.4MHz I²C通信接口
  • 56引脚8x8 QFN封装
  • 支持i.MX 8M Mini MCU
  • 输出电流：10A
  • 快速的PMIC启动
  • 无缝处理器接口的高级状态机
  • 高速I²C接口和输入控制(3.4MHz)
  • PGOOD监测器
  • 用户可编程的待机和关机模式
  • 可编程的软启动顺序和关断顺序
  • 可编程的稳压器配置
  • 用于智能系统监测/诊断的24通道模拟多路复用器

可编程性

  • 电源、排序和特定功能可由一次性可编程(OTP)存储器进行编程
  • 可在数据手册的“订购信息”一章找到支持主流MCU的标准预定义OTP
  • 在开发阶段，可以使用KITPF8200FRDMPGM板对定制的OTP部件进行编程
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道(恩智浦或代理商)
  • 可下载自定义OTP表单，填写PF8121自定义OTP申请表或使用恩智浦GUI软件工具中集成的OTP工具

对照表

部件编号 目标市场 恩智浦处理器 系统备注 安全等级 封装 OTP ID
MC32PF8121A0EP 消费电子 N/A 未编程 N/A HVQFN56 (E-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 N/A
MC32PF8121EUEP 消费电子 i.MX8M Mini LPDDR4存储器VIN>4.0V N/A HVQFN56 (E-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 EU
MC32PF8121F1EP 消费电子 i.MX8M Mini LPDDR4存储器VIN>3.3V N/A HVQFN56 (E-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 F1
MC32PF8121F2EP 消费电子 i.MX8M Mini DDR3L存储器(外部VTT) N/A HVQFN56 (E-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 F2
