面向汽车应用的双通道PMIC——两个高效LVBUCK，可达到ASIL B安全等级

PF5200
正常供应

滚动图片以放大

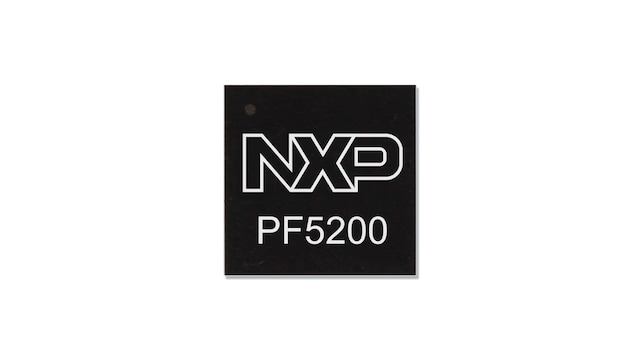

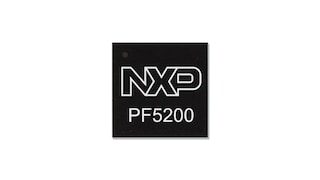

PF5200是一款多通道PMIC器件，适用于高性能汽车应用。PF5200高度可配置，适合作为配套设备，满足各种系统级电源需求。

内置电压监测电路确保符合ISO26262标准，功能安全最高达到ASIL B级。PF5200也可作为标准的非安全器件，适用于不需要符合ISO26262标准的应用。

PF5200适用于应用的大电流核心电源，包括娱乐中控、ADAS、视觉和雷达，可以与恩智浦PF502x等PMIC或FS85系列等SBC结合使用。

该器件适用于基于S32处理器的应用和DDR存储器电源。

框图

PF5200双通道PMIC

PF5200 Dual Channel PMIC Block Diagram
获取框图PDF

特性

系统特性

  • 两个高效的降压转换器
  • 32引脚5x5 FC-QFN封装
  • 支持DDR4、以太网PHY和S32R45 MCU
  • 输出电流：8A
  • OTP(一次性编程)存储器，可用于灵活的器件配置
  • 高速I²C接口和输入控制(3.4MHz)
  • PGOOD监测电路
  • 外部时钟同步
  • 扩频频谱

监测电路，以达到ASIL B安全等级

  • 符合ASIL B安全等级的独立电路
  • 带可编程故障保护的电压监测
  • 先进的热监测和保护
  • 可编程内置看门狗定时器
  • I²C CRC和写保护机制
  • 模拟内置自检(ABIST)

可编程

  • 电源、排序和特定功能可由一次性可编程(OTP)存储器进行编程
  • 在开发阶段，可以使用评估板对定制的OTP部件进行编程
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道(恩智浦或代理商)
  • 可以使用GUI工具创建定制OTP

对比表

标准配置

部件编号 说明 OTP ID 安全等级 封装
MPF5200AMBA1 LX2160A BA1报告、编程和配置文件 ASIL B HWQFN32
MPF5200AMBA2 LX2160A BA2报告、编程和配置文件 ASIL B HWQFN32
MPF5200AMBA3 LX2160A BA3报告、编程和配置文件 ASIL B HWQFN32
MPF5200AMBA4 S32R45 BA4报告、编程和配置文件 ASIL B HWQFN32
MPF5200AMMG2 LA1224 MG2报告、编程和配置文件 QM HWQFN32
MPF5200AMMG3 LA1224 MG3报告、编程和配置文件 QM HWQFN32
