面向汽车无线应用的多通道（5通道）PMIC——3个LVBUCK和1个LDO

PF0300
试生产
  • 本页介绍的产品处于样品阶段。此处的产品技术规格和信息如有变更，恕不另行通知。如需了解更多信息和样品供货情况，请联系恩智浦 支持服务或恩智浦当地销售人员。

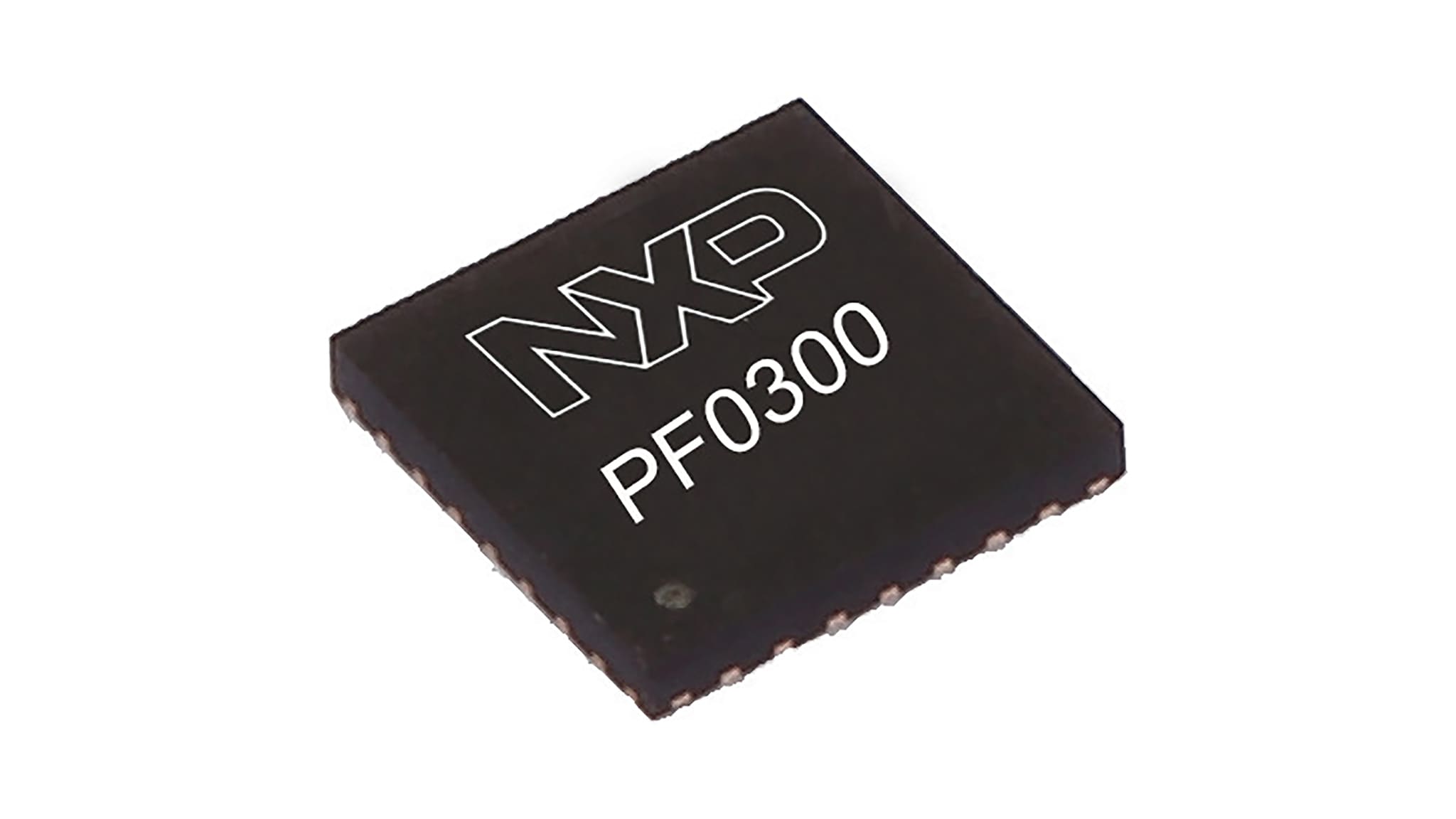

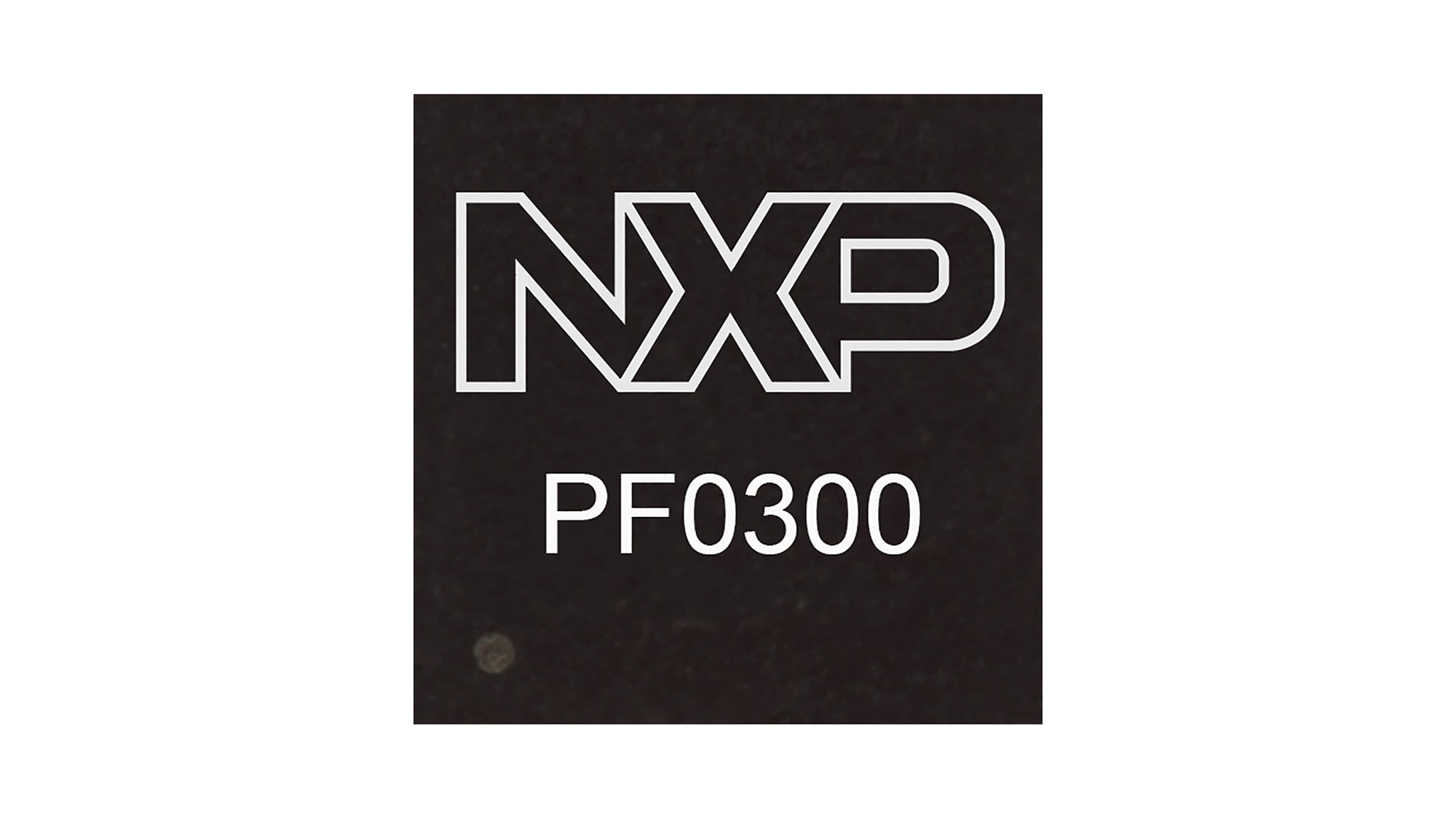

滚动图片以放大

PF0300是恩智浦的多通道PMIC器件，适用于汽车无线应用和工业应用。PF0300高度可配置，适合与其他器件配套使用，可满足各种系统级电源需求。

此器件适用于基于恩智浦无线处理器的应用 。

产品详情

框图

面向汽车无线应用的多通道（5通道）PMIC:3个LVBUCK和1个LDO

PF0300 Functional Block Diagram
获取框图PDF

特性

主要特性

  • 3个LVBUCK转换器，高达3.5A
  • 一个LDO，高达500mA

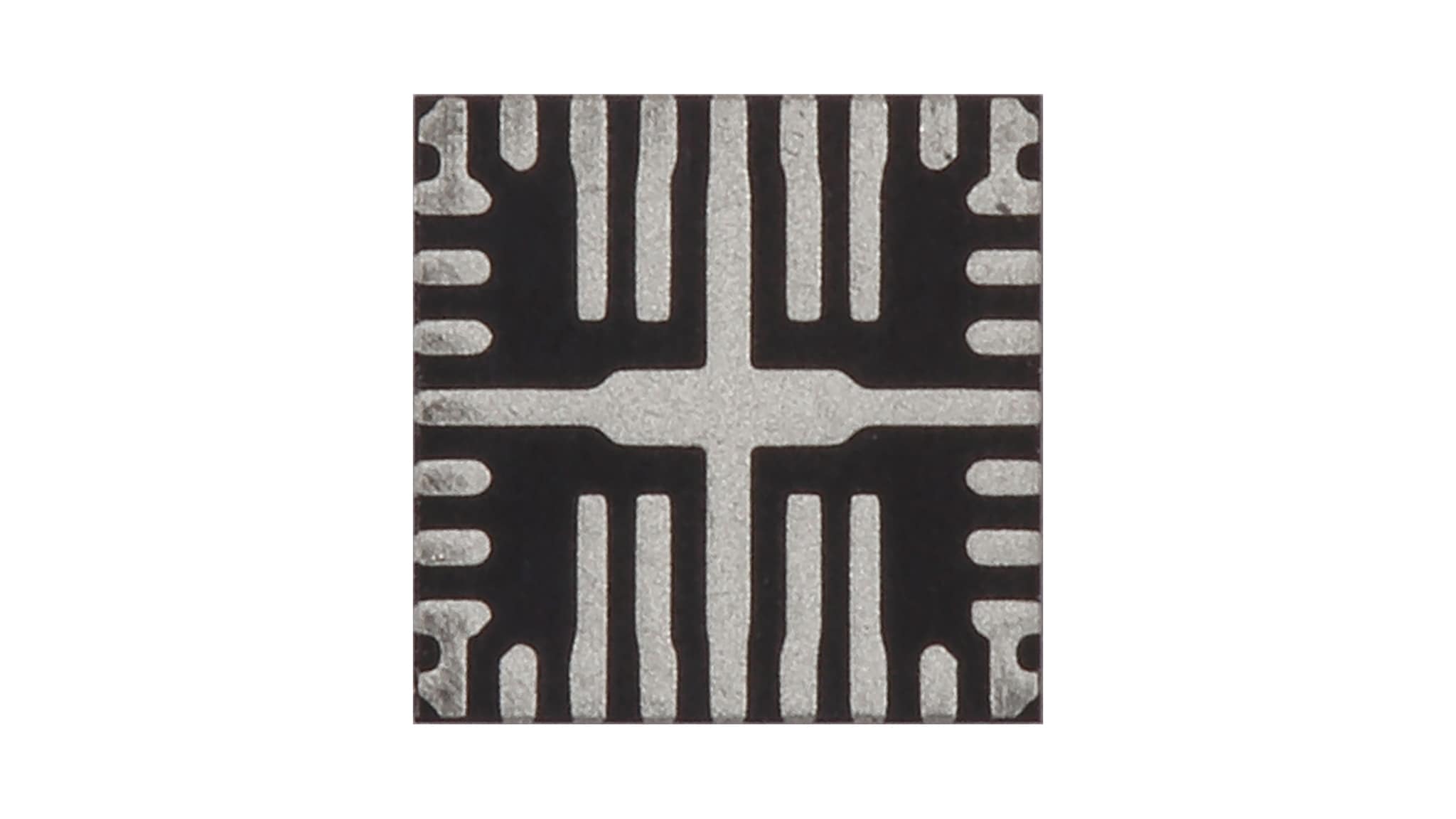

  • 28引脚4.5 x 4.5 FC-QFN封装

系统特性

  • OTP(一次性编程)存储器，可用于灵活的器件配置
  • 高速I2C接口(3.4MHz)
  • PGOOD监测电路
  • 外部时钟同步
  • 扩频频谱
  • 多PMIC同步总线
  • 看门狗（简单窗口）
  • 带可编程故障保护的电压监测

可编程

  • 电源、排序和特定功能可由一次性可编程(OTP)存储器进行编程
  • 在开发阶段，可以使用评估板对定制的OTP部件进行编程
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道（恩智浦或代理商）
  • 可以使用GUI工具创建定制OTP
