面向高性能处理应用的9通道电源管理集成电路(PMIC)

PF8101-PF8201
正常供应

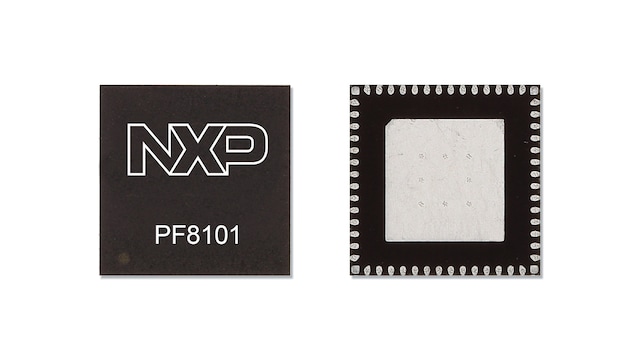

滚动图片以放大

PF8101/PF8201是一款电源管理集成电路(PMIC)，专为基于i.MX 8的高性能应用而设计。它拥有5个高效的降压转换器和3个线性稳压器，为处理器、存储器和其他外设供电。

内置一次性可编程存储器可存储关键的启动配置，大大减少通常用于设置输出电压和外部稳压器序列的外部元件。稳压器参数可在启动后通过高速I²C进行调节，灵活地支持不同的系统状态。

框图

PF8101和PF8201多通道

PF8101/PF8201 Multi-channel PMIC Block Diagram
获取框图PDF

特性

系统特性

  • 5个高效的降压转换器
  • 带负载开关选项的3个线性稳压器
  • RTC电源和纽扣电池充电器
  • 看门狗定时器/监测器
  • 达到ASIL B安全级别的监测电路
  • 一次性可编程(OTP)器件配置
  • 3.4MHz I²C通信接口
  • 车规级和工业级
  • 56引脚8x8 QFN封装
  • 支持i.MX 8和i.MX 8X MCU
  • 输出电流：10A
  • 快速的PMIC启动
  • 无缝处理器接口的高级状态机
  • 高速I²C接口和输入控制(3.4MHz)
  • PGOOD监测器
  • 用户可编程的待机和关机模式
  • 可编程的软启动顺序和关断顺序
  • 可编程的稳压器配置
  • 用于智能系统监测/诊断的24通道模拟多路复用器

符合ASIL B安全级别的监测电路

  • 带可编程故障保护的独立电压监测
  • 先进的热监测和保护
  • 外部看门狗监测和可编程的内部看门狗计数
  • I²C CRC和写保护机制
  • 模拟内置自检(ABIST)

可编程性

  • 电源、排序和特定功能可由一次性可编程(OTP)存储器进行编程
  • 可在数据手册的“订购信息”一章中找到支持主流MCU的标准预定义OTP
  • 在开发阶段，可以使用KITPF8200FRDMPGM板对定制的OTP部件进行编程
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道(恩智浦或代理商)
  • 可下载自定义OTP表单，填写PF8x01自定义OTP申请表或使用恩智浦GUI软件工具中集成的OTP工具

更多

对照表

部件编号 目标市场 恩智浦处理器 系统备注 安全等级 封装 OTP ID
MC33PF8101A0ES 汽车电子 N/A 未编程 QM HVQFN56(WF-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 N/A
MC34PF8101A0EP 工业 N/A 未编程 QM HVQFN56(WF-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 N/A
MC33PF8201A0ES 汽车电子 N/A 未编程 ASIL B HVQFN56(WF-type) 56引脚QFN，0.5mm间距，8mmx8mmx0.85mm体积 N/A

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

支持的MCU

电源电压[最小]（V）

电源电压[最大]（V）

输出电流（A）

Number of Buck Regulators

Number of LDO

Switching Frequency LV Buck (MHz)

Number of Boost Regulators

通道数

电池充电器

封装类型

Ambient Operating Temperature (Min to Max) (℃)

Safety Level

器件功能

接口和输入控制

额外功能——模拟

Junction Temperature (Min to Max) (℃)

开发工具

MC33PF8101A0ES
数据手册

正常供应

1K @ CNY27.86

i.MX 8, i.MX 8X

2.7

5.5

10

5

3

2, 3

0

9

coin cell battery

HVQFN56

-40 to 105

QM

PMICs for high performance applications processor, configurable PMICs

I2C

AMUX, Frequency Tuning, Multi-Phase, Spread Spectrum, Voltage Monitoring

-40 to 150

KITPF8100FRDMEVM

MC33PF8201A0ES
数据手册

正常供应

1K @ CNY30.66

i.MX 8, i.MX 8X

2.7

5.5

10

5

3

2, 3

0

9

coin cell battery

HVQFN56

-40 to 105

up to ASIL A, up to ASIL B

PMICs for high performance applications processor, configurable PMICs

I2C

AMUX, Frequency Tuning, Functional Safety ASIL-B, Multi-Phase, Spread Spectrum, Voltage Monitoring

-40 to 150

KITPF8100FRDMEVM
