用于高性能应用的7通道电源管理集成电路，符合ASIL B安全等级

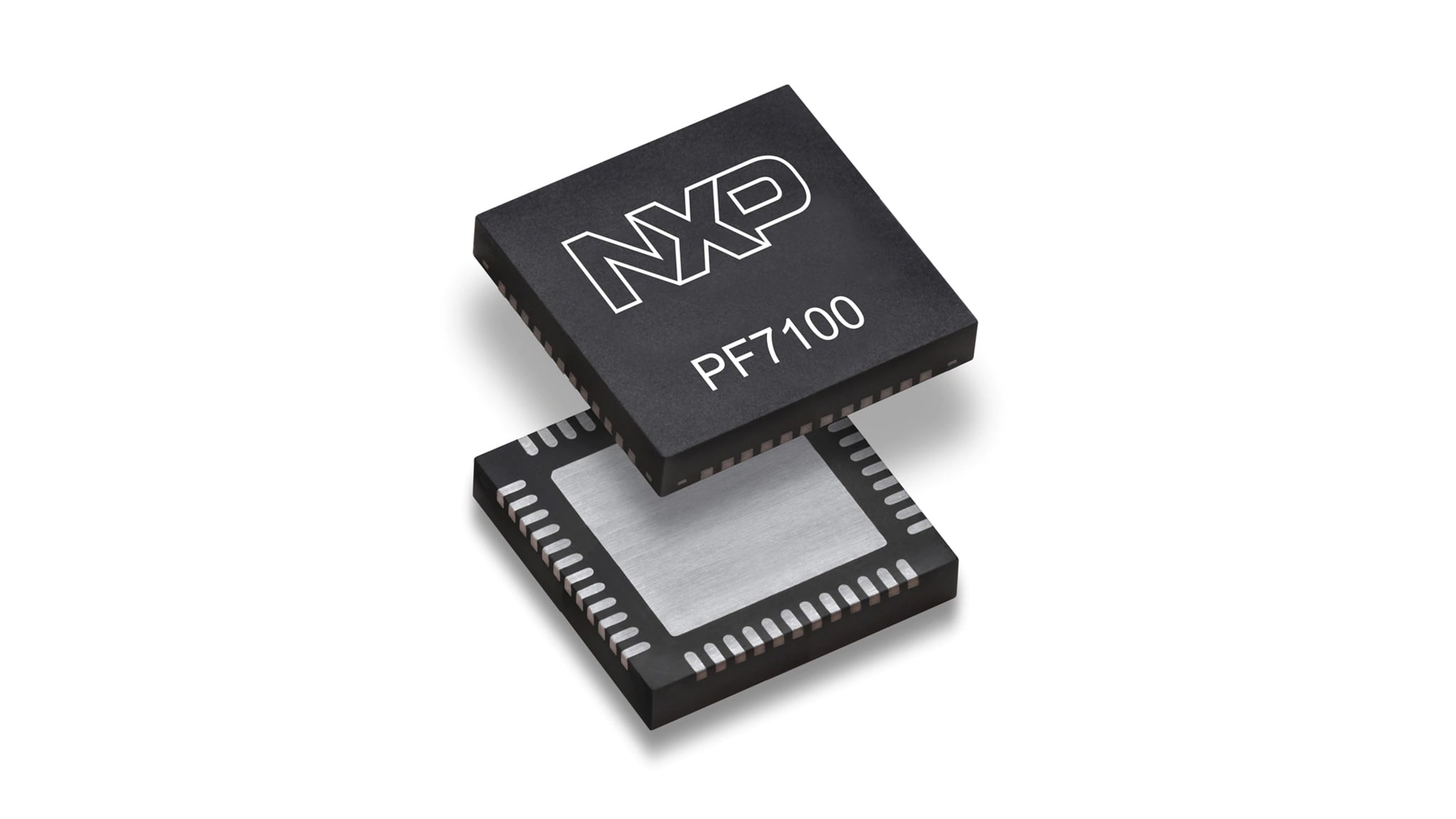

PF7100
正常供应

滚动图片以放大

PF71是一种电源管理集成电路(PMIC)，专为高性能i.MX 8处理器而设计。它拥有5个高效的降压转换器和两个线性稳压器，为处理器、存储器和其他外设供电。

内置一次性可编程存储器可存储关键的启动配置，大大减少通常用于设置输出电压和外部稳压器序列的外部元件。稳压器参数可在启动后通过高速I²C进行调节，灵活地支持不同的系统状态。

框图

PF7100 7通道PMIC

PF7100 7-Channel PMIC Block Diagram
获取框图PDF

特性

系统特性

  • 适用于汽车和工业控制应用
  • 工作环境温度范围：-40°C至105°C或-40°C至125°C(150°C Tj)
  • 5个高效降压转换器：4个降压转换器支持多相和DVS功能
  • 两个带负载开关选项的线性稳压器
  • 看门狗定时器/监测器
  • RTC电源
  • 存储轨的VTT终止
  • 48引脚7×7 mm QFN封装
  • 符合ASIL B安全等级的监测电路
  • 一次性可编程(OTP)器件配置
  • 3.4MHz I²C通信接口
  • 支持i.MX 6、i.MX 8、i.MX8DX、i.MX8DXP、i.MX 8X、i.MX8XL和S32 MCU
  • 输出电流：10A
  • OTP(一次性编程)存储器，可用于灵活的器件配置
  • 高速I²C接口和输入控制(3.4MHz)
  • PGOOD监测电路
  • 外部时钟同步
  • 扩频频谱

符合ASIL B安全等级的监测电路

  • 符合ASIL B安全等级的独立电路
  • 带可编程故障保护的电压监测
  • 先进的热监测和保护
  • 外部看门狗监测和可编程的内部看门狗计数器
  • I²C CRC和写保护机制
  • 模拟内置自检(ABIST)

可编程

  • 电源、排序和特定功能可由一次性可编程(OTP)存储器进行编程

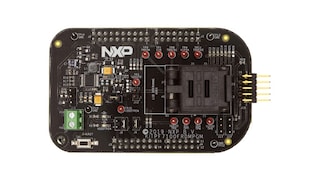

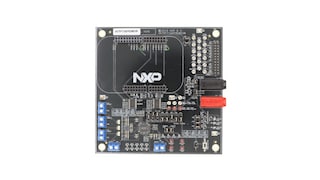

  • 在开发阶段，可以使用KITPF7100FRDMPGM板对定制的OTP部件进行编程
  • 可以提供定制OTP进行生产。请联系恩智浦销售渠道(恩智浦或代理商)
  • 可以使用恩智浦GUI软件工具创建自定义OTP
  • 可在数据手册的“订购信息”一章找到支持主流MCU或SoC的标准预定义OTP

更多

对比表

部件编号 目标市场 OTP ID 恩智浦处理器 系统备注 安全等级 封装
MPF7100BMBA0ES 汽车电子 未编程 i.MX 6、i.MX 8、S32 N/A ASIL B HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVBA0ES 汽车电子 未编程 i.MX 6、i.MX 8、S32 N/A ASIL B HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BMMA0ES 汽车电子 未编程 i.MX 6、i.MX 8、S32 N/A QM HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVMA0ES 汽车和工业控制 未编程 i.MX 6、i.MX 8、S32 N/A QM HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVBA1ES 汽车电子 BA1 i.MX8XL LPDDR4存储器 ASIL B HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVMA1ES 汽车和工业控制 MA1 i.MX8XL LPDDR4存储器 QM HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVBA2ES 汽车电子 BA2 i.MX8XL DDR3L存储器 ASIL B HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVMA2ES 汽车和工业控制 MA2 i.MX8XL DDR3L存储器 QM HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVBA3ES 汽车电子 BA3 i.MX8DXP、i.MX8DX LPDDR4存储器 ASIL B HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVMA3ES 汽车和工业控制 MA3 i.MX8DXP、i.MX8DX LPDDR4存储器 QM HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVBA4ES 汽车电子 BA4 i.MX8DXP、i.MX8DX DDR3L存储器 ASIL B HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
MPF7100BVMA4ES 汽车和工业控制 MA4 i.MX8DXP、i.MX8DX DDR3L存储器 QM HVQFN48；凹可润湿侧翼；48引脚；0.5mm间距；7mmx7mmx0.85mm体积
