面向低功耗应用处理器的电源管理集成电路(PMIC)

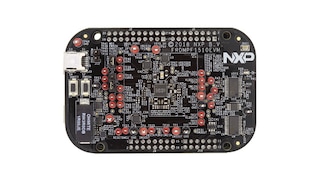

PF1510
正常供应

滚动图片以放大

PF1510是一款电源管理IC(PMIC)，专为低功耗便携式、智能穿戴和物联网(IoT)应用中的i.MX处理器而设计。

它还能够为i.MX 7ULP、i.MX 6SL、6UL、6ULL和6SX处理器提供完整的电源解决方案。

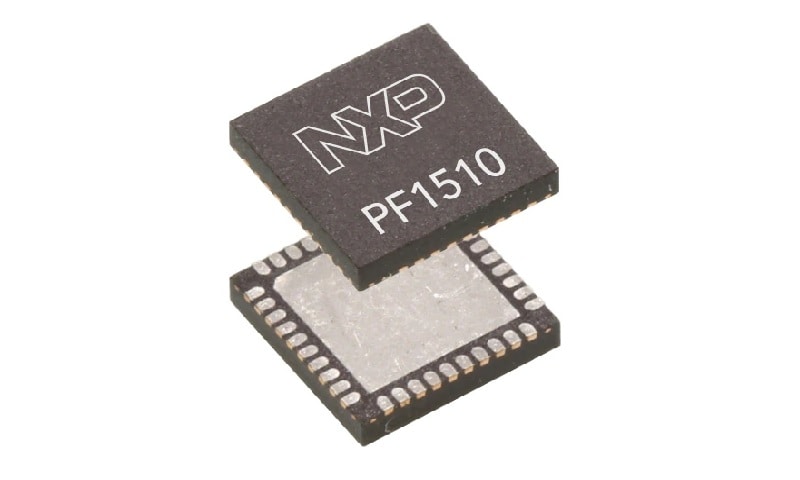

PF1510配备3个高效降压转换器、3个线性稳压器、DDR参考和RTC电源，能够为整个系统供电，包括应用处理器、存储器和系统外设。PF1510采用高能效、节省空间的5x5mm QFN封装。

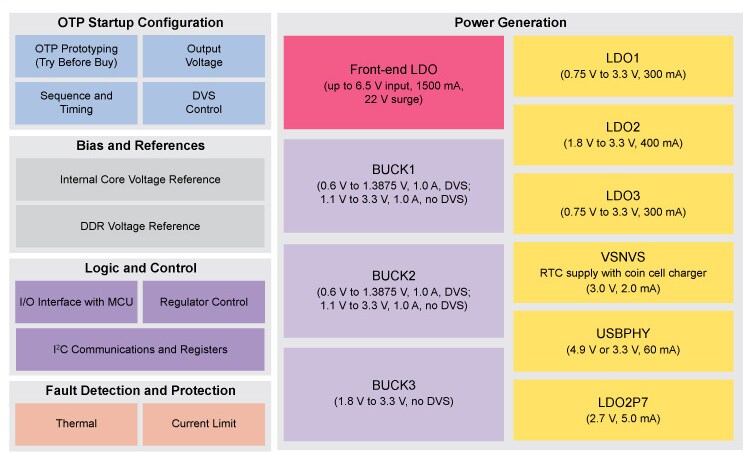

框图

PF1510

PF1510 Block Diagram
获取框图PDF

特性

通用特性

  • 输入电压VIN可通过5V总线、USB或AC适配器(4.1V至6.0V)接入
  • 线性前端输入LDO(1500mA输入限制)
  • 高达6.5V的输入工作范围
  • 环境温度范围：−40°C至105°C
  • VIN可承受0V至+22V的瞬态和直流输入
  • 3个降压转换器
  • 3个LDO稳压器
  • LDO/开关电源
  • RTC电源VSNVS 3.0V，2.0mA
  • 纽扣电池充电器
  • DDR存储器参考电压，VREFDDR，0.5至0.9V，10mA
  • OTP(一次性编程)存储器，用于器件配置
  • 用户可编程的启动顺序、时序、软启动和关断顺序
  • 可编程稳压器输出电压
  • I²C接口和输入控制
  • 用户可编程的待机、睡眠/低功耗和关机(REGS_DISABLE)模式
  • 输出电流：1A
  • 支持i.MX6UL、带DDR3的i.MX6UL/6ULL、带DDR3L的i.MX6UL/6ULL、i.MX6ULL、带LPDDR2的i.MX6UL、i.MX7ULP以及带LPDDR3的i.MX7ULP MCU

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSPPF1510zh 4 应用笔记 Application Note t789 1 手册 Brochure t518 1 数据手册 Data Sheet t520 1 白皮书 White Paper t530 1 zh zh zh 数据手册 Data Sheet 1 1 4.0 English The PF1510 is a power management integrated circuit (PMIC) designed specifically for use with i.MX processors on low-power portable, smart wearable and Internet-of-Things (IoT) applications. 1527112015508712775000 PSP 986.5 KB None None documents None 1527112015508712775000 /docs/en/data-sheet/PF1510.pdf 986524 /docs/en/data-sheet/PF1510.pdf PF1510 documents N N 2018-05-23 PF1510, Power management integrated circuit (PMIC) for low power application processors - Data sheet /docs/en/data-sheet/PF1510.pdf /docs/en/data-sheet/PF1510.pdf Data Sheet N 980000996212993340 2023-08-31 pdf N en Mar 5, 2021 980000996212993340 Data Sheet Y N PF1510, Power management integrated circuit (PMIC) for low power application processors - Data sheet 应用笔记 Application Note 1 2 1 English Learn how to power iMX6 processors with NXP PMICs 1604613188415714326231 PSP 263.9 KB Registration without Disclaimer None documents Extended 1604613188415714326231 /secured/assets/documents/en/application-note/AN12992.pdf 263891 /secured/assets/documents/en/application-note/AN12992.pdf AN12992 documents Y N 2020-11-05 AN12992, Power iMX6 processors with NXP PMIC - Application Note /webapp/Download?colCode=AN12992&lang_cd=zh /secured/assets/documents/en/application-note/AN12992.pdf Application Note N 645036621402383989 2023-06-18 pdf Y en Nov 5, 2020 645036621402383989 Application Note Y N AN12992, Power iMX6 processors with NXP PMIC - Application Note 手册 Brochure 1 3 4 Japanese NXPのPMICは、i.MXアプリケーション、プロセッサ、ネットワーキング、その他のプロセッサ向けに、スケーラブルで堅牢な実績のあるプラットフォーム・ソリューションを提供します。 1455566973736725260918ja PSP 505.9 KB None None documents None 1455566973736725260918 /docs/ja/brochure/PMICBRA4.pdf 505864 /docs/ja/brochure/PMICBRA4.pdf PMICBRA4 documents N N 2016-10-31 Power Management Integrated Circuits Brochure /docs/ja/brochure/PMICBRA4.pdf /docs/ja/brochure/PMICBRA4.pdf Brochure N 712453003803778552 2025-02-19 ja Nov 1, 2023 712453003803778552 Brochure Y N パワー・マネジメント集積回路 (PMIC) – パンフレット 6 English Power management integrated circuits are designed to offer optimum integration for a wide range of devices. 1455566973736725260918 PSP 505.9 KB None None documents None 1455566973736725260918 /docs/en/brochure/PMICBRA4.pdf 505864 /docs/en/brochure/PMICBRA4.pdf PMICBRA4 documents N N 2016-10-31 Power Management Integrated Circuits Brochure /docs/en/brochure/PMICBRA4.pdf /docs/en/brochure/PMICBRA4.pdf Brochure N 712453003803778552 2025-02-19 pdf N en Sep 6, 2024 712453003803778552 Brochure Y N Power Management Integrated Circuits Brochure 白皮书 White Paper 1 4 0 English While entirely invisible to the driver, the software-defined vehicle’s power architecture, orchestrated through System Basis Chips (SBCs) and/or Power Management Integrated Circuits (PMICs), is fundamental. The power supply for every component poses sophisticated challenges which require equally sophisticated solutions. 1718053785186698755373 PSP 212.9 KB Registration without Disclaimer None documents Extended 1718053785186698755373 /secured/assets/documents/en/white-paper/PMICWPA4.pdf 212885 /secured/assets/documents/en/white-paper/PMICWPA4.pdf PMICWPA4 documents Y N 2024-06-10 Powering the Ambition of Software-Defined Vehicles White Paper /secured/assets/documents/en/white-paper/PMICWPA4.pdf https://www.nxp.com/webapp/Download?colCode=PMICWPA4&docLang=en White Paper N 918633085541740938 2025-02-19 en Jun 10, 2024 918633085541740938 White Paper Y N Powering the Ambition of Software-Defined Vehicles White Paper 0 Chinese 软件定义汽车的电源架构由系统基础芯片(SBC)和/或电源管理集成电路(PMIC)进行管理，尽管驾驶员看不见，但电源架构不可或缺。每个组件的电源都构成了复杂的挑战，需要同样复杂的解决方案。 1718053785186698755373zh PSP 212.9 KB Registration without Disclaimer None documents Extended 1718053785186698755373 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf 212885 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf PMICWPA4 documents Y N 2024-06-10 Powering the Ambition of Software-Defined Vehicles White Paper /webapp/Download?colCode=PMICWPA4&lang_cd=zh /secured/assets/documents/zh/white-paper/PMICWPA4.pdf White Paper N 918633085541740938 2025-02-19 pdf Y zh Jun 10, 2024 918633085541740938 White Paper Y N 驱动软件定义汽车 false 0 PF1510 downloads zh-Hans true 1 Y PSP Y Y 应用笔记 1 /secured/assets/documents/en/application-note/AN12992.pdf 2020-11-05 1604613188415714326231 PSP 2 Nov 5, 2020 Application Note Learn how to power iMX6 processors with NXP PMICs Registration without Disclaimer /secured/assets/documents/en/application-note/AN12992.pdf English documents 263891 None 645036621402383989 2023-06-18 Y /webapp/Download?colCode=AN12992&lang_cd=zh AN12992, Power iMX6 processors with NXP PMIC - Application Note /secured/assets/documents/en/application-note/AN12992.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N AN12992, Power iMX6 processors with NXP PMIC - Application Note 263.9 KB AN12992 N 1604613188415714326231 手册 1 /docs/en/brochure/PMICBRA4.pdf 2016-10-31 1455566973736725260918 PSP 3 Sep 6, 2024 Brochure Power management integrated circuits are designed to offer optimum integration for a wide range of devices. None /docs/en/brochure/PMICBRA4.pdf English documents 505864 None 712453003803778552 2025-02-19 N /docs/en/brochure/PMICBRA4.pdf Power Management Integrated Circuits Brochure /docs/en/brochure/PMICBRA4.pdf documents 712453003803778552 Brochure N en None Y pdf 6 N N Power Management Integrated Circuits Brochure 505.9 KB PMICBRA4 N 1455566973736725260918 数据手册 1 /docs/en/data-sheet/PF1510.pdf 2018-05-23 1527112015508712775000 PSP 1 Mar 5, 2021 Data Sheet The PF1510 is a power management integrated circuit (PMIC) designed specifically for use with i.MX processors on low-power portable, smart wearable and Internet-of-Things (IoT) applications. None /docs/en/data-sheet/PF1510.pdf English documents 986524 None 980000996212993340 2023-08-31 N /docs/en/data-sheet/PF1510.pdf PF1510, Power management integrated circuit (PMIC) for low power application processors - Data sheet /docs/en/data-sheet/PF1510.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4.0 N N PF1510, Power management integrated circuit (PMIC) for low power application processors - Data sheet 986.5 KB PF1510 N 1527112015508712775000 白皮书 1 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf 2024-06-10 1718053785186698755373zh PSP 4 Jun 10, 2024 White Paper 软件定义汽车的电源架构由系统基础芯片(SBC)和/或电源管理集成电路(PMIC)进行管理，尽管驾驶员看不见，但电源架构不可或缺。每个组件的电源都构成了复杂的挑战，需要同样复杂的解决方案。 Registration without Disclaimer /secured/assets/documents/zh/white-paper/PMICWPA4.pdf Chinese documents 212885 None 918633085541740938 2025-02-19 Y /webapp/Download?colCode=PMICWPA4&lang_cd=zh 驱动软件定义汽车 /secured/assets/documents/zh/white-paper/PMICWPA4.pdf documents 918633085541740938 White Paper N zh Extended Y pdf 0 Y N Powering the Ambition of Software-Defined Vehicles White Paper 212.9 KB PMICWPA4 N 1718053785186698755373 true Y Products
