适用于i.MX6和i.MX7应用处理器的12通道可配置PMIC

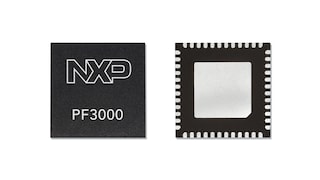

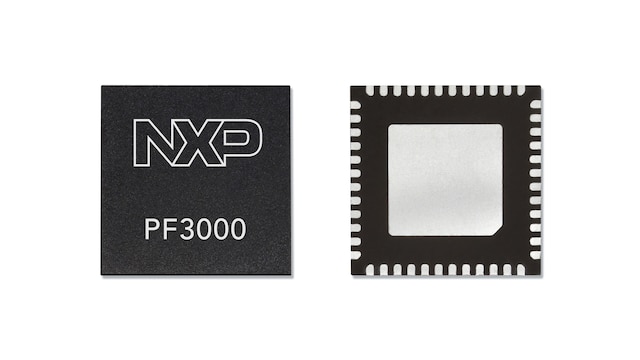

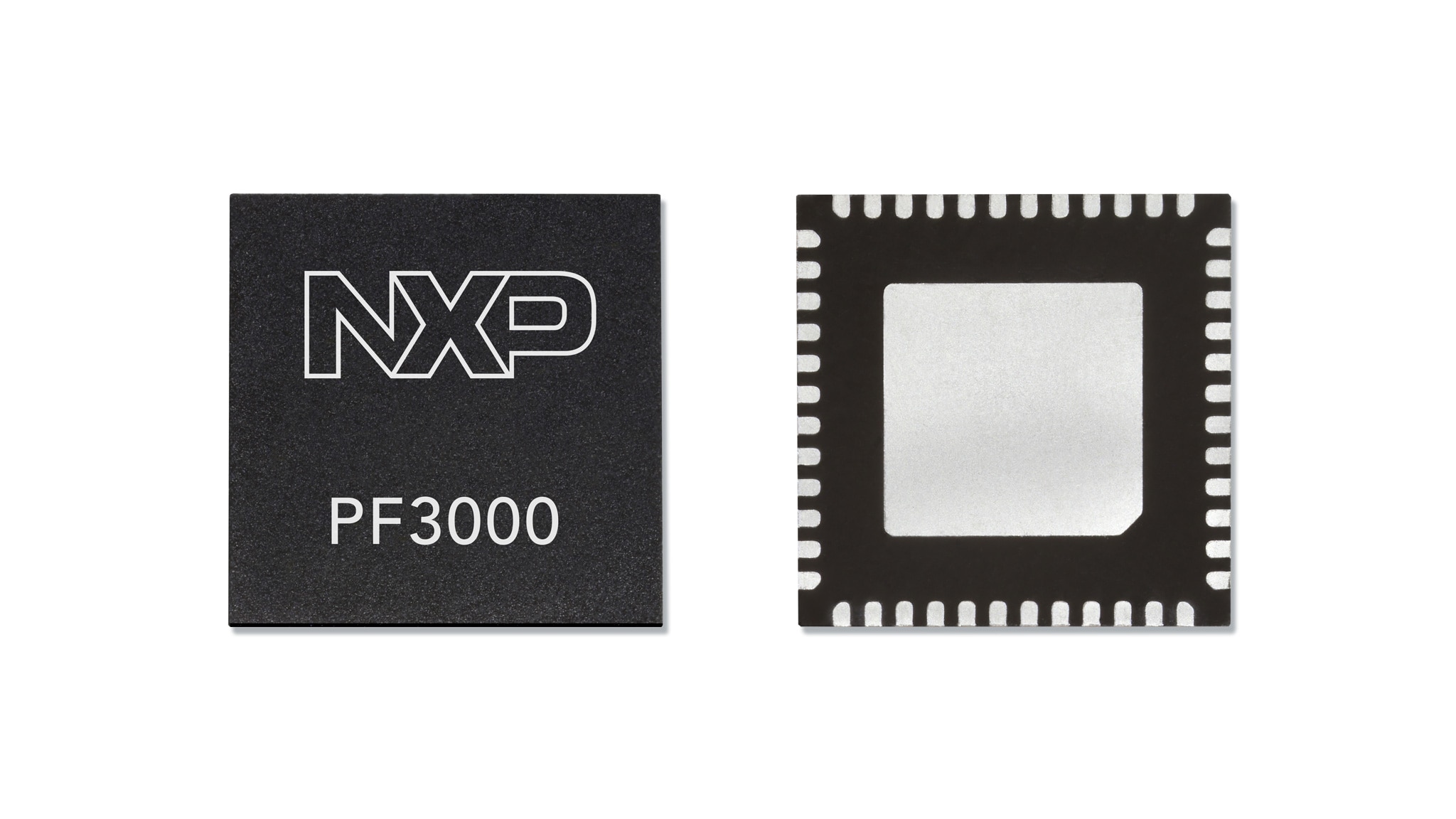

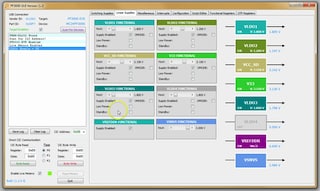

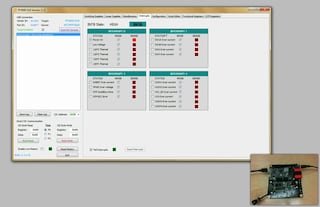

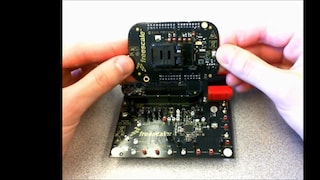

PF3000 正常供应

滚动图片以放大

PF3000电源管理集成电路(PMIC)采用可配置架构，具有不同额定电流、可编程电压和上电顺序的多个输出。因此，PF3000能够为内核处理器、外部存储器和外设供电，提供单芯片系统电源解决方案。

PF3000非常适合基于Cortex® A7的i.MX 7Solo和i.MX 7Dual应用处理器，满足低功耗应用要求。PF3000是超低功耗Cortex® A9内核产品系列的理想配套产品，包括i.MX 6DuaLite和所有单核Cortex A9 i.MX处理器。

多个参考设计均表明与i.MX应用处理器兼容，有助于软件控制的动态电压升降。

框图

PF3000

PF3000 Block Diagram
获取框图PDF

特性

输入电源

  • 2.8V至5.5V输入电压

电源

  • 12通道，总计7.2A电源输送
  • 4路可配置降压转换器，具有强制PWM/ PFM或APS模式
  • 6个用户可编程LDO，提供低功耗状态保持及DDR参考
  • RTC采用VSNVS电源，钮扣电池充电
  • 升压稳压器（为USB提供5.0V输出），DDR参考
  • 输出电压、电流限值、启动、故障、顺序和定时功能可编程

通信

  • I²C接口和输入控制

可配置性

  • 通过OTP定制，直接支持处理器和DDR选择
  • 汽车, 消费电子, 工业级

主要特性

  • 支持i.MX6SL、i.MX6SX、i.MX6UL、i.MX6ULL、i.MX7、i.MX7D和i.MX7S MCU
  • 输出电流：2.75 A

产品长期供货计划

购买/参数

1-10 / 24 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

支持的MCU

电源电压[最小]（V）

电源电压[最大]（V）

输出电流（A）

Number of Buck Regulators

Number of LDO

Switching Frequency LV Buck (MHz)

Number of Boost Regulators

通道数

电池充电器

封装类型

Ambient Operating Temperature (Min to Max) (℃)

Safety Level

器件功能

接口和输入控制

Junction Temperature (Min to Max) (℃)

开发工具

MC32PF3000A0EP
数据手册

正常供应

1K @ CNY22.33

i.MX6SX, i.MX6UL, i.MX7D, i.MX7S

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A1EP
数据手册

正常供应

1K @ CNY22.33

i.MX7

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A2EP
数据手册

正常供应

1K @ CNY22.33

i.MX7

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A3EP
数据手册

正常供应

1K @ CNY22.33

i.MX6SX, i.MX6UL, i.MX7D, i.MX7S

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A4EP
数据手册

正常供应

1K @ CNY22.33

i.MX6SL, i.MX6SX

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A5EP
数据手册

正常供应

1K @ CNY22.33

i.MX6SL, i.MX6SX

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A6EP
数据手册

正常供应

1K @ CNY22.33

i.MX6UL

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A7EP
数据手册

正常供应

1K @ CNY22.33

i.MX6UL

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors

I2C

-40 to 125

KITPF3000FRDMEVM

MC32PF3000A8EP
数据手册

正常供应

1K @ CNY22.33

i.MX6UL, i.MX6ULL

2.8

5.5

2.75

4

6

2

1

12

coin cell battery

HVQFN48

-40 to 85

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM

MC33PF3000A0ES
数据手册

正常供应

1K @ CNY25.49

i.MX6SL, i.MX6SX, i.MX6UL, i.MX7D, i.MX7S

2.8

5.5

2.75

4

6

2

0

10

coin cell battery

HVQFN48

-40 to 105

QM

PMICs for i.MX processors, configurable PMICs

I2C

-40 to 125

KITPF3000FRDMEVM
