适用于i.MX6和i.MX7应用处理器的10通道可配置PMIC

PF3001 正常供应

滚动图片以放大

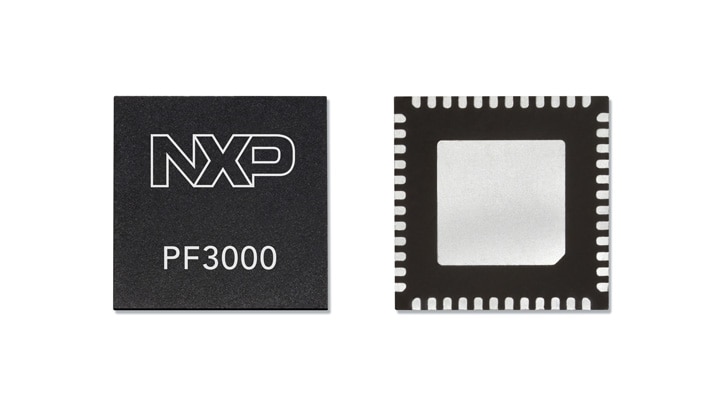

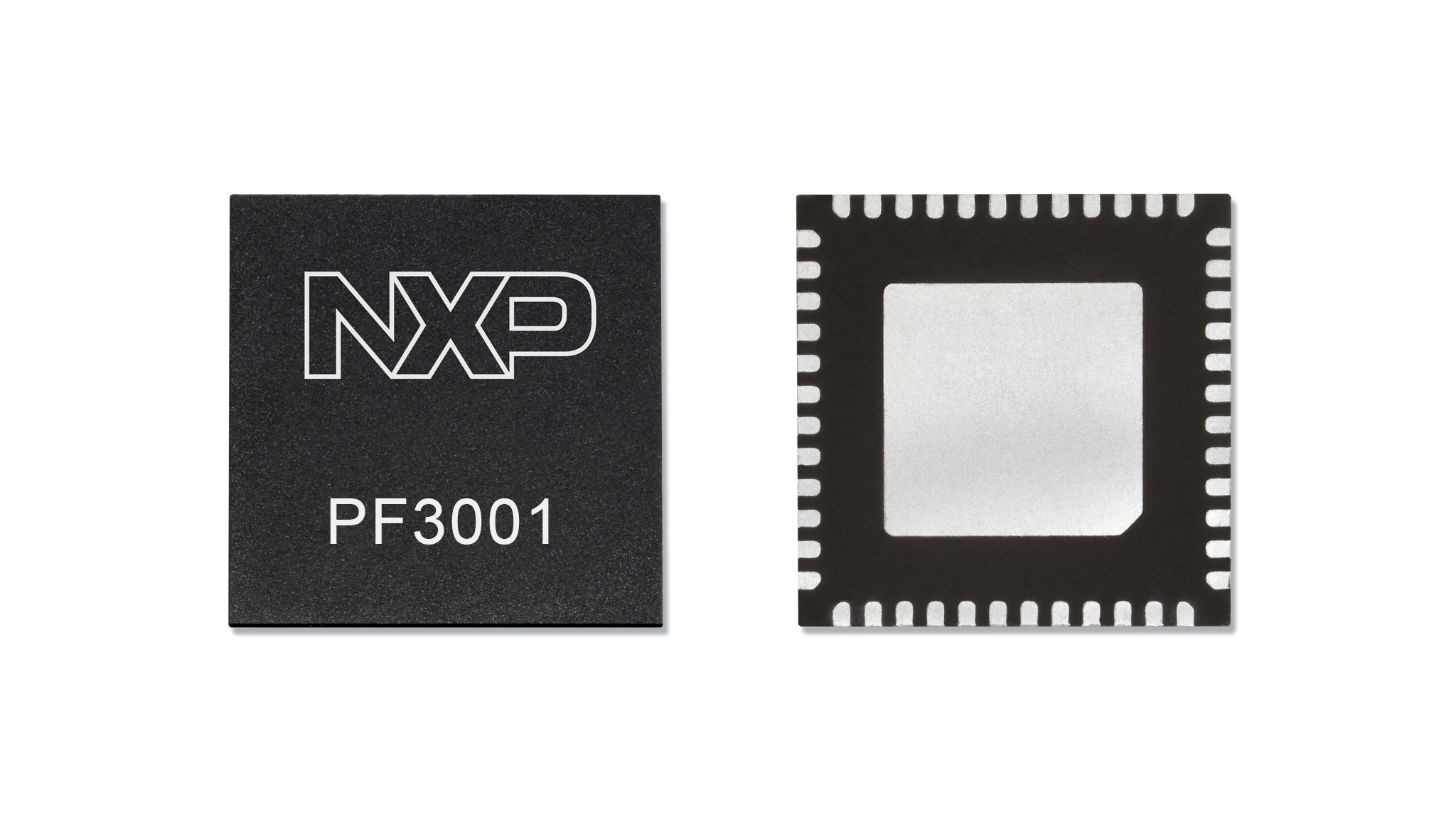

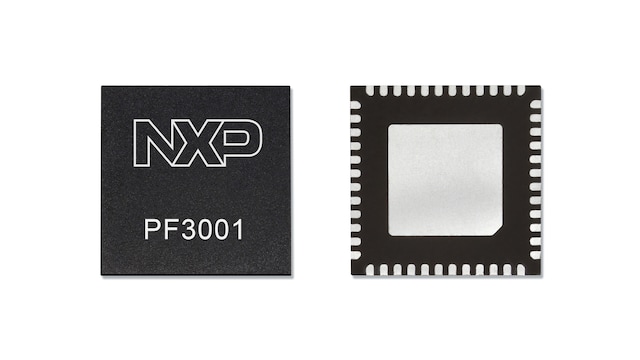

PF3001电源管理集成电路(PMIC)采用可配置架构，具有不同额定电流、可编程电压和预定上电顺序的多个输出。这使PF3001能够为内核处理器、外部存储器和外设供电，提供适合多种应用的单芯片系统电源解决方案，降低设计复杂性，并减少整体物料清单成本。这种高性能架构提供的是成本优化的“永远在线”应用解决方案，而PF3000支持的是消费电子和工业控制应用环境中的低功耗实施 。

PF3001适用于i.MX6UL处理器，也可满足其他低端i.MX 6系列，包括i.MX 6Solo、i.MX 6SoloLite、i.MX 6SoloX、i.MX7D和i.MX7S的功耗要求。与PF3000引脚对引脚兼容，使得i.MX和PF3000/1解决方案具有可扩展性，并且多种参考设计中使用的现有板级支持包(BSP)可重复使用。有了它，客户可以从一家供应商获得平台级解决方案，从而加快产品上市速度并减少工程设计工作量。

框图

PF3001

PF3001 Block Diagram
获取框图PDF

特性

系统特性

  • 2.8 V至5.5 V输入电压
  • 10通道，总计6.6 A电源输送
  • 4通道可配置降压转换器
  • 强制PWM/PFM或APS工作模式
  • 6个用户可编程LDO
  • 纽扣电池充电器
  • 可编程输出电压, 电流限制, 软启动, FSW, 故障中断
  • 与PF3000引脚兼容
  • 高功率7x7 mm QFN封装
  • 汽车, 消费电子, 工业级
  • 输出电流：2.75 A
  • 支持i.MX6SL、i.MX6SX、i.MX6UL、i.MX7D和i.MX7S MCU
  • I²C接口和输入控制

产品长期供货计划

  • 该产品包含在恩智浦产品长期供货计划中，确保为您的嵌入式设计提供稳定的产品供应。PF3001包含在10年产品长期供货计划中
