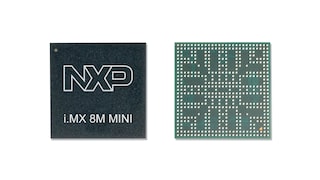

i.MX 8M Mini_Arm Cortex A53_Cortex M4

滚动图片以放大

i.MX 8M Mini是恩智浦首款嵌入式多核应用处理器，采用先进的14LPC FinFET工艺技术构建，提供更快的速度和更高的电源效率。凭借商业和工业级认证以及恩智浦产品长期供货计划的支持，i.MX 8M Mini家族可用于任何通用工业和物联网应用。

数据手册

参考手册

产品详情

框图

i.MX 8M Mini Family Block Diagram

获取框图PDF

特征

多核处理

4个Cortex-A53内核平台，每核运行频率高达1.8GHz
32KB L1-I缓存/ 32 kB L1-D缓存
512 kB L2缓存
1个Cortex-M4内核，运行频率高达400MHz
16 kB L1-I缓存/ 16 kB L2-D缓存

GPU

3D GPU (1个着色器，OpenGL^{^®} ES 2.0)
2D GPU

显示屏接口

1个MIPI DSI (4通道)，带PHY

视频播放

1080p60 VP9 Profile 0, 2 (10位)解码器, HEVC/H.265解码器, AVC/H.264 基线, Main, 高级解码器, VP8解码器
1080p60 AVC/H.264编码器, VP8编码器

音频

5个SAI (12Tx + 16Rx外部I2S通道), 8路PDM输入

摄像头接口

1个MIPI CSI (4通道)，带PHY

USB

2个USB 2.0控制器，带有集成PHY

PCIe

1个PCIe 2.0 (1通道) ，带L1低功耗子状态

以太网

1个千兆以太网(MAC)，带AVB和IEEE 1588, Energy Efficient Ethernet (EEE)，适用于低功耗器件

操作系统

Linux, Android, Windows 10 IoT内核, FreeRTOS

温度

消费电子(0°C至95°C Tj)
工业控制(-40°C至105°C Tj)

封装

FCBGA, 14x14 0.5mm间距

EdgeLock Assurance保障计划

i.MX 8M Mini应用处理器是EdgeLock Assurance保障计划的一部分，旨在满足行业标准，并采用恩智浦安全设计方法。

了解详情

购买/参数

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

设计资源

设计文件

快速参考恩智浦设计文件类型.

5 设计文件

收到完整的详细信息。 请参阅产品足迹及更多信息电子CAD文件.

模型
i.MX 8M Mini BSDL

BSDL版本 0Apr 14, 2021 05:15:0067.9 KBIMX8MMINI-BSDL
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
印刷电路板与电路图
i.MX 8M Mini LPDDR4 EVKB Compute Module Design Files

ZIP版本 0Apr 14, 2022 09:02:006.4 MB8MMINILPD4-CPU2-DESIGNFILES

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
印刷电路板与电路图
i.MX 8M Mini Evaluation Kit LPDDR4 Design Files

ZIP版本 0Apr 14, 2022 17:00:0015.0 MB8MMINILPD4-EVK-DESIGNFILES

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
印刷电路板与电路图
i.MX 8M Mini LPDDR4 EVKB Base Board Design Files

ZIP版本 0Apr 14, 2022 09:02:0010.3 MB8MMINI-BB-DESIGNFILES

请登录
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队
符号和尺寸
i.MX 8M Mini IBIS Model

ZIP版本 1.0Jan 8, 2021 17:31:0020.1 MBIMX8MM-14x14
下载Toggle Dropdown
- 加入列队
- 从列队中删除
- 文档较大时推荐使用。
- 查看列队

硬件

快速参考恩智浦板类型.

1-5 / 7 硬件

评估板和开发板
i.MX 8M Mini应用处理器评估套件亮点

8MMINILPD4-EVK
评估板和开发板
i.MX 8M Mini应用处理器评估套件

8MNANOLPD4-EVK
评估板和开发板
面向Arduino^® Shield的i.MX8M Mini EVK内插板

IMX8MMINI-IARD
其他可用硬件. 查看我们的精选合作伙伴解决方案.
评估板和开发板
i.MX 8音频板

MCIMX8M-AUD
评估板和开发板
Advantech's EWM-W306: NXP 88W8997 M.2 1216

EWM-W306
评估板和开发板
面向Amazon Alexa语音服务的i.MX 8M Mini开发套件

IMX8MMINIALEXADEVKIT
评估板和开发板
MPU / Linux^®托管Matter开发平台

MPU-LINUX-MATTER-DEV-PLATFORM

展开

1-5 / 63 硬件

嵌入式板解决方案
i.MX 8M Mini Pico ITX SBC

• i.MX 8M Mini SoC based Pico ITX SBC • GPU,1080p VPU & Display Controller support on SoC • Gbps Ethernet, USB2.0, PCIe, WiFi5 & BT5.0 support, GNSS receiver, MIPI to H...

By iWave Global Gold 合作伙伴
嵌入式板解决方案
IMX8M Mini SMARC 2.0 Module

Anita i.MX8M Mini CPU I.MX8M Mini general purpose system on module compliant with SMARC 2.0.Designed to work in Industrial, Automotive and consumer environment.

By Firstview Consultants Gold 合作伙伴
嵌入式板解决方案
SECO SOM-uQ7-MX8M-Mini-Nano

μQseven® Computer on Module (CoM) with NXP i.MX 8M Mini & NXP i.MX 8M Nano Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
Nitrogen8M Mini SBC

The Nitrogen8M_Mini SBC features NXP's new i.MX 8M Mini applications processor & PF8121 PMIC, 2GB of LPDDR4 RAM, and 8GB eMMC. The board also comes with optional add-ons ...

By Ezurio Gold 合作伙伴
嵌入式板解决方案
Development board IAC-IMX8MM-Kit

The IAC-IMX8MM-Kit development board is designed based on the NXP 64-bit quad-core Cortex-A53 processor i.MX8M mini.It supports 2D,3D graphic accelerator;

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
嵌入式板解决方案
Single board computer OKMX8MM-C

CPU: i.MX8M Mini Architecture: Cortex-A53 Frequency: 1.8GHz RAM: 2GB DDR3 ROM: 8GB eMMC System: Linux4.14.78+QT5.10.1，Android9.0

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
i.MX8M Mini SOM

i.MX8M Mini SOM offer a compact System-on-Module platform with robust processing, energy efficiency and AI acceleration using 2803S Neural Accelerator – designed for next...

By SolidRun Ltd Gold 合作伙伴
嵌入式板解决方案
iMX8M Mini uCOM Board

The EA iMX8M-Mini uCOM Board provides a quick and easy solution for implementing a high-performance ARM quad-core Cortex-A53/M4 based design, in a tiny (42x45mm) form fac...

By Embedded Artists AB Gold 合作伙伴
嵌入式板解决方案
AW-PU530

i.MX 8M Mini + 88W8997 SoM.

By AzureWave Technologies, Inc. Gold 合作伙伴
嵌入式板解决方案
SECO SOM-Trizeps-VIII-MX8M-Mini

SODIMM-200 CPU Computer on Module (CoM) with NXP i.MX 8M Mini Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
EDM-G-IMX8M-MINI

EDM-G-IMX8M-MINI is a high-performance and reliability SoM featuring NXP i.MX8M Mini applications processor based on ARM Cortex-A53 and Cortex-M4 with certified Wireless ...

By TechNexion Ltd Gold 合作伙伴
嵌入式板解决方案
TQMa8MxML

Embedded Cortex®-A53 module based on i.MX8M Mini with enhanced Audio properties

By TQ-Systems GmbH Platinum 合作伙伴
嵌入式板解决方案
SECO SOM-Myon-II-MX8M-Mini

Micro CPU Computer on Module (CoM) with NXP i.MX 8M Mini & i.MX8M Nano Applications Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
PicoCore™MX8MM

Tiny multi media COM (35x40mm) with WLAN/BT and LVDS based on NXP i.MX8M Mini (PicoCoreMX8MM)

By F&S Elektronik Systeme GmbH Gold 合作伙伴
嵌入式板解决方案
SBC-IOT-iMX8

SBC-IOT-iMX8 is a miniature i.MX8M Mini Single Board Computer designed for industrial control and monitoring applications. Key features: up-to 4GB RAM, 128GB eMMC, LTE m...

By CompuLab Gold 合作伙伴
嵌入式板解决方案
SECO Tanaro Vision 7 PM MX8M-Mini

7.0 inch Rear Mount HMI based on NXP i.MX8M Mini processor

By SECO Gold 合作伙伴
嵌入式板解决方案
IOT-GATE-iMX8

IOT-GATE-iMX8 is a miniature i.MX8M Mini Internet-of-Things Gateway designed for industrial control and monitoring and custom gateway/router applications.

By CompuLab Gold 合作伙伴
嵌入式板解决方案
360(AVM) ADAS APA

It provides Surround View Monitor,ADAS and automatic parking solutions.The surround-view ADAS systems offered integrate multiple ADAS functions such as LDW, BSD, and MOD ...

By Tamsong Technology Co.,LTD Gold 合作伙伴
嵌入式板解决方案
SECO SBC-3.5-MX8M-Mini

3.5” SBC with the NXP i.MX 8M Mini Processors.

By SECO Gold 合作伙伴
嵌入式板解决方案
DART-MX8M-MINI System on Module

Tiny 30x55mm SoM based on iMX8M Mini with Quad 1.8GHz ARM Cortex-A53 + 400MHz Cortex-M4. A member of the DART Pin2Pin family with video encode/decode acceleration support...

By Variscite Platinum 合作伙伴
嵌入式板解决方案
MSC OSM-MF-IMX8MINI

The MSC OSM-MF-IMX8MINI is based on the new OSM 1.1 standard (Size-M) “Medium” for completely machine processible low-cost embedded computer modules during soldering, ass...

By Avnet Embedded Platinum 合作伙伴
嵌入式板解决方案
AW-PU510

AW-PU510 is an advanced application processor designed for smart audio and smart home applications. It integrates a powerful CPU subsystem, advanced multi-format audio pr...

By AzureWave Technologies, Inc. Gold 合作伙伴
嵌入式板解决方案
i.Core MX8M Mini

Equipped with the Cortex-A53 cores plus Cortex-M4, it brings together high-performance computing, power efficiency, enhanced system reliability, and embedded security, st...

By Engicam Gold 合作伙伴
嵌入式板解决方案
system on module FETMX8MM-C

CPU: i.MX8M Mini RAM: 2GB DDR4 Flash: 8GB eMMC OS: Android9.0, Linux4.14.78

By Forlinx Embedded Technology Co., Ltd Gold 合作伙伴
嵌入式板解决方案
MYS-8MMX-V2

The MYS-8MMX SBC is a single board computer based on NXP i.MX8M mini MPU. It offers high processing performance as well as rich peripherals such as M.2 SSD interface, HDM...

By MYIR Electronics Limited Gold 合作伙伴
嵌入式板解决方案
SECO SBC-TANARO-MX8M-Mini

Single Board Computer (SBC) based on NXP i.MX8M Mini processor.

By SECO Gold 合作伙伴
嵌入式板解决方案
Ka-Ro TX8M Mini Computer-on-Module

TX8M Mini includes the i.MX 8M Mini with 4 Cortex A53 at 1.6 GHz 1GB RAM, 4 GB eMMC flash and PMIC. -25 to 85C Operating Range

By Ka-Ro electronics GmbH Gold 合作伙伴
嵌入式板解决方案
MSC SM2S-IMX8MINI

The MSC SM2S-IMX8MINI module features NXP’s i.MX 8M Mini processors that are based on latest 14nm FinFET technology to allow high computing and graphics performance at ve...

By Avnet Embedded Platinum 合作伙伴
嵌入式板解决方案
UCM-iMX8M-Mini

UCM-iMX8M-Mini is an ultra miniature (28 x 38) i.MX8M Mini System-on-Module designed for integration into embedded applications. Key features: 4GB RAM, 64GB eMMC, GbE, P...

By CompuLab Gold 合作伙伴
嵌入式板解决方案
QSXM for i.MX 8M Mini

At 29x29mm by 2.6mm high, the QFN SMT package is ideal for reliable, high-volume SMT assembly. The QSXM is pin-compatible with COMs for the i.MX 8M Plus and Nano.

By Ka-Ro electronics GmbH Gold 合作伙伴
嵌入式板解决方案

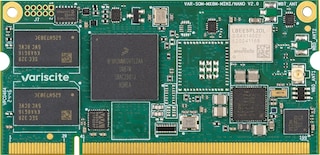

VAR-SOM-MX8M-MINI System on Module

A highly scalable, low power, cost-effective SoM solution based on i.MX8M Mini 1.8GHz Quad Cortex-A53, 4 GB DDR4, VPU/GPU, certified WiFi/BT & CAN bus. A member of the VA...

By Variscite Platinum 合作伙伴
嵌入式板解决方案
SBC IMX8M Mini

MINA Single Board Computer SBC built upon the NXP i.MX8M Mini embedded multicore applications processor. It’s standard 3,5” and SMARC 2.0 form factor guarantees the compl...

By Firstview Consultants Gold 合作伙伴
嵌入式板解决方案
MITO 8M Mini - i.MX8M Mini

MITO 8M Mini SOM is our solution for upgrading existing solutions with the NXP's state-of-the-art. The pin2pin compatibility with i.MX6 and i.MX6UL SOC solutions and futu...

By DAVE Embedded Systems Gold 合作伙伴
嵌入式板解决方案
HummingBoard Ripple

HummingBoard Ripple is a cost-effective and optimized platform for the i.MX8M, i.MX8M Mini, i.MX8M Plus and i.MX8M Nano family of SOMs.

By SolidRun Ltd Gold 合作伙伴
嵌入式板解决方案
Verdin iMX8M Mini

The perfect balance between performance, power and cost, the Verdin iMX8M Mini SoMs provide up to four powerful Arm 64 bit Cortex-A53 cores. The performance makes these S...

By Toradex® Platinum 合作伙伴
嵌入式板解决方案
System on module IAC-IMX8MM-CM

IAC-IMX8MM-CM System on Module（SOM）adopts i.MX8M mini Quad Core 64-bit processor ,inbuilt with 4xARM Cortex-A53 kernel,basic frequency up to 1.8GHz and 1x general Cortex-...

By Zhejiang Qiyang Intelligent Technology Co., Ltd. Gold 合作伙伴
嵌入式板解决方案

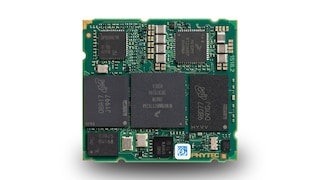

phyCORE-i.MX 8M Mini/Nano
