面向低功耗应用的PMIC

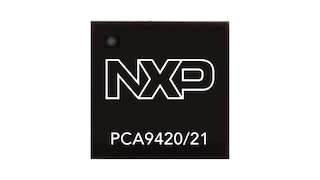

PCA9420-PCA9421
正常供应

滚动图片以放大

PCA9420/21是高集成度的电源管理IC(PMIC)，旨在为低功耗微控制器应用或其他由锂电池供电的类似应用和/或5V适配器非便携式应用提供电源管理解决方案。

PCA9420/21还集成了两个降压转换器、两个LDO和可编程输出电压。PCA9420集成了线性电池充电器，能够通过I²C可编程恒定电流(CC)和恒定电压(CV)充电至315mA电流。

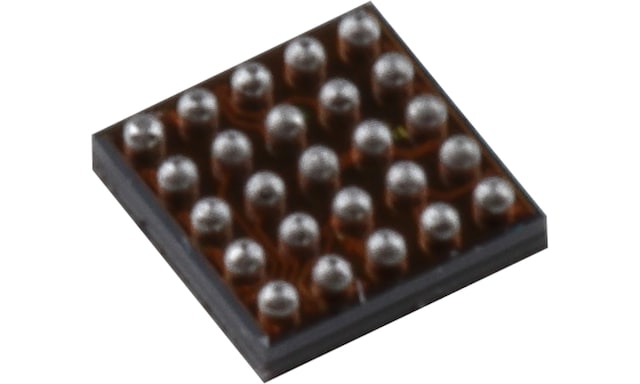

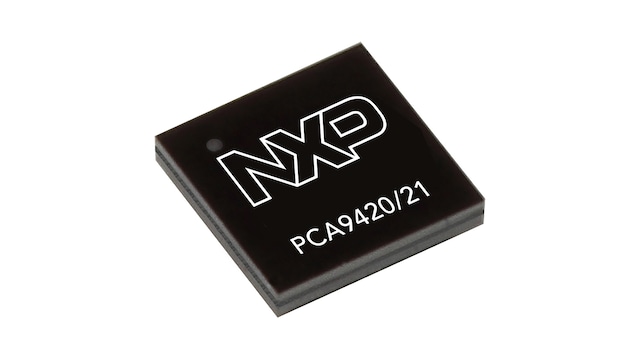

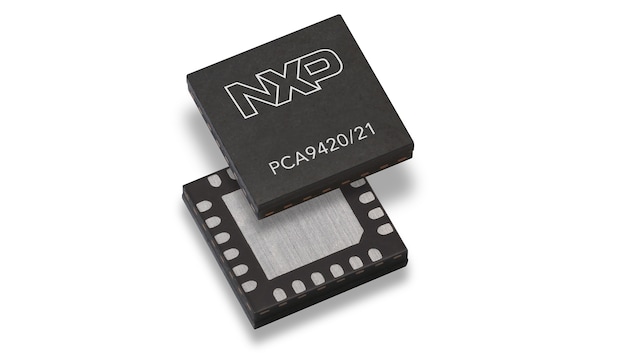

芯片采用2.09mmx2.09mm，5x5凸点，0.4mm间距WLCSP封装；以及3mmx3mm，24引脚QFN封装。

框图

PCA9420-PCA9421

PCA942X Block Diagram
获取框图PDF

特性

一般特性

  • 适用于低功耗应用
  • 船舶模式下典型的100nA静态电流
  • 解决方案总体规模小
  • 内置“模式”配置，以适应支持不同MCU工作模式的快速模式切换
  • 支持i.MX RT MCU
  • 负载电源电压2V(最小)，6.8V(最大值)
  • I²C接口和输入控制
  • 输出电流：0.5A

电池充电器(仅适用于PCA9420)

  • 线性电池充电器，可为单芯锂离子电池充电
  • VIN引脚上耐受20V电压
  • 可编程恒流(高达315mA)和预充电低压电流阈值
  • 可编程恒压调节
  • 内置保护功能，如输入OVP、电池SCP、热保护
  • 符合JEITA
  • 电池附加检测

温度

  • 过温保护
  • 环境温度范围：-40°C~+85°C

DC-DC(降压)转换器

  • 可编程输出电压
  • SW1：内核降压转换器，0.5V~1.5V输出电压，25mV/步，固定电压1.8V，最高250mA
  • SW2：系统降压转换器，1.5V~2.1V/2.7V~3.3V输出电压，25mV/步，最高500mA
  • 超节能的低功耗模式

LDO

  • 可编程输出电压调节
  • LDO1：常开LDO，1.70V~1.90V输出电压，25mV/步，最高1mA
  • LDO2：系统LDO，1.5V~2.1V/2.7V~3.3V输出电压，25mV/步，最高250mA

接口

  • 1MHz I²C总线目标接口

封装

  • 2.09mmx2.09mm，5x5凸点，0.4mm间距WLCSP
  • 3mmx3mm，24引脚QFN

更多
