面向超低功耗应用的13通道电源管理集成电路(PMIC)

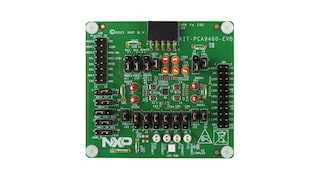

PCA9460
正常供应

滚动图片以放大

PCA9460系列专为超低功耗应用而设计，如智能家居、楼宇功能安全及信息安全、可穿戴设备、智能家电和中型家电。

  • PCA9460A/B/C是一款单芯片电源管理IC(PMIC)，专门支持i.MX 8ULP系列处理器。
  • 该器件采用WSCSP42封装，包含4个高效1A降压稳压器、4个VLDO、一个SVVS LDO和4个150mΩ负载开关。两个降压稳压器支持动态电压调节(DVS)功能以及可编程的上升和下降时间。
  • 该器件的工作环境温度范围为-40°C至85°C。

框图

PCA9460

PCA9460 Block Diagram
获取框图PDF

特性

4个降压稳压器

  • 两个1A降压稳压器
  • 两个带DVFS的1A降压稳压器
  • 低Iq(低功耗模式下为1.5uA，正常模式下为5.5uA)

4个线性稳压器

  • 1个250mA NMOS LDO
  • 3个250mA PMOS LDO
  • 内置有源放电电阻

一般特性

  • 10mA SNVS LDO
  • 灵活的电源开/关顺序
  • Fm+ 1MHz I²C接口
  • 输出电流：1A
  • 支持i.MX 8ULP MCU
  • I²C接口和输入控制

4个带有源放电电阻的负载开关

  • 150mΩ导通电阻
  • 在不同模式下均提供开/关控制
  • 可配置为具有两种闪烁模式的LED驱动器

电源控制IO

  • 电源开/关控制
  • 待机/运行模式控制
  • 智能DVS控制

ESD防护

  • 人体模型(HBM)：+/- 2000V
  • 充电设备型号(CDM)：+/-500V

封装

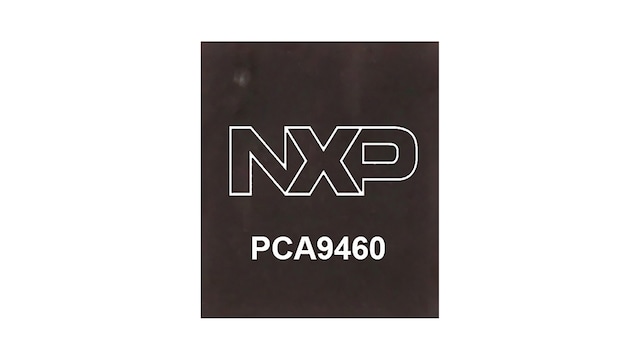

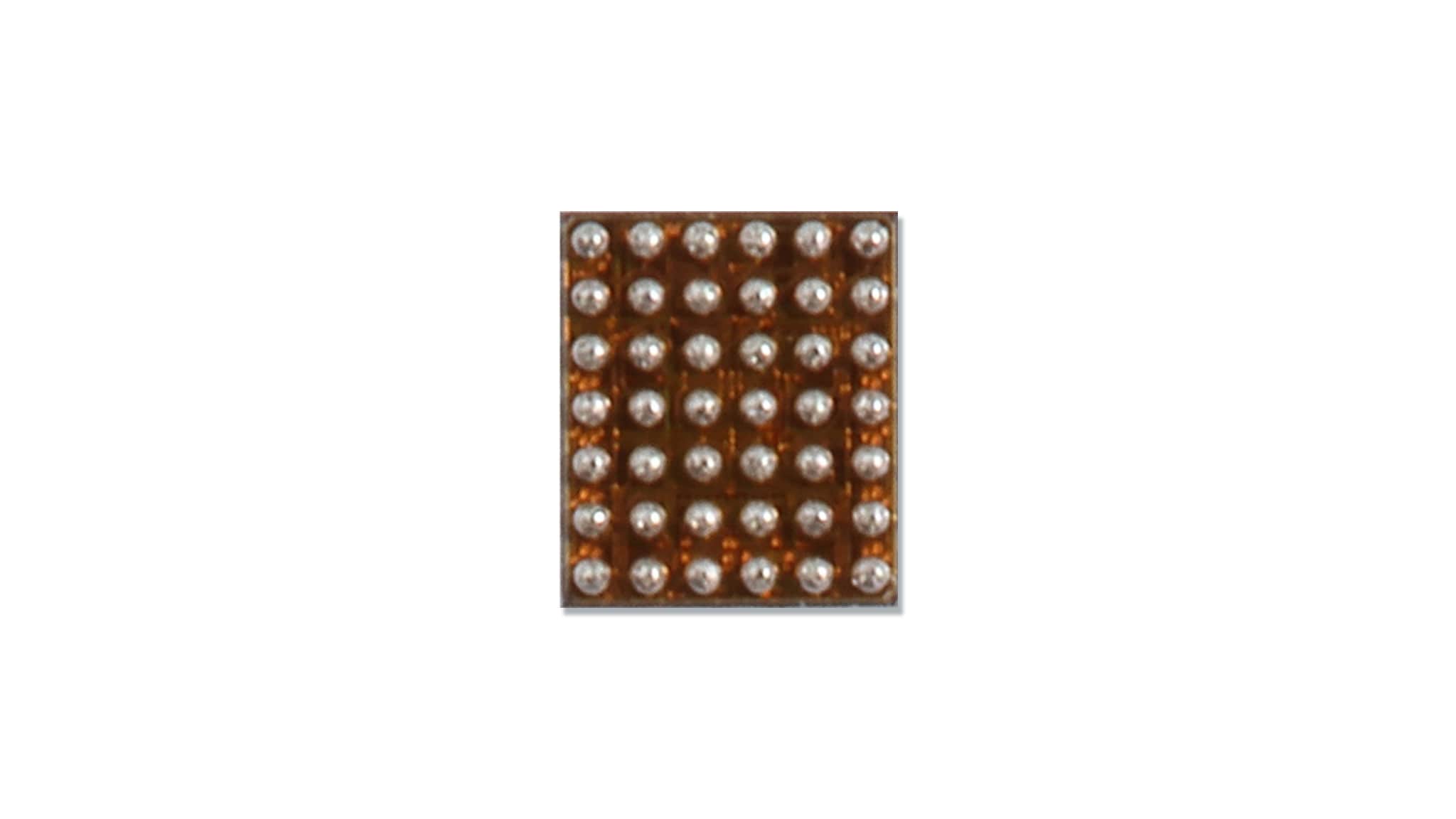

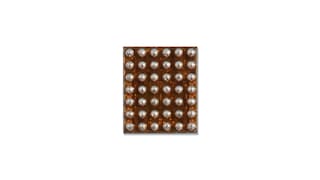

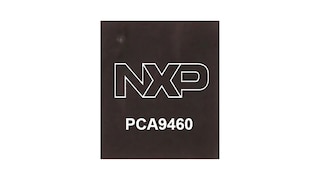

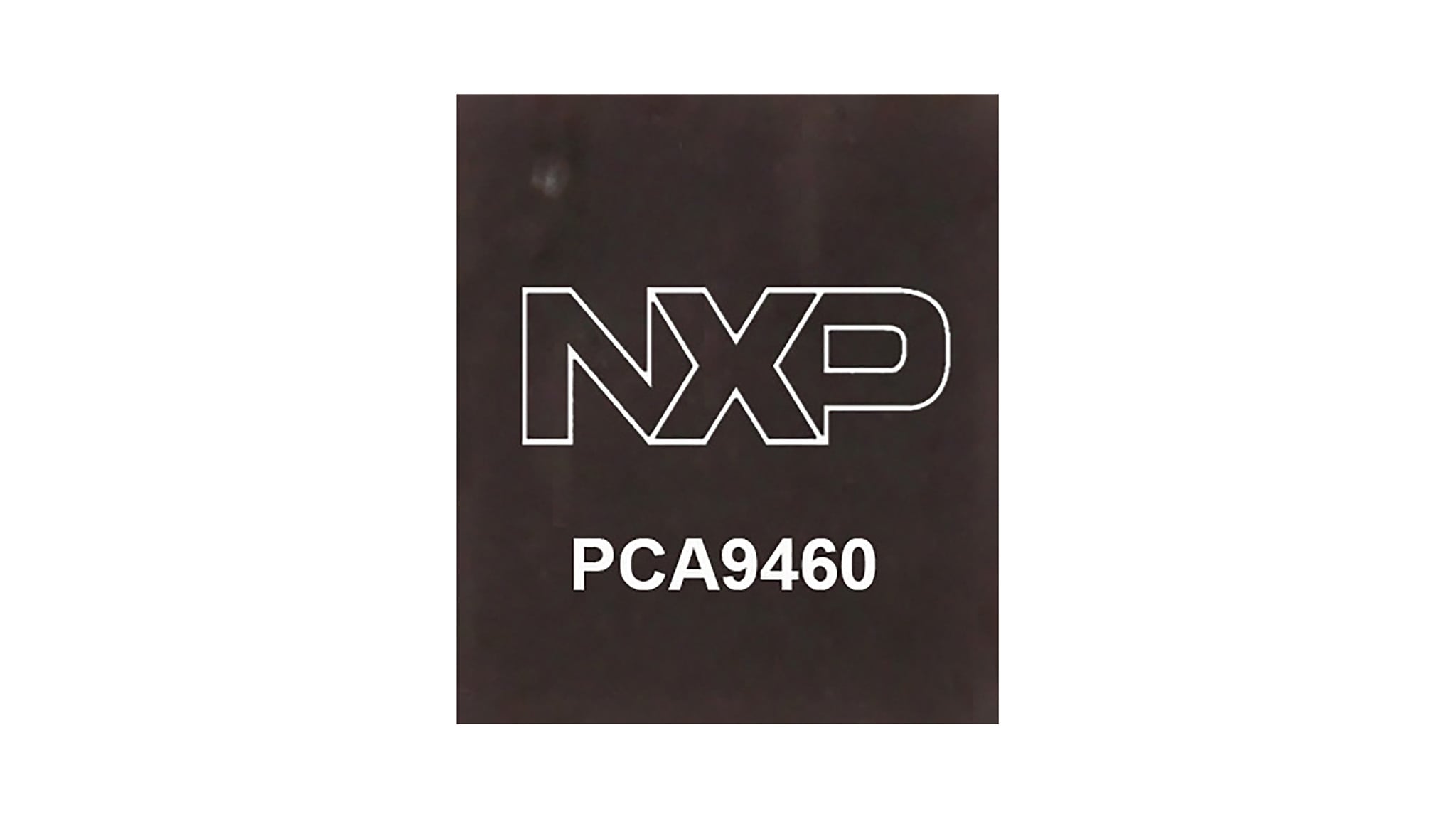

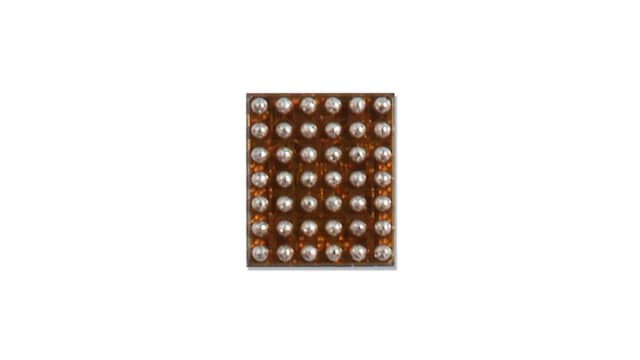

  • 7x6凸点阵列，0.4mm间距，WL-CSP，2.86mmx2.46mm

更多

购买/参数

3 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

预算报价（不含税）

支持的MCU

电源电压[最小]（V）

电源电压[最大]（V）

输出电流（A）

Number of Buck Regulators

Number of LDO

Switching Frequency LV Buck (MHz)

Number of Boost Regulators

通道数

Ambient Operating Temperature (Min to Max) (℃)

Safety Level

器件功能

接口和输入控制

额外功能——模拟

Junction Temperature (Min to Max) (℃)

PCA9460AUK
数据手册

正常供应

10K @ CNY10.70

i.MX 8ULP

2.7

5.5

1

4

5

2

0

9

-40 to 85

QM

PMIC for low power applications

I2C

2.86 mm x 2.46 mm, 42-bumps Wafer level CSP package, DVS support (Buck2/3), Four load switches, Ultra low Iq current

-40 to 125

PCA9460BUK
数据手册

正常供应

10K @ CNY10.41

i.MX 8ULP

2.7

5.5

1

4

5

2

0

9

-40 to 85

QM

PMIC for low power applications

I2C

2.86 mm x 2.46 mm, 42-bumps Wafer level CSP package, DVS support (Buck2/3), Four load switches, Ultra low Iq current

-40 to 125

PCA9460CUK
数据手册

正常供应

10K @ CNY10.91

i.MX 8ULP

2.7

5.5

1

4

5

2

0

9

-40 to 85

QM

PMIC for low power applications

I2C

2.86 mm x 2.46 mm, 42-bumps Wafer level CSP package, DVS support (Buck2/3), Four load switches, Ultra low Iq current

-40 to 125
