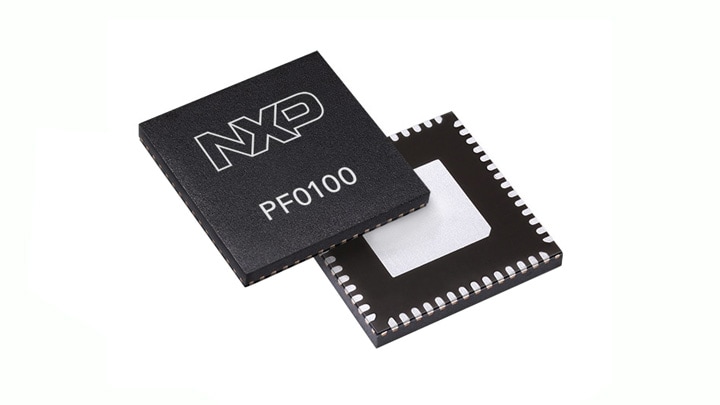

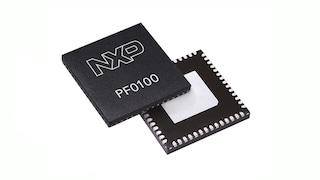

14通道可配置的PMIC
MMPF0100是PF系列PMIC的首款产品，包括以下特性：
- 可配置和可编程的架构，支持各种额定电流的输出，为内核处理器、存储器和多种外设供电
- 集成完备的系统级电源管理功能，简化了系统设计
- 优化的性能架构为消费电子、工业控制和汽车应用带来高效、先进的功能
MMPF0100非常适合所有i.MX 6处理器：i.MX 6SoloX、i.MX 6SoloLite、i.MX 6Solo、i.MX 6DualLite、i.MX 6Dual、i.MX 6Quad、i.MX 6DualPlus和i.MX 6QuadPlus。它内置于i.MX 6系列的多个参考设计中，可提供平台级解决方案，加快产品上市速度。
产品详情
特性
输入电源
- PMIC输入电压范围：2.8-4.5V
电源
- 4至6个降压稳压器，具体取决于配置
- 可选择单相/两相/并联
- DDR终端跟踪模式选项
- DVS选项
- 5V升压稳压器，用于USB OTG
- 7个通用线性稳压器
- 纽扣电池充电器和RTC电源
- DDR终端参考电压
- 电源控制逻辑，带处理器接口和事件检测
- 输出电压、顺序和时序功能可编程
通信
- I²C接口和输入控制
可配置性
- 可单独编程的开、关和待机模式
- OTP(一次性编程)存储器，用于器件配置
- 在配置寄存器的熔断器熔断之前，可重新配置OTP功能
- 最终用户可编程
- 具有两种封装可选
- E-Type QFN——8mmx8mm，56Ld
- 可润湿侧翼QFN——8mmx8mm，56Ld
- 可满足消费电子/工业和汽车行业的AEC-100等级3规格
- 较高的照明负载效率
- 面向i.MX6动态电压调节的软件支持
主要特性
- 支持i.MX53、i.MX6D、i.MX6DL、i.MX6Q、i.MX 6QP、i.MX6S、i.MX6SL、i.MX6SLL和i.MX6SX MCU
- 输出电流：4.5A
产品计划
相关产品
12通道可配置的PMIC
购买/参数
1-10 / 24 结果
包含 5 不推荐用于新设计
部件 | 订购 | 计算机辅助设计模型 | 状态 | 预算报价（不含税） | 支持的MCU | 电源电压[最小]（V） | 电源电压[最大]（V） | 输出电流（A） | Number of Buck Regulators | Number of LDO | Switching Frequency LV Buck (MHz) | Number of Boost Regulators | 通道数 | 电池充电器 | 封装类型 | Ambient Operating Temperature (Min to Max) (℃) | Safety Level | 器件功能 | 接口和输入控制 | 额外功能——模拟 | Junction Temperature (Min to Max) (℃) | 开发工具 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
正常供应 | 1K @ CNY26.71 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | -40 to 125 | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY28.07 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | -40 to 125 | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY28.94 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 1 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | -40 to 125 | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY26.71 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY26.71 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY26.71 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY28.07 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY26.71 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY28.07 | i.MX 6QP, i.MX6D, i.MX6DL, i.MX6Q, i.MX6S, i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 105 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE | |||
正常供应 | 1K @ CNY26.71 | i.MX6SX | 2.8 | 4.5 | 4.5 | 6 | 7 | 2 | 1 | 14 | coin cell battery | HVQFN56 | -40 to 85 | QM | PMICs for i.MX processors, configurable PMICs | I2C | Demonstrated Robust Platform with BSP, Power Efficiency, Power Sequencing, Product Longevity Program, Scalability, Sleep Mode, USB Supply Voltage, USB-OTG | — | KITPF0100EPEVBE |
文档
快速参考恩智浦 文档类别.
1-10 / 17 文件
紧凑列表
产品变更通知 (2)
勘误表 (2)
-
MMPF0100Z Errata for Mask 2N47F, 1N18J - Errata[MMPF0100ZER]
-
MMPF0100 Errata for Mask 1N47F and 1N18J - Errata[MMPF0100ER]亮点
应用笔记 (7)
1-10 / 17 文件
紧凑列表
产品变更通知 (2)
勘误表 (2)
-
MMPF0100Z Errata for Mask 2N47F, 1N18J - Errata[MMPF0100ZER]
-
MMPF0100 Errata for Mask 1N47F and 1N18J - Errata[MMPF0100ER]亮点
应用笔记 (7)
手册 (1)
数据手册 (2)
白皮书 (2)
-
驱动软件定义汽车[PMICWPA4]
选型指南 (1)
-
面向工业市场的模拟产品 - 简介[INDCONTANLPRDFL]
设计资源
硬件
快速参考恩智浦
板类型.
4 硬件
-

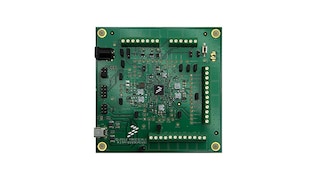

评估板和开发板评估套件 - MMPF0100，14通道可配置PMIC亮点
