Linux®POS读卡器

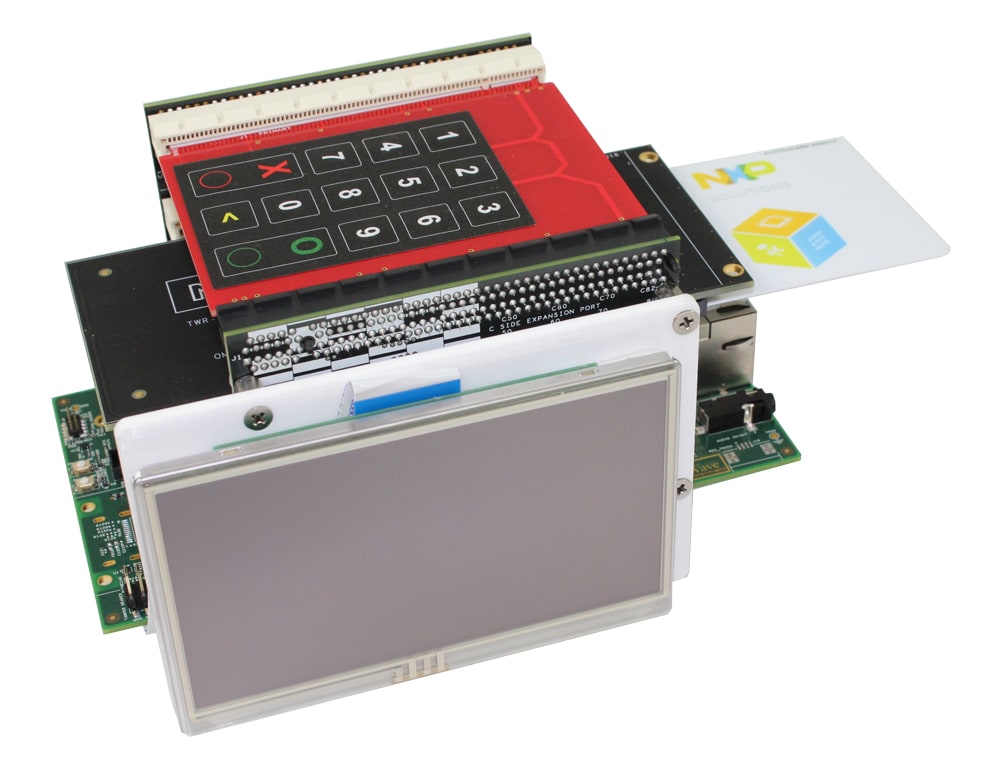

SLN-POS-LRDR

滚动图片以放大

SLN-POS-LRDR Linux POS机读卡器解决方案使您能够快速构建基于Linux的POS终端，或者添加符合PCI®和EMVCo®标准的PIN输入设备（PED）、NFC读卡器、芯片读卡器和磁条读卡器（MSR），从而支持信用卡支付。该解决方案已获得EMVCo和PCI PTS标准的预认证，让客户公司有信心一次通过认证，从而节省认证失败和重新提交的费用。

Linux POS - 简介

框图

选择框图:

Linux PoS硬件

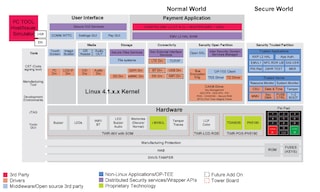

Linux Card Reader R1 Software Architecture Diagram

Linux PoS软件

Linux Card Reader R1 Software Architecture Diagram
获取框图PDF

支持的器件

安全和身份验证

接触式读卡器

  • TDA8035HN: 高度集成的低功耗智能卡接口

RFID

NFC读卡器

  • PN5180: 完全符合NFC Forum的前端IC

处理器和微控制器

i.MX 6处理器

  • i.MX6UL: i.MX 6UltraLite处理器 - 低功耗，安全，Arm® Cortex®-A7内核

电源管理

PMIC

  • PF3001: 适用于i.MX6和i.MX7应用处理器的10通道可配置PMIC

负载开关

模拟及混合信号

电压电平转换器

  • NTS0104: 双电源转换收发器(开漏，自动方向感测)

接口

USB接口

  • PTN5150: 适合USB Type-C应用的CC逻辑

更多

特征

EMVCo

  • EMVCo Level 1 CT/CL stacks by NXP
  • EMVCo Level 2 CT/CL stacks by PayCore
  • EMVCo and PCI POI 5.x Certification

i.MX

  • i.MX6UL single Arm Cortex-A7 Processor

Payment Readers

  • PN5180 contactless 13.56 MHz NFC front-end IC
  • TDA8035 contact front-end IC

购买选项

SLN-POS-LRDR-Image

点击展开

  • SLN-POS-LRDR
    正常供应

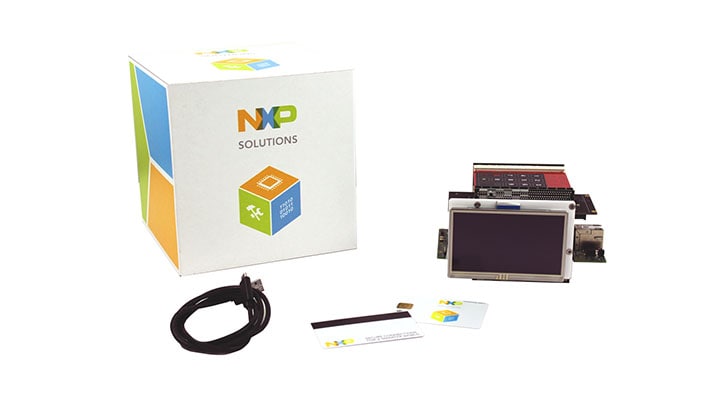

  • Linux® Point of Sale (POS) Reader.

  • 套件包含：

    • 硬件
    • 快速入门指南
    • USB线缆
申请该项
