i.MX 8XLite评估套件

MCIMX8DXL-WEVK
正常供应

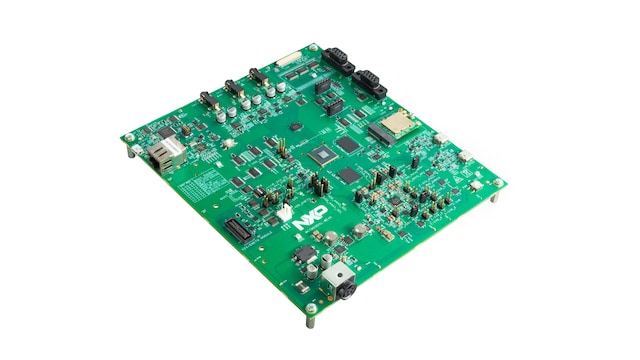

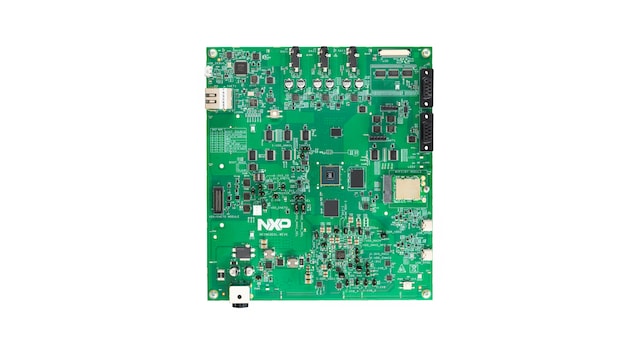

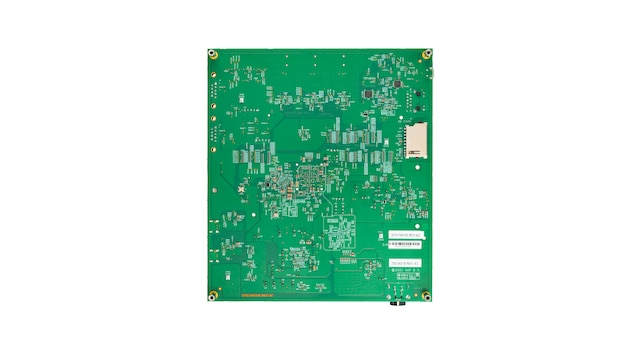

滚动图片以放大

i.MX 8XLite评估套件(EVK)提供了一个平台，可评估和开发基于Arm® Cortex® A35 + Cortex-M4F的i.MX 8XLite应用处理器，以及恩智浦PF7100电源管理集成电路(PMIC)解决方案和传感器的使用情况。

i.MX 8XLite处理器系列具有高度集成的特点，支持安全、汽车远程信息处理(V2X)和时间敏感网络(TSN)，同时满足高能效要求。此评估套件具有高度优化的驱动程序和软件，可支持嵌入式工业和汽车市场的广泛应用。

产品详情

支持的器件

处理器和微控制器

i.MX 8应用处理器

  • iMX8XLite: 车载信息服务、V2X和工业控制的i.MX 8XLite处理器

电源管理

PMIC

  • PF7100: 用于高性能应用的7通道电源管理集成电路，符合ASIL B安全等级

安全SBC

  • FS5600: 汽车双降压稳压器和控制器，带有电压监测器和看门狗定时器

接口

I²C逻辑多路复用器/开关

  • PCA9548A: 带复位功能的8通道I²C总线开关

具有灵活数据传输速率的CAN

  • TJA144x: 汽车CAN FD收发器系列

特性

处理器

  • i.MX 8DualXLite应用处理器
  • 2个Cortex-A35，运行频率高达1.2GHz
  • Cortex-M4 @ 264MHz

电源管理

  • MPF7100BVMA1ES
  • MFS5600AMMA7ES

存储器

  • 1GB 16位LPDDR4-2400
  • 32GB eMMC 5.1
  • 64MB Octal FlexSPI NOR闪存

连接

  • 1个带TSN的1千兆以太网
  • USB 2.0 Type-C (x2)
  • SD卡
  • CAN (x2)
  • 3.5mm音频插孔(x3)
  • M.2接口（用于Wi-Fi模块接口）

调试

  • JTAG 10引脚接口
  • 串行转USB接头

其他特性

  • 集成式能源管理
  • V2X/以太网模块接口
  • 并行LCD接口
  • 电源指示和通用用途的指示灯

更多

购买选项

MCIMX8DXL-WEVK-Image

点击展开

  • MCIMX8DXL-WEVK
    正常供应

  • i.MX 8XLite Evaluation Kit .

  • 套件包含：

    • CPU板
    • Wi-Fi模块
    • 电源
    • AC电源线
    • 全球适配器
    • USB C型电缆
    • USB B型电缆
    • SD卡带BSP镜像
  • $799.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 19
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
