i.MX 8ULP评估套件9(EVK9)

MCIMX8ULP-EVK9

滚动图片以放大

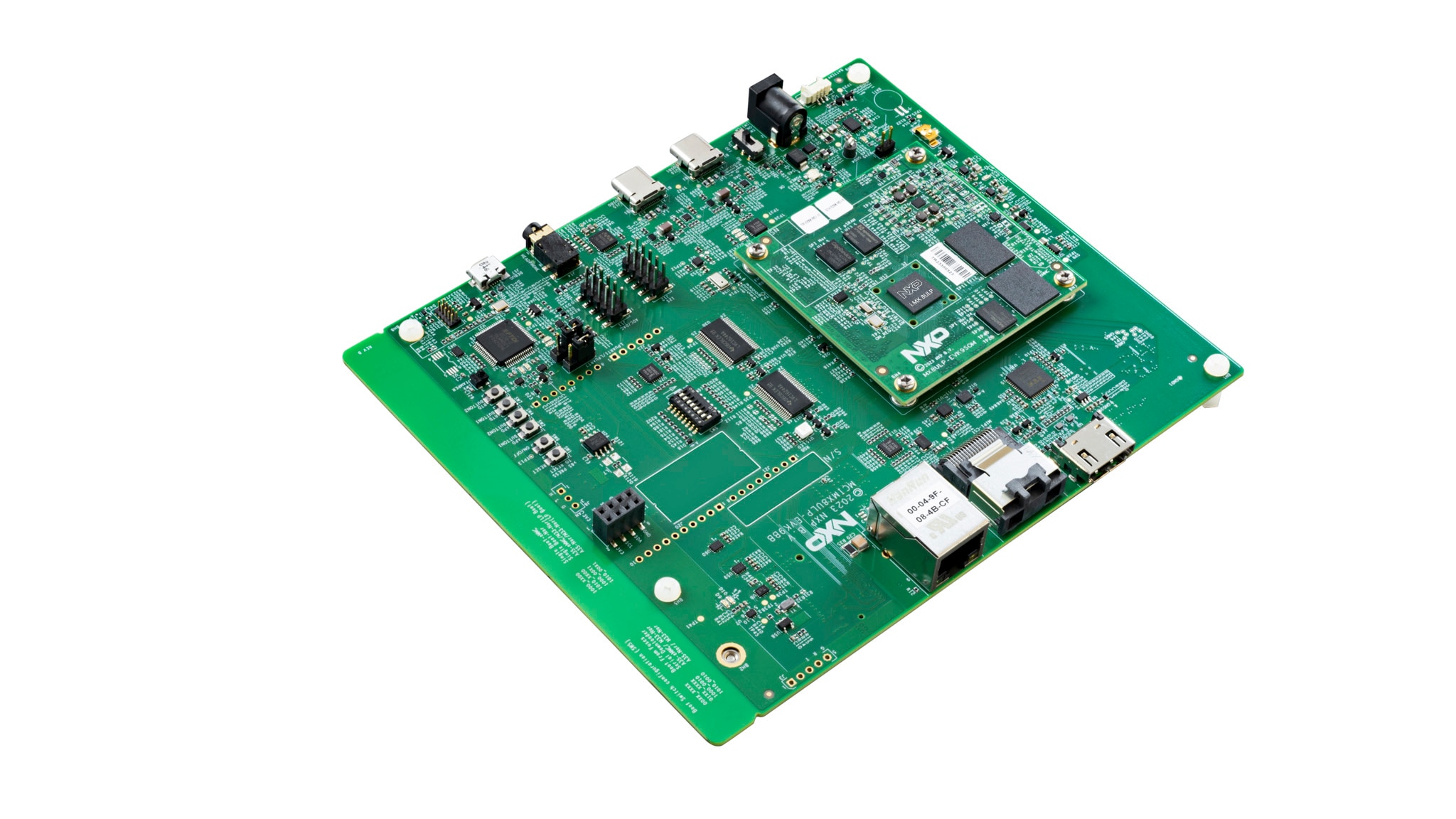

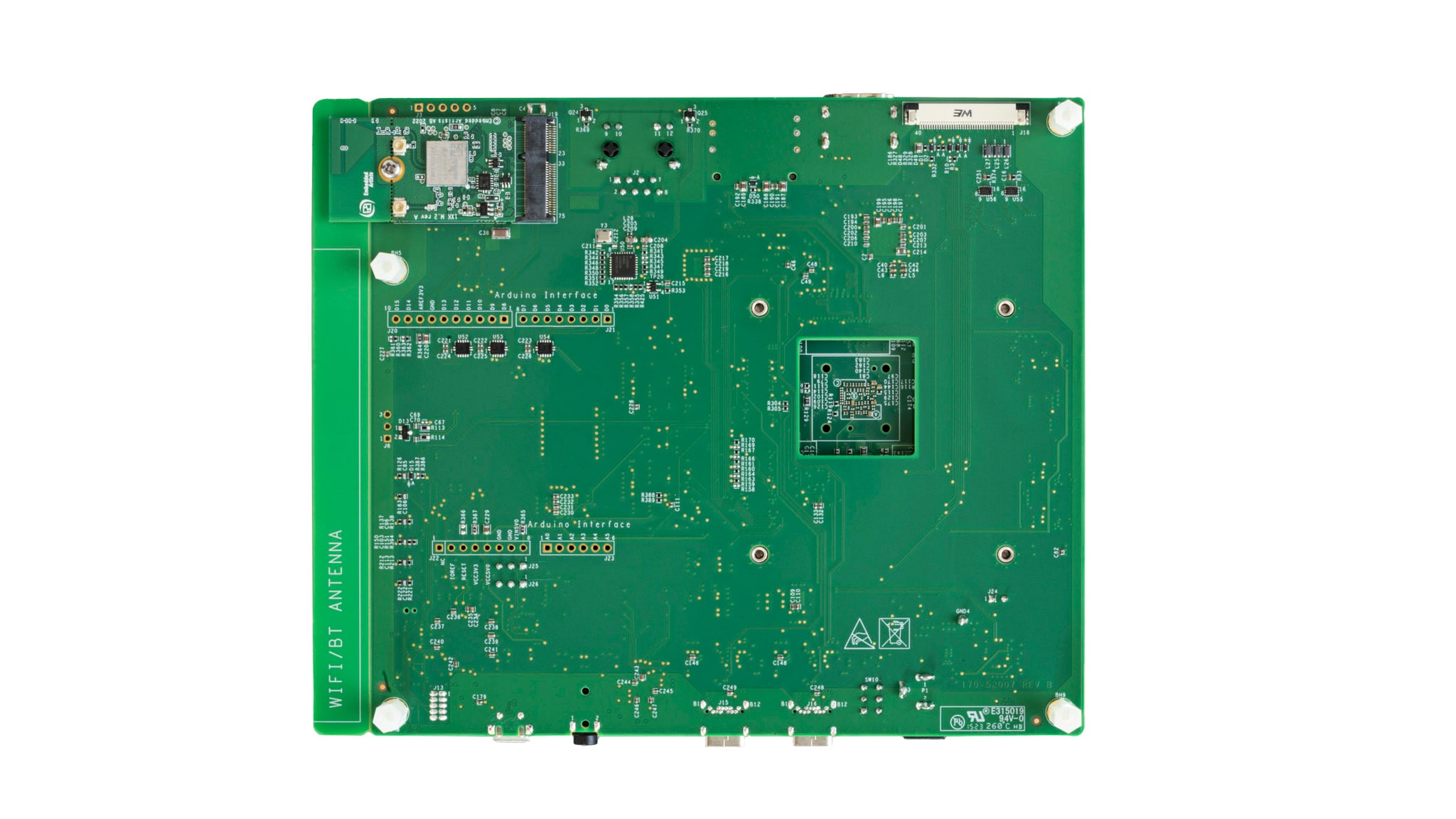

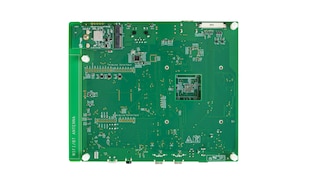

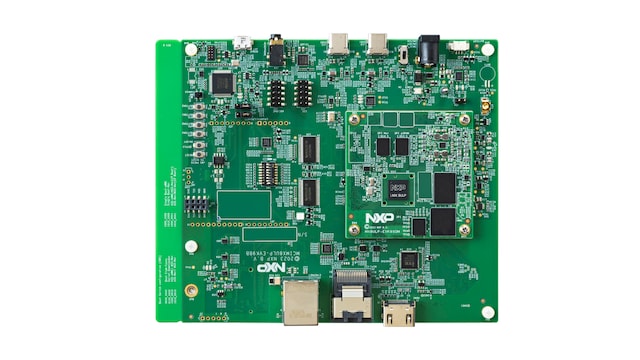

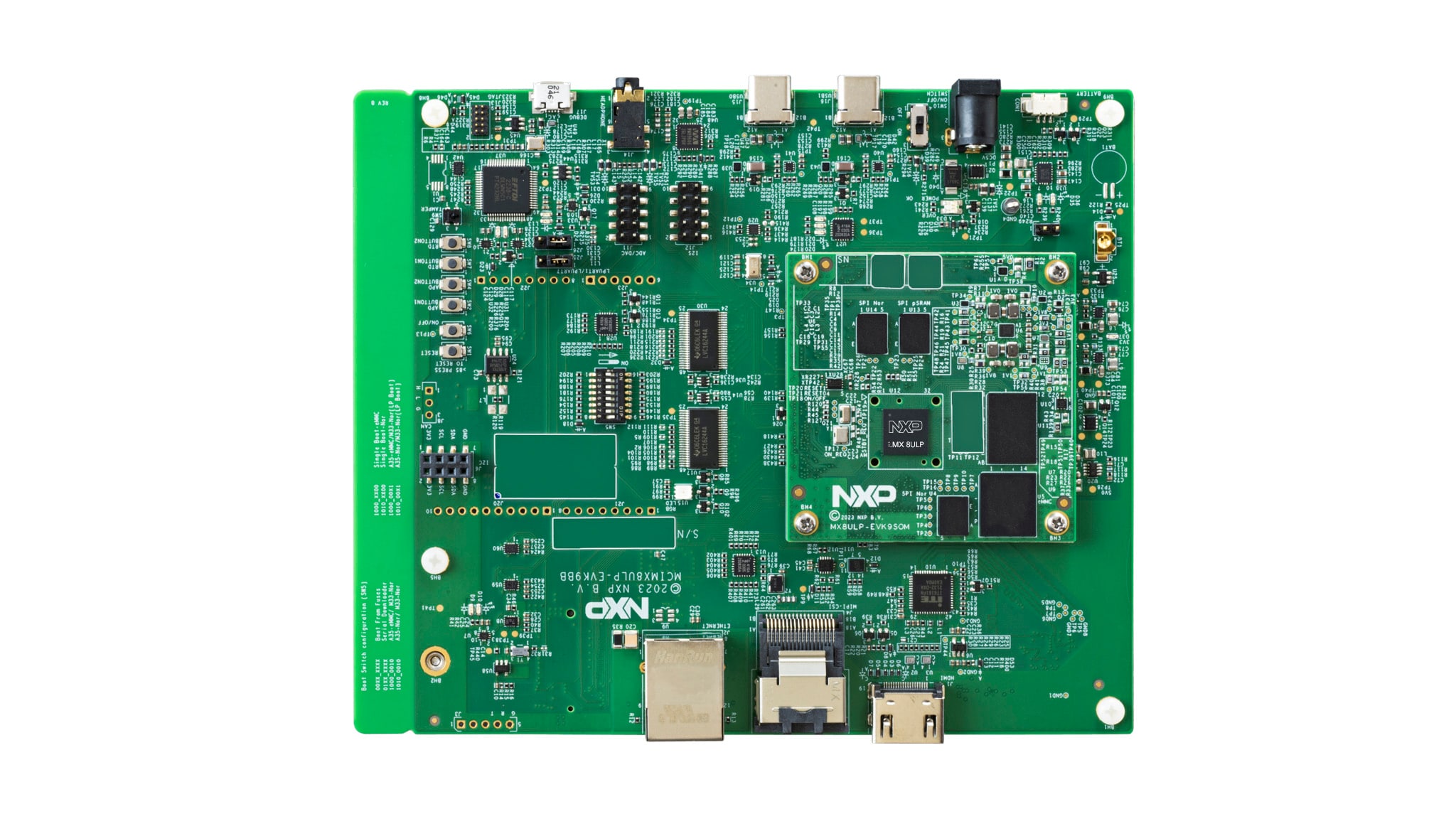

i.MX 8ULP EVK9套件提供了全面评估9.4x9.4mm i.MX 8ULP应用处理器的平台。

该双板解决方案包括计算模块（包含 i.MX 8ULP SoC(9.4x9.4mm)、LPDDR4、PMIC、八路SPI NOR闪存、八路SPI pSRAM和eMMC）和一个基板，提供评估产品所需的广泛连接。 该套件是加速您自己设计的绝佳起点。

支持的器件

处理器和微控制器

i.MX 8应用处理器

  • i.MX8ULP: i.MX 8ULP应用处理器系列

电源管理

PMIC

  • PCA9460: 面向超低功耗应用的13通道电源管理集成电路(PMIC)

无线连接

Wi-Fi® +蓝牙® + 802.15.4

  • IW416: 2.4/5GHz双频1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2解决方案

特性

处理器

  • i.MX 8ULP应用处理器
  • 双Cortex-A35@800MHz
  • Cortex-M33@216MHz
  • Cadence®Tensillica®Hifi 4 DSP@600MHz
  • Cadence®Tensilica®Fusion DSP@200MHz
  • EdgeLock®安全区域

存储器

  • 2GB LPDDR4
  • 32GB eMMC
  • 32MB Octal SPI Nor flash on RTD
  • 64MB Octal SPI Nor flash on APD
  • 8MB Octal-SPI pSRAM on RTD

电源管理

  • 恩智浦PCA9460A PMIC

显示器和摄像头接口

  • HDMI输出接头
  • MIPI-DSI接头
  • miniSAS MIPI-CSI接头

无线

  • 恩智浦IW416: Wi-Fi 1x1双频（2.4/5 GHz）和蓝牙5.2
  • 板载PCB天线Wi-Fi 4（802.11n）
  • 外部天线接头

音频

  • 3.5mm立体声音频耳机插孔
  • I2S扩展接头——J12

连接

  • 2个USB C 2.0接头
  • 1个10/100M以太网RJ45接头
  • CAN接头
  • ADC/DAC接头

调试

  • JTAG接头
  • 通过USB micro-B接头实现UART

传感器

  • 加速度传感器/陀螺仪
  • 精密压力传感器

安全性

  • 篡改检测开关

工具和操作系统支持

  • Linux®
  • Android®
  • FreeRTOS™

更多

购买选项

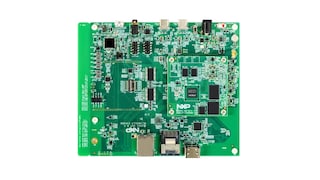

MCIMX8ULP-EVK9-Image

点击展开

  • MCIMX8ULP-EVK9
    正常供应

  • i.MX 8ULP Evaluation Kit (EVK9).

  • 套件包含：

    • 基于i.MX 8ULP 9.4x9.4封装的i.MX 8ULP CPU模块
    • 基板
    • 快速入门指南
    • 1根USB type-C转标准A型电缆
    • 1根USB micro-B转标准A型电缆
    • 电源
  • $550.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 18
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
RK055HDMIPI4MA0-Image

点击展开

  • RK055HDMIPI4MA0
    正常供应

  • 5.5" LCD Panel.

  • 5.5英寸720x1280 TFT LCD显示屏，带触敏叠加的2通道或4通道MIPI接口。

  • $90.85 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 10
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
MINISASTOCSI-Image

点击展开

  • $74.75 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 12
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
