14通道可配置的PMIC

MMPF0100
正常供应

滚动图片以放大

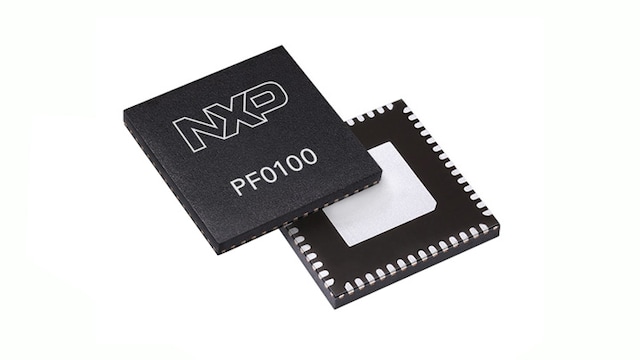

MMPF0100是PF系列PMIC的首款产品，包括以下特性：

  • 可配置和可编程的架构，支持各种额定电流的输出，为内核处理器、存储器和多种外设供电
  • 集成完备的系统级电源管理功能，简化了系统设计
  • 优化的性能架构为消费电子、工业控制和汽车应用带来高效、先进的功能

MMPF0100非常适合所有i.MX 6处理器：i.MX 6SoloX、i.MX 6SoloLite、i.MX 6Solo、i.MX 6DualLite、i.MX 6Dual、i.MX 6Quad、i.MX 6DualPlus和i.MX 6QuadPlus。它内置于i.MX 6系列的多个参考设计中，可提供平台级解决方案，加快产品上市速度。

框图

MMPF0100

MMPF0100 Block Diagram
获取框图PDF

特性

输入电源

  • PMIC输入电压范围：2.8-4.5V

电源

  • 4至6个降压稳压器，具体取决于配置
    • 可选择单相/两相/并联
    • DDR终端跟踪模式选项
    • DVS选项
  • 5V升压稳压器，用于USB OTG
  • 7个通用线性稳压器
  • 纽扣电池充电器和RTC电源
  • DDR终端参考电压
  • 电源控制逻辑，带处理器接口和事件检测
  • 输出电压、顺序和时序功能可编程

通信

  • I²C接口和输入控制

可配置性

  • 可单独编程的开、关和待机模式
  • OTP(一次性编程)存储器，用于器件配置
    • 在配置寄存器的熔断器熔断之前，可重新配置OTP功能
    • 最终用户可编程
  • 具有两种封装可选
    • E-Type QFN——8mmx8mm，56Ld
    • 可润湿侧翼QFN——8mmx8mm，56Ld
  • 可满足消费电子/工业和汽车行业的AEC-100等级3规格
  • 较高的照明负载效率
  • 面向i.MX6动态电压调节的软件支持

主要特性

  • 支持i.MX53、i.MX6D、i.MX6DL、i.MX6Q、i.MX 6QP、i.MX6S、i.MX6SL、i.MX6SLL和i.MX6SX MCU
  • 输出电流：4.5A

更多

购买/参数

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
