评估板 – 面向PF系列PMIC器件的OTP编程插槽

KITPF0100SKTEVBE
正常供应

滚动图片以放大

恩智浦KITPF0100SKTEVBE是带56引脚QFN插槽的接口工具，旨在让用户使用KITPFPGMEVME编程器为独立PF0x00部件中的PF0x00一次性可编程(OTP)寄存器编程。它适合用于在开发阶段对PF系列的PMIC进行OTP编程，以及在最终生产阶段进行小规模编程。

产品详情

支持的器件

电源管理

PMIC

特征

数据连接

  • 56针QFN插槽用于对独立器件进行OTP编程
  • 8针连接器接头，用于连接KITPFPGMEVME编程器

购买选项

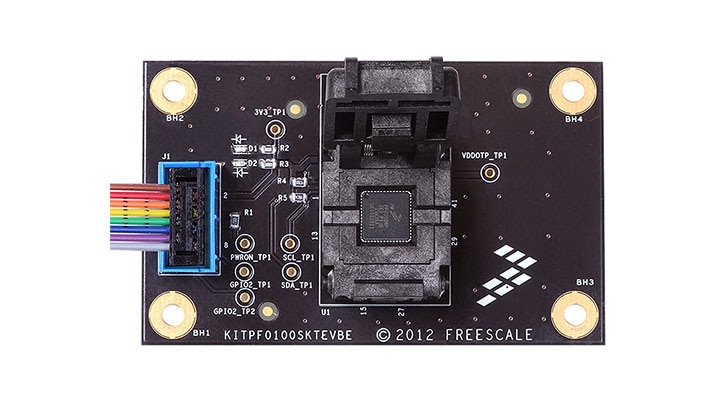

KITPF0100SKTEVBE-Image

点击展开

  • KITPF0100SKTEVBE
    正常供应

  • Evaluation Board - MMPF0100, OTP Programming Socket for the PF Family of PMIC Devices.

    • KITPF0100SKTEVBE硬件
    • 快速参考指南
  • $117.30 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
