PCA9450评估板

PCA9450-EVK 正常供应

滚动图片以放大

PCA9450是一款单芯片电源管理IC (PMIC)，专门支持i.MX 8M系列处理器。

该器件提供6个高效降压稳压器、5个LDO、1个400mA负载开关，两通道电平转换器和32.768KHz晶振驱动器。

PCA9450有三个版本：

  • PCA9450AA是i.MX 8M Mini的配套PMIC
  • PCA9450B是i.MX 8M Nano的配套PMIC
  • PCA9450C是i.MX 8M Plus的配套PMIC

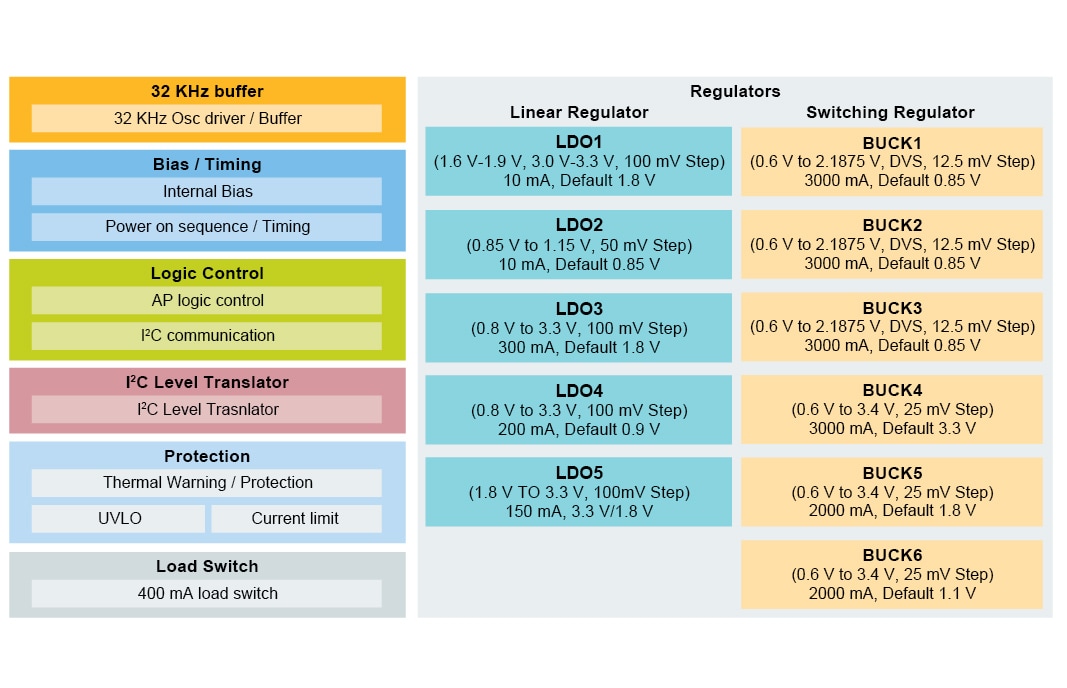

框图

PCA9450 Block Diagram
获取框图PDF

支持的器件

电源管理

PMIC

  • PCA9450: i.MX 8M Mini/Nano/Plus的电源管理IC(PMIC)

特性

主要特性

  • 6个高效降压稳压器
  • 5个线性稳压器
  • 400mA负载开关，带有源放电32.768kHz晶振缓冲输出电平转换器
  • 电源控制IO
  • Fm+ 1MHz I²C接口
  • 防静电保护
  • 7mmx7mm，56引脚HVQFN，间距0.4mm
  • 3个3A降压稳压器，具有DVS功能和遥测功能
  • PCA9450AA——3个3A降压稳压器
  • PCA9450B——两个3A降压稳压器
  • PCA9450C——双相可配置的6A降压稳压器
  • 1个3A降压稳压器
  • 两个2A降压稳压器

I²C转USB工具

  • FTDI C232HM-EDHSL-0

连接

  • I2C连接支持

所支持的MPU

  • PCA9450AA连接I.MX8M Mini
  • PCA9450B连接I.MX8M Nano
  • PCA9450C连接I.MX8M Plus

购买选项

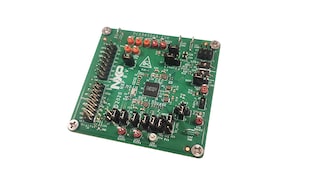

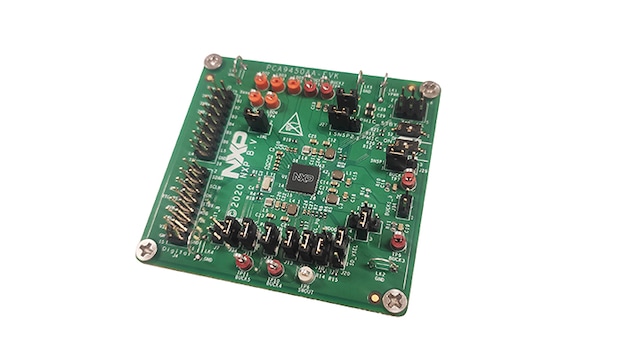

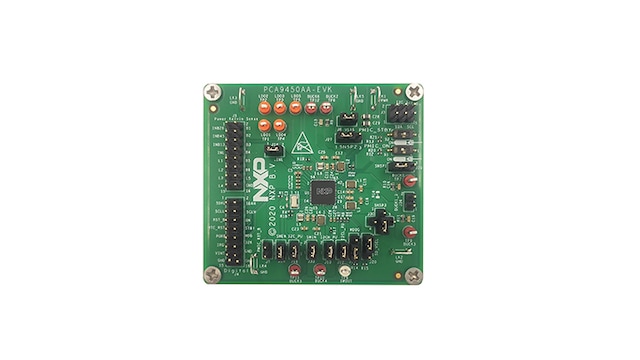

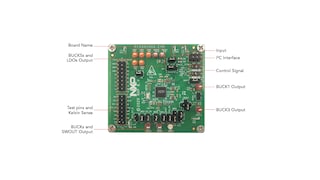

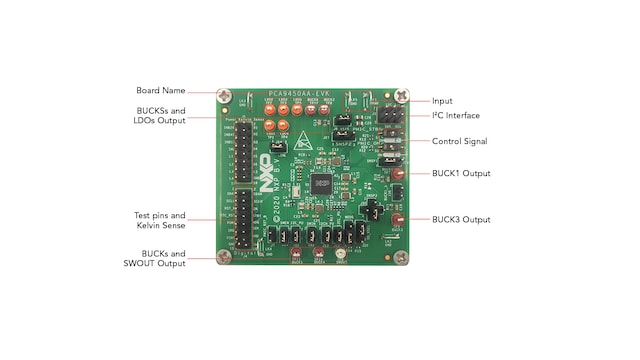

PCA9450AA-EVK-Image

点击展开

  • PCA9450AA-EVK
    正常供应

  • PCA9450 Evaluation Board.

  • 套件包含：

    • 完成组装和测试的PCA9450AA评估板，存放在防静电袋中
    • 用于I²C通信的USB到MPSSE串行电缆
    • 备用跳线
    • 螺钉和支架
  • $138.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 20
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买

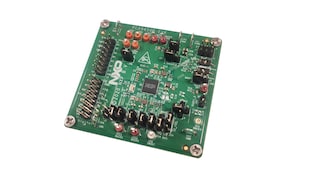

PCA9450B-EVK-Image

点击展开

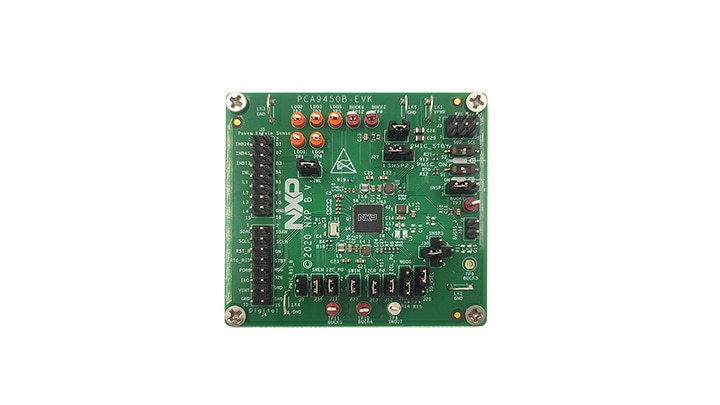

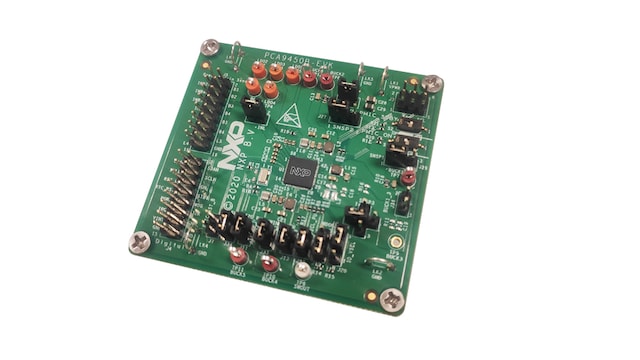

  • PCA9450B-EVK
    正常供应

  • PCA9450 Evaluation Board.

  • 套件包含：

    • PCA9450B评估硬件板
    • 用于I²C通信的USB到MPSSE串行电缆
    • 备用跳线
    • 螺钉和支架
  • $138.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 6
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买

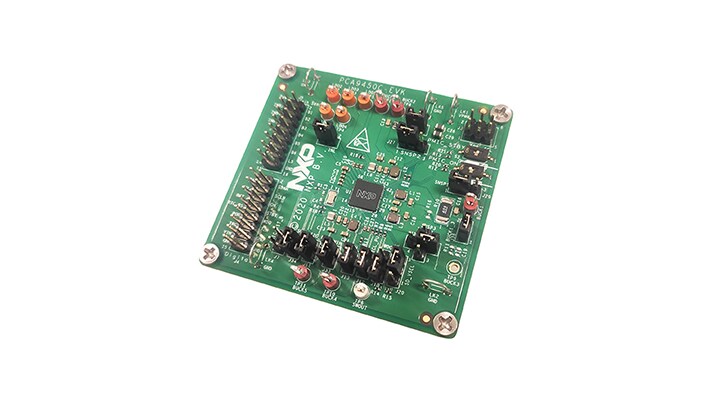

PCA9450C-EVK-Image

点击展开

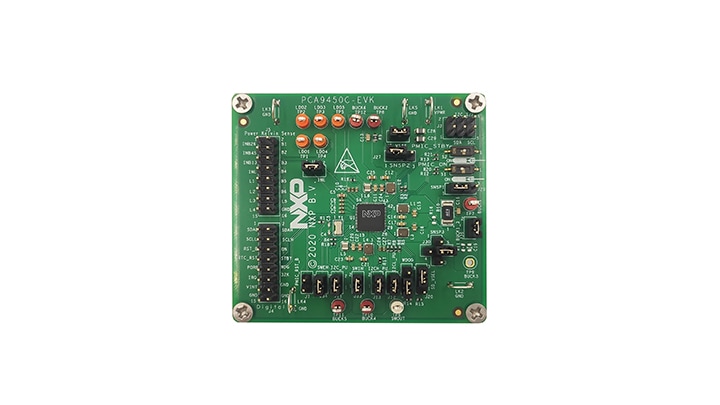

  • PCA9450C-EVK
    正常供应

  • PCA9450 Evaluation Board.

  • 套件包含：

    • PCA9450C评估硬件板
    • 用于I²C通信的USB到MPSSE串行电缆
    • 备用跳线
    • 螺钉和支架
  • $138.00 USD
  • 数量为 1
    • 供货情况: 现货
    • 库存: 5
    • 配送: 正常情况下 1-2个工作日内发货
加入购物车
从分销商处购买
