3相无刷电机预驱动器

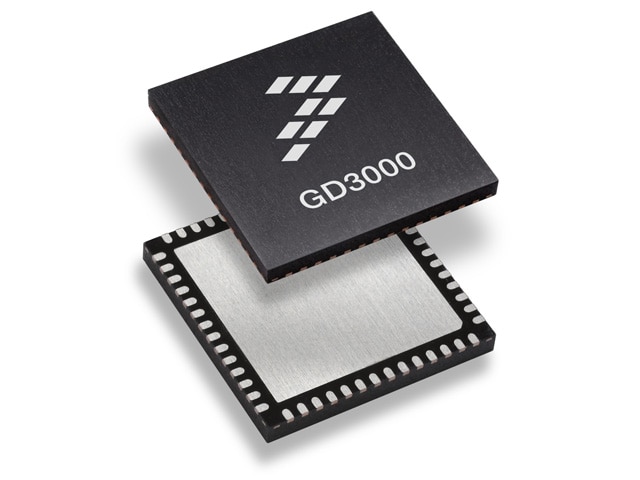

GD3000 正常供应

滚动图片以放大

GD3000是一款面向三相电机驱动应用的栅极驱动器IC，提供3个半桥驱动器，其中每个驱动器可驱动两个N沟道MOSFET。

  • 支持1A至2.5A的峰值电流
  • 可采用单电源运行，具有6V-60V宽电压范围，75V瞬态保护。
  • 采用自举栅极驱动器架构，具有涓流充电电路，支持100％占空比。
  • 当高边和低边MOSFET开关进行切换时，采用可编程的串扰保护，防止电流流动。
  • 高边和低边MOSFET开关内置了VDS传感功能，可保护外部功率模块避免出现过流情况。
  • 包括电流分流放大器，提供精确的电流测量，以检测相位误差。

IC通过6个直接输入控制信号、一个用于设备设置和异步复位的SPI端口以及使能和中断信号与MCU相连接。可接受5.0V和3.0V逻辑电平输入，并提供5.0V的逻辑电平输出。

框图

3相无刷电机预驱动器

GD3000 Block Diagram
获取框图PDF

特性

主要特性

  • 8V至40V范围内完全可设定，涵盖12V和24V汽车系统
  • 扩展电压范围为6V至60V，涵盖12V和48V系统
  • 栅极驱动能力大于1A，具有保护功能
  • 防止来自外部FET CGD和CGS的反向电荷注入
  • 包含一个电荷泵，能以低电池电压支持FET全面驱动
  • 可通过SPI端口设置死区时间
  • 通过安全的SPI命令实现同步输出功能
  • 温度范围：-40至+125°C，-20至105°C
  • 扩展工作电压范围：6V至60V
  • 可通过SPI端口设置较宽的死区时间范围(50ns至12μs)
  • 外部FET栅极驱动能力大于1A，具有保护功能
  • 电荷泵能够确保以较低的电源电压提供足够的外部FET驱动
  • 保护设备，防止来自外部FET CGD和CGS的反向电荷注入
  • 内置过流、欠流和相位故障检测功能
  • 可耐受栅极驱动器上的正、负瞬态峰值电压
  • 死区时间控制中内置电流击穿保护
  • 支持3.3V和5V逻辑电平直接接入MCU
  • 集成的电流感测放大器
  • 通过SPI进行设备配置和诊断
  • 并行SPI接口及输入控制器

购买/参数

2 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

AEC-Q100 Temperature Range

SafeAssure 功能安全

器件功能

Load Current (IL) [TYP] (A)

通道数

Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON))

Full-bridge RDS(on) (Typ) (Ohm)

负载电源电压（最小）（V）

负载电源电压（最大）（V）

电源电压[最小]（V）

电源电压[最大]（V）

接口和输入控制

Ambient Operating Temperature (Min to Max) (℃)

MC33GD3000EP
数据手册

正常供应

HVQFN56

56

1K @ CNY12.92

grade 1

No

3 phase, brushless DC motor, gate driver, powertrain control

2

6

—

0

6

60

8

40

Parallel / Parallel, SPI / SPI

-40 to 125

MC34GD3000EP
数据手册

正常供应

HVQFN56

56

1K @ CNY12.21

—

No

3 phase, gate driver

2

6

5.5

0

6

60

8

40

Parallel / Parallel, SPI / SPI

-20 to 105
