H桥有刷直流电机驱动器, 5-28V, 5A, 10kHz

MC33887
正常供应

恩智浦®MC33887是一款单片H桥功率集成电路，具有负载电流反馈功能，非常适用于闭环直流电机控制

  • 此IC集成了内部控制逻辑、电荷泵、栅极驱动和低导通电阻MOSFET输出电路
  • 能够控制电感负载，连续DC负载电流可达5.0A，峰值电流有效控制在5.2A到7.8A之间。
  • 输出负载支持10kHz脉宽调制频，状态标志输出能检测并报告欠压、过热和过流条件
  • 负载电流反馈功能提供一个等比例的恒定电流输出，适用于监测MCU的A/D输入，这有利于闭环扭矩/转速控制设计以及开路负载检测

产品详情

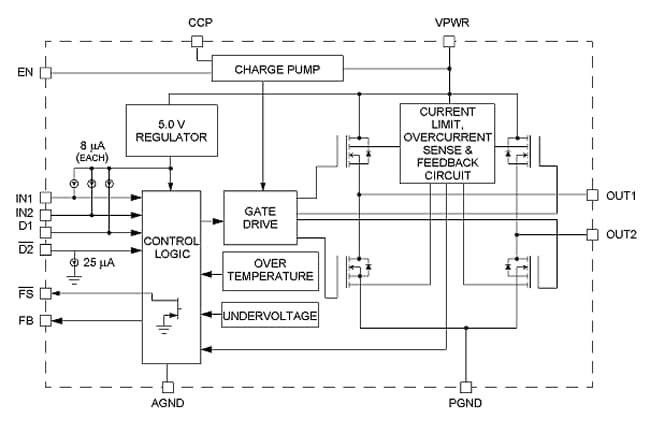

框图

恩智浦MC33887电源启动

NXP MC33887 Internal Block Diagram
获取框图PDF

特性

主要特性

  • 工作电压范围为5.0V至28V，完全可设置
  • 操作受限时性能降至40V
  • 120mΩ导通电阻（典型值）H桥MOSFET
  • TTL/CMOS兼容输入
  • PWM频率高达10kHz
  • 主动电流限制(调节)
  • 故障状态报告
  • 睡眠模式电流消耗≤50μA(输入浮动或设置为匹配默认逻辑状态)
  • 通过两个独立的输入进行极性控制
  • 通过两个禁用输入呈现高阻抗
  • 负载电源电压最小值5V，最大值28V
  • 并行接口和输入控制
  • 工作环境温度为–40至125°C

产品长期供货计划

购买/参数

3 结果

包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

AEC-Q100 Temperature Range

SafeAssure 功能安全

器件功能

Load Current (IL) [TYP] (A)

通道数

Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON))

Full-bridge RDS(on) (Typ) (Ohm)

负载电源电压（最小）（V）

负载电源电压（最大）（V）

电源电压[最小]（V）

电源电压[最大]（V）

接口和输入控制

Ambient Operating Temperature (Min to Max) (℃)

MC33887APVW
数据手册

替换部件: MC33HB2000AES

正常供应

HSOP20

20

1K @ CNY39.78

grade 1

No

H-bridge

5

2

0.12

0.24

5

28

5

40

Parallel / Parallel

-40 to 125

MC33887PEK
数据手册

正常供应

HSOP54

54

1K @ CNY17.73

grade 1

No

H-bridge

5

2

0.12

0.24

5

28

5

40

Parallel / Parallel

-40 to 125

MC33887PFK
数据手册

正常供应

HQFN32

32

1K @ CNY20.18

grade 1

No

H-bridge

5

2

0.12

0.24

5

28

5

40

Parallel / Parallel

-40 to 125
