H桥有刷直流电机驱动器, 5-28V, 5A, 10 kHz

MC33886
正常供应

恩智浦®MC33886是一款单片式电源IC，将控制逻辑、电荷泵、栅极驱动以及低导通电阻MOSFET输出H桥电路集成到一个小型表面贴装封装中。

  • IC包括6个集成低边驱动器，3个预驱动器，一个VSR(可变磁阻传感器)输入电路，一个采用外部传输晶体管的前置稳压器，以及两个5.0V内部稳压器，其中一个用于MCU VCC供电，另一个用作受保护的传感器电源
  • 电流驱动器可以在高达10 kHz的频率上进行脉宽调制(PWM)
  • 状态标志输出能检测并报告欠压、过热和过流条件
  • 典型应用包括：DC电机单导梯形螺纹执行器，伺服齿轮执行器，双向推力电磁和小马力电机控制

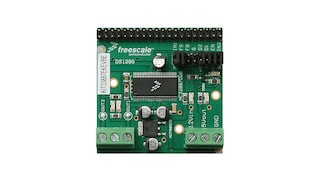

  • 推荐KIT33887EKEVBE作为MC33886的评估板

产品详情

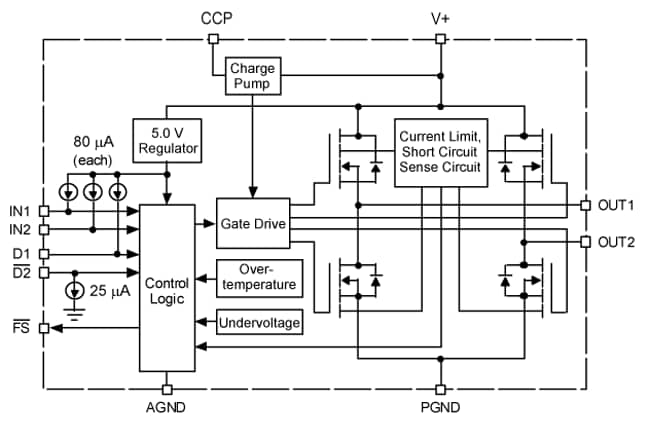

框图

H桥有刷直流电机驱动器，5-28V，5A，10kHz

H-Bridge, Brushed DC Motor Driver, 5-28V, 5A, 10kHz
获取框图PDF

特性

主要特性

  • 最小5.2A的连续DC负载电流
  • PWM电流调整时输出电流限制最小值为5.2A
  • 输出电流超过8A时短路关闭
  • 兼容逻辑输入TTL/CMOS
  • 高达10kHz的工作频率
  • 过热及短路保护
  • 欠压禁用功能
  • 通过两个独立的输入(前进，后退，自由低/高)进行输出控制
  • 提供两种禁用输入：Low =True和High =True
  • 负载电源电压最小值0V，最大值30V
  • 并行接口和输入控制
  • 工作环境温度为–40至125°C
