SPI生成器(SPIGen)软件

SPIGEN

滚动图片以放大

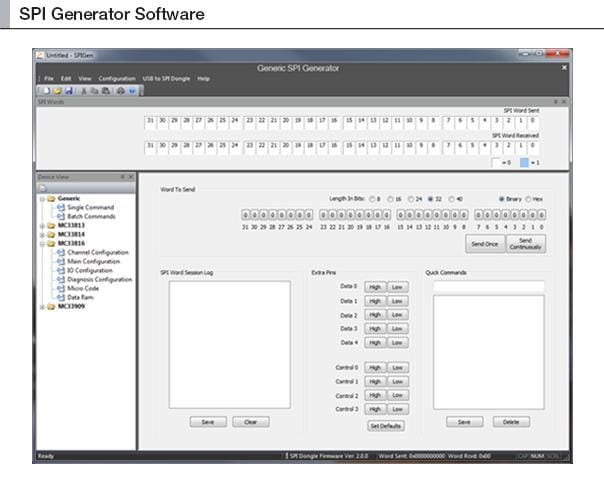

SPIGen是一个完全可定制的SPI生成器软件包，可轻松应用于广泛的SPI协议规范。它支持恩智浦USB SPI dongle/接口。SPIGen v7可以安装到任何基于Windows 7®、Windows 8®或Windows 10®的操作系统，它通过 USB SPI Dongle/接口硬件，使用电脑USB端口与测试硬件相连接

了解各个配置文件，请参考所购套件的汇总页。

如需了解兼容SPIGen的产品，请访问模拟工具箱。

软件详情

特征

  • SPIGen V7 - 与Windows 7、Windows 8和Windows 10兼容
  • SPIGen 5.0.8 - 只兼容Windows XP
  • 1至40位可变字尺规格
  • SPI命令能以二进制或十六进制格式查看
  • 能按名称保存常用SPI命令
  • 一次点击可发送多批SPI 命令
  • 一个会话日志记录所有已发送和接收的消息
  • 能够控制9个额外的非SPI引脚 (数字输出)
  • 可将非SPI引脚转换添加到批处理中
  • SPI最大时钟频率为12.0 MHz (采用KL25Z Freedom Board USB SPI Dongle)

支持的器件

下载

快速参考恩智浦 软件类型.
筛选条件

2 下载

注意: 推荐在电脑端下载软件，体验更佳。

Y true 0 SSPSPIGENzh 2 用户指南 User Guide t792 2 zh 0 false zh zh 用户指南 User Guide 2 1 1.0 English The USB to SPI device driver allows the USB to SPI Dongle to communicate with the SPIGen program. SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, and Microsoft Windows 7. 1351798867199700753984 SSP 248.4 KB None None documents None 1351798867199700753984 /docs/en/user-guide/KTUSBSPIDRVUG.pdf 248365 /docs/en/user-guide/KTUSBSPIDRVUG.pdf KTUSBSPIDRVUG documents N N 2012-11-01 KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide /docs/en/user-guide/KTUSBSPIDRVUG.pdf /docs/en/user-guide/KTUSBSPIDRVUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Oct 10, 2012 132339537837198660 User Guide Y N KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide 2 1.0 English SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, Microsoft Windows 7 and Microsoft Windows 8. SPIGen uses the USB port of your computer and the USB SPI Dongle (P/N: KITUSBSPIDGLEVME) to interface with an evaluation board (EVB) or any other test platform. 1361823750351703475948 SSP 932.0 KB None None documents None 1361823750351703475948 /docs/en/user-guide/KTSPIGEN7UG.pdf 931985 /docs/en/user-guide/KTSPIGEN7UG.pdf KTSPIGEN7UG documents N N 2013-02-28 KTSPIGEN7UG - User Guide /docs/en/user-guide/KTSPIGEN7UG.pdf /docs/en/user-guide/KTSPIGEN7UG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Oct 2, 2012 132339537837198660 User Guide Y N KTSPIGEN7UG - User Guide false 0 SPIGEN downloads zh-Hans true 1 Y SSP 用户指南 2 /docs/en/user-guide/KTUSBSPIDRVUG.pdf 2012-11-01 1351798867199700753984 SSP 1 Oct 10, 2012 User Guide The USB to SPI device driver allows the USB to SPI Dongle to communicate with the SPIGen program. SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, and Microsoft Windows 7. None /docs/en/user-guide/KTUSBSPIDRVUG.pdf English documents 248365 None 132339537837198660 2022-12-07 N /docs/en/user-guide/KTUSBSPIDRVUG.pdf KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide /docs/en/user-guide/KTUSBSPIDRVUG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.0 N N KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide 248.4 KB KTUSBSPIDRVUG N 1351798867199700753984 /docs/en/user-guide/KTSPIGEN7UG.pdf 2013-02-28 1361823750351703475948 SSP 2 Oct 2, 2012 User Guide SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, Microsoft Windows 7 and Microsoft Windows 8. SPIGen uses the USB port of your computer and the USB SPI Dongle (P/N: KITUSBSPIDGLEVME) to interface with an evaluation board (EVB) or any other test platform. None /docs/en/user-guide/KTSPIGEN7UG.pdf English documents 931985 None 132339537837198660 2023-06-19 N /docs/en/user-guide/KTSPIGEN7UG.pdf KTSPIGEN7UG - User Guide /docs/en/user-guide/KTSPIGEN7UG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.0 N N KTSPIGEN7UG - User Guide 932.0 KB KTSPIGEN7UG N 1361823750351703475948 true Y Softwares
