MC34931/S H桥有刷直流电机驱动器, 5-36V, 5A, 11kHz/20kHz

MC34931
正常供应

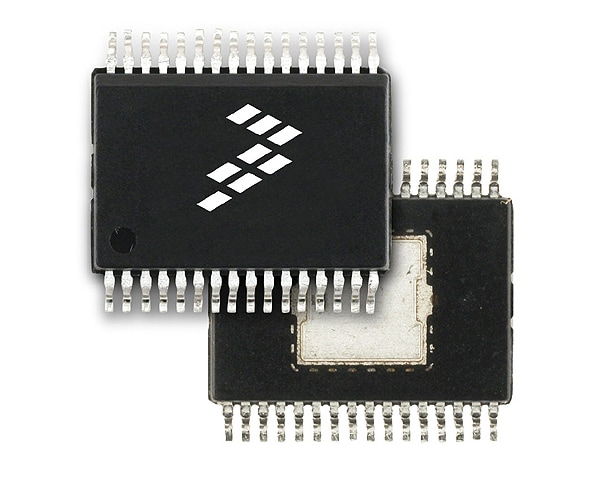

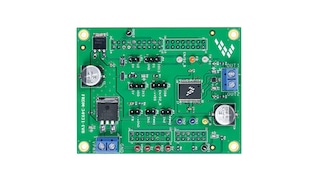

滚动图片以放大

恩智浦MC34931是一个单片式高散热效率的36V/5A H桥直流电机驱动器。

  • 具备实时负载电流监测和自动热关断功能，能够确保高可用性，适用于要求严苛的大电流、高温工业控制应用
  • 主要用于DC有刷和伺服电机驱动器应用，电流和电压在产品规格所规定的限制范围内
  • 采用SMARTMOS®技术
  • 面向中压H桥产品的Processor Expert®组件能够帮助您快速完成嵌入式应用的开发。

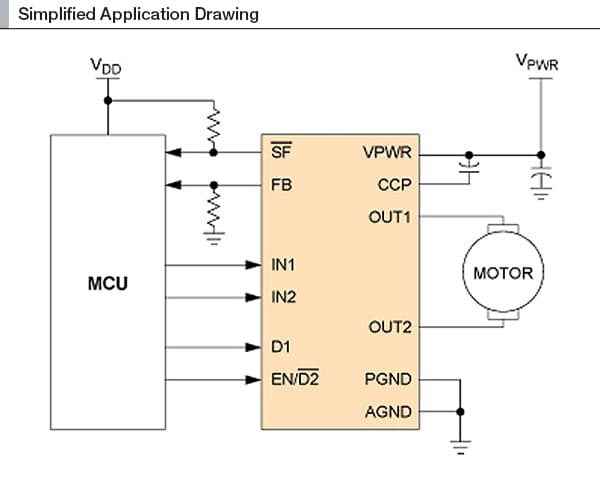

框图

MC34931/S H桥

NXP<sup>&#174;</sup> MC34931 Internal Block Diagram
获取框图PDF

特性

主要特性

  • 散热性：eSOIC封装的热抗阻降低了2倍多，可节省板空间并简化设计
  • 自动热关断功能：温度调节和峰值电流限制功能可确保连续运行及高可用性
  • 实时负载电流监测：用于电机控制或负载保护的模拟回馈电流镜功能
  • 简洁的设计：集成式H桥，带电荷泵、控制、保护和4个MOSFET
  • 高性能：120mΩ典型导通电阻
  • 负载电源电压5V至36V连续工作，42V瞬态电压
  • 高达5A的工作电流，适用于广泛的应用。
  • 兼容3V和5V TTL/CMOS
  • 状态标志输出报告欠压、过流和过温故障情况
  • 输出短路保护(短接至VPWR或GND)
  • 睡眠模式电流消耗<20μA
  • 并行接口和输入控制
  • 工作环境温度：–40°C(最低)至85°C(最高)

购买/参数

1 结果

包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

SafeAssure 功能安全

器件功能

Load Current (IL) [TYP] (A)

通道数

Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON))

Full-bridge RDS(on) (Typ) (Ohm)

负载电源电压（最小）（V）

负载电源电压（最大）（V）

电源电压[最小]（V）

电源电压[最大]（V）

接口和输入控制

Ambient Operating Temperature (Min to Max) (℃)

MC34931EK
数据手册

正常供应

HSOP32

32

1K @ CNY12.78

No

H-bridge

5

2

0.12

0.24

5

36

5

40

Parallel / Parallel

-40 to 85
