3相场效应晶体管预驱动器

MC34937
正常供应

滚动图片以放大

恩智浦®MC34937A是一款场效应晶体管(FET)预驱动器，专为3相电机控制和类似应用而设计。

  • 该集成电路(IC)采用SMARTMOS®技术
  • 该IC包含3个高边FET预驱动器和3个低边FET预驱动器
  • 3个外部自举电容可为高边FET提供栅极电荷
  • 该IC通过6个直接输入控制信号、1个用于器件设置和故障检测的SPI端口、1个异步复位、1个中断信号和两个使能信号与MCU相连接
  • 可接受5 V和3 V逻辑电平输入，并提供5 V的逻辑电平输出

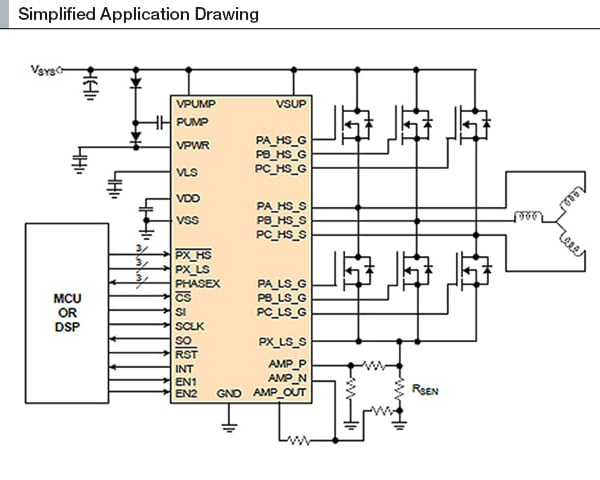

框图

恩智浦MC34937内部框图

NXP MC34937 Internal Block Diagram
获取框图PDF

特性

系统特性

  • 工作电压范围广：6至58V
  • 可通过SPI端口设置较宽的死区时间范围(50ns至12μs)
  • 外部FET栅极驱动能力大于1.0A，具有保护功能
  • 电荷泵能够确保以较低的电源电压提供足够的外部FET驱动
  • 保护设备，防止来自外部FET CGD和CGS的反向电荷注入
  • 内置过流、欠流和相位故障检测功能
  • 可耐受栅极驱动器上的正、负瞬态峰值电压
  • 死区时间控制中内置电流击穿保护
  • 支持3.3V和5V逻辑电平直接接入MCU
  • 集成的电流传感放大器
  • 通过SPI进行设备配置和诊断
  • 并行SPI接口和输入控制
  • 负载电流（IL）1A（典型值）
  • 6个通道
  • 漏源导通电阻：0，5500 mOhm RDS(ON)（典型值）

购买/参数

1 结果

包含 0 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

器件功能

预算报价（不含税）

封装端接数

封装类型

Load Current (IL) [TYP] (A)

通道数

Drain-to-Source On Resistance (Typ) (mOhm) (RDS(ON))

负载电源电压（最小）（V）

负载电源电压（最大）（V）

电源电压[最小]（V）

电源电压[最大]（V）

接口和输入控制

Ambient Operating Temperature (Min to Max) (℃)

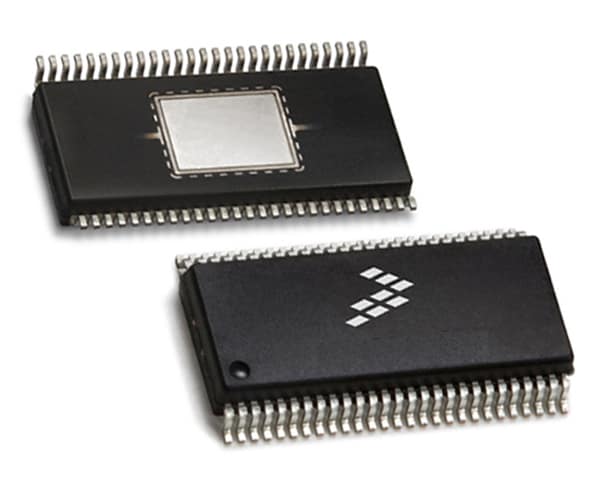

MC34937APEK
数据手册

正常供应

3 phase, gate driver

1K @ CNY19.31

54

HSOP54

1

6

0, 5500

6

58

8

40

Parallel / Parallel, SPI / SPI

-40 to 125
