H桥, 电机驱动器, 2.7-5.5V, 0.8A, 200kHz

MPC17C724 使用寿命终止
  • 建议不要在新设计中使用本页介绍的产品。

滚动图片以放大

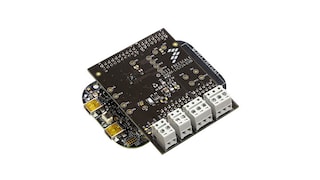

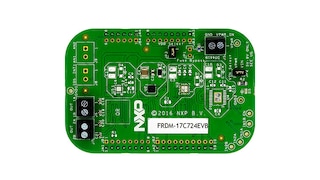

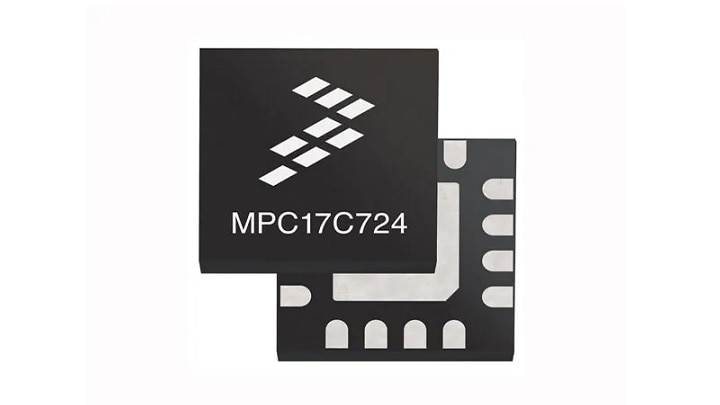

恩智浦®MPC17C724是一款紧凑型单片式双通道H桥电源IC，是照相机镜头和快门等包含双极步进电机或有刷直流电机的便携式电子应用的理想选择。

  • 可在2.7V- 5.5V电源电压下高效工作。RDS(ON)低至1.0 Ω，可持续提供0.4 A的电机驱动电流。
  • 可通过兼容3.0V或5.0V逻辑的并行接口与低成本MCU连接
  • 内置直通电流保护电路和欠压检测器，以避免出现故障
  • H桥输出可以200 kHz的频率进行独立的脉宽调制(PWM)，实现速度/扭矩和电流控制

产品详情

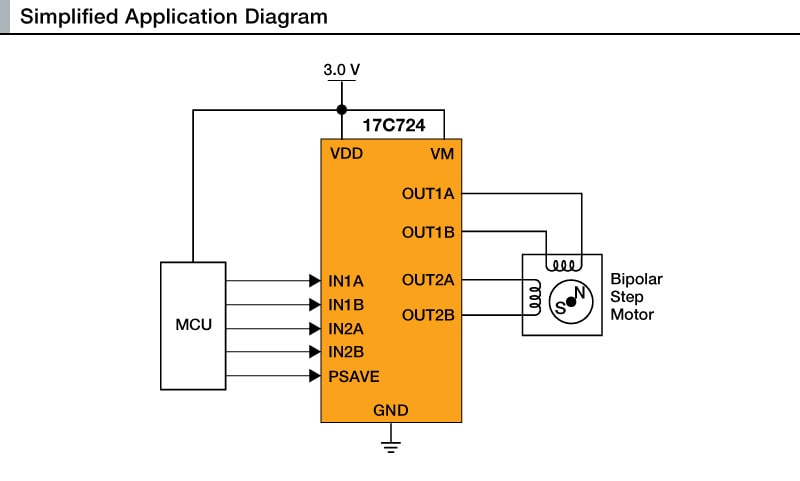

框图

H桥有刷直流/步进电机驱动器，2.7-5.5V，0.8A，200kHz

获取框图PDF

特性

基本信息

  • 内置双通道H桥驱动器
  • 提供4种驱动模式(向前、向后、制动、高阻抗)
  • 直接接口连接至MCU
  • 导通电阻低，导通电阻 = 1.0 Ω (典型值)
  • 双通道并行驱动器，导通电阻 = 0.5Ω (典型值)
  • 输出电流驱动器(IDR)为400 mA (连续)
  • 低功耗
  • 内置直通电流的预防电路
  • 内置低压关断电路
  • 200 kHz PWM控制频率(最大)
  • 紧凑型，16端子QFN封装（3x3mm，端子间距：0.5mm）
  • 并行接口和输入控制
  • 环境工作温度：–20 °C（最低），85 °C（最高）
  • 负载电源电压：3V（最小值），5.5 V（最大值）

购买/参数

1 结果

不包含 1 不推荐用于新设计

部件

展开描述

订购

计算机辅助设计模型

状态

封装类型

封装端接数

预算报价（不含税）

器件功能

Load Current (IL) [TYP] (A)

通道数

Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON))

Full-bridge RDS(on) (Typ) (Ohm)

负载电源电压（最小）（V）

负载电源电压（最大）（V）

电源电压[最小]（V）

电源电压[最大]（V）

接口和输入控制

Ambient Operating Temperature (Min to Max) (℃)

MPC17C724EP
数据手册

使用寿命终止

HVQFN16

16

1K @ CNY4.67

H-bridge stepper, dual H-bridge

0.4

4

1

2

2.7

5.5

2.7

5.5

Parallel / Parallel

-20 to 85
