SPI可编程的H桥有刷直流电机驱动器

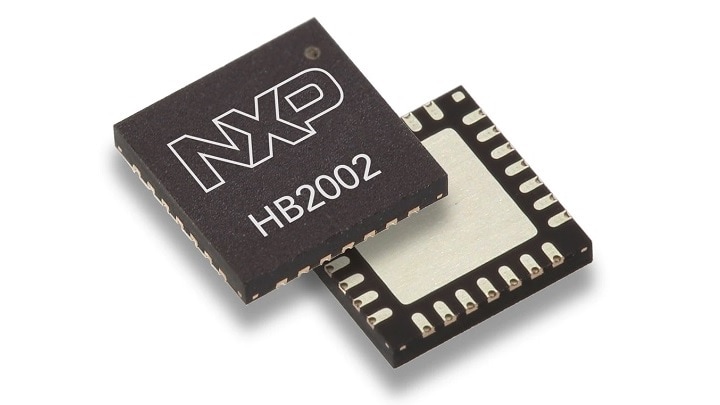

HB2002
正常供应

滚动图片以放大

HB2002不仅能满足汽车和工业领域对电机控制应用的不断变化的需求，还提供未来安全关键型解决方案所需的高效而稳定可靠的性能。

  • 安全和保护：采用ISO 26262流程、支持ASIL C级和D级体系认证的H桥电机驱动器。
  • 可扩展性：SPI可编程的电流限制、压摆率、故障报告和控制方案使同一IC能服务于各种应用和电机尺寸。
  • 热管理：集成功率MOSFET有与温度有关的电流限制折返，可降低功率、防止器件过热。

框图

HB2002：SPI可编程的H桥有刷直流电机驱动器

HB2002 Block Diagram
获取框图PDF

特性

主要特性

  • 通过SPI提供先进的诊断和故障报告
  • 实时电流反馈精度(5%)
  • 低导通电阻集成MOSFET：每器件最大235mΩ (TJ = 150°C)
  • 高热效率的QFN封装：RΘJC <1.0 °C/W
  • 宽工作电压范围：5V至28V，40V瞬态
  • 通过SPI提供8个压摆率选项： 0.25至>16V/µs
  • 通过SPI提供4个电流限值选项：5.4/7.0/8.8/10.7A
  • 可配置为全桥或半桥模式
  • 负载电源电压最小值5V，最大值28V
  • 工作环境温度为–40至125°C
  • 并行和SPI接口及输入控制器
